Coolant Temperature Sensor / Switch HVAC: Testing and Inspection

ENGINE COOLANT TEMPERATURE CUT SWITCH INSPECTION










INSPECT SWITCH CONTINUITY

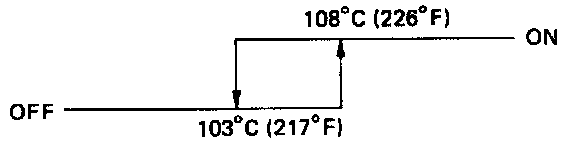

Check the continuity between terminals of the switch. as shown in the chart.

If continuity is not as specified, replace the switch.
