Instrument Panel and Center Console

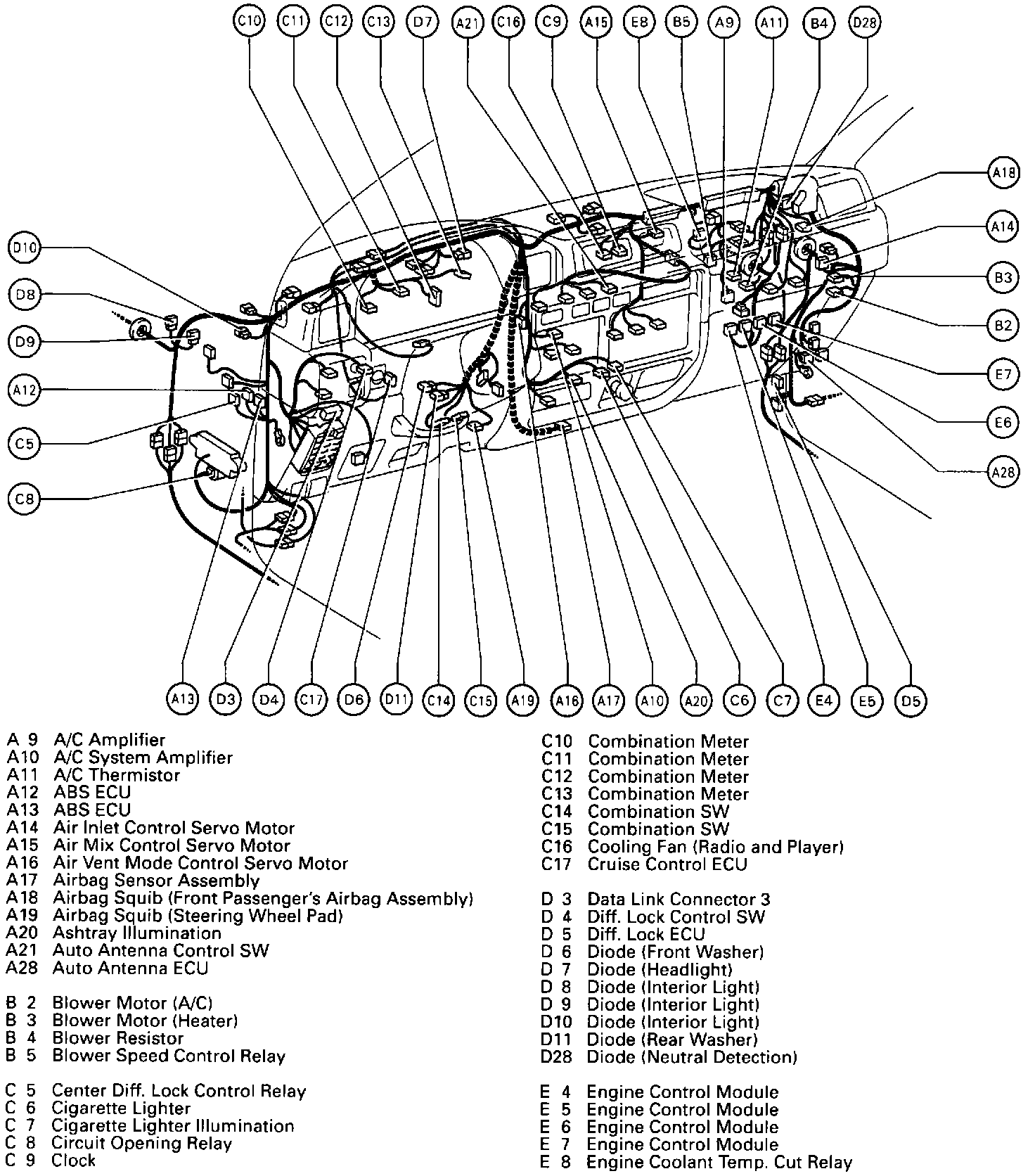

Position Of Parts In Instrument Panel (Part 1 Of 2) (Fig 24):

Position Of Parts In Instrument Panel (Part 2 Of 2) (Fig 25):

A 9 A/C Amplifier
A10 A/C System Amplifier
A11 A/C Thermistor
A12 ABS ECU
A13 ABS ECU
A14 Air Inlet Servo Motor
A15 Air Mix Control Servo Motor
A16 Air Vent Mode Control Servo Motor
A17 Airbag Sensor Assembly
A18 Airbag Squib (Front Passenger's Airbag Assembly)
A19 Airbag Squib (Steering Wheel Pad)
A20 Ashtray Illumination
A21 Auto Antenna Control SW
A28 Auto Antenna ECU

B 2 Blower Motor (A/C)
B 3 Blower Motor (Heater)
B 4 Blower Resistor
B 5 Blower Speed Control Relay

C 5 Center Diff. Lock Control Relay
C 6 Cigarette Lighter
C 7 Cigarette Lighter Illumination
C 8 Circuit Opening Relay
C 9 Clock
C10 Combination Meter
C11 Combination Meter
C12 Combination Meter
C13 Combination Meter
C14 Combination SW
C15 Combination SW
C16 Cooling Fan (Radio and Player)
C17 Cruise Control ECU

D 3 Data Link Connector 3
D 4 Diff. Lock Control SW
D 5 Diff. Lock ECU
D 6 Diode (Front Washer)
D 7 Diode (Headlight)
D 8 Diode (Interior Light)
D 9 Diode (Interior Light)
D10 Diode (Interior Light)
D11 Diode (Rear Washer)
D28 Diode (Neutral Detection)

E 4 Engine Control Module
E 5 Engine Control Module
E 6 Engine Control Module
E 7 Engine Control Module
E 8 Engine Coolant Temp. Cut Relay

F 9 Front Speaker LH
F10 Front Speaker RH
F11 Fuse Block

G 3 Glove Box Light
G 4 Glove Box Light SW

H 9 Hazard SW
H10 Heater Control SW and A/C SW
H11 Heater Control SW and A/C SW

I10 Ignition Key Cylinder Light
I11 Ignition Key Cylinder Light Relay
I12 Ignition SW, Unlock Warning SW and Key Interlock Solenoid

J 1 Junction Connector
J 2 Junction Connector
J 3 Junction Connector
J 4 Junction Connector
J 5 Junction Connector
J 6 Junction Connector
J 7 Junction Connector
J 8 Junction Connector
J 9 Junction Connector

L 1 Light Retainer Relay

R 1 Radio and Player
R 2 Radio and Player
R 3 Radio and Player
R 4 Rear Heater SW
R 5 Rear Window Defogger SW
R 6 Remote Control Mirror SW
R 7 Rheostat

S 3 Seat Belt Warning Relay
S 4 Short Connector (SRS)
S 5 Short Connector (SRS)
S 6 Short Connector (SRS)
S 7 Short Connector (SRS)
S 8 Short Pin (A/C)
S 9 Short Pin (A/C)
S10 Short Pin (Center Diff. Lock)
S11 Stereo Component Amplifier
S12 Stereo Component Amplifier
S13 Stop Light SW
