Rear

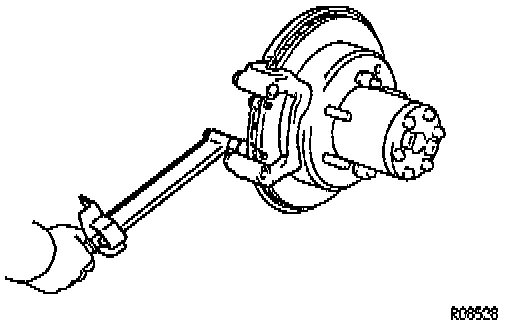

1. Remove the 2 bolts and torque plate.
2. Remove the Hub nuts and the Disc. Reinstall the Disc 1/6 of a turn round from its original position on the Hub. Install and torque the Hub nuts.
- Torque: 103 Nm (76 ft. lbs.) .
- Remeasure the Disc runout. Make a note of the runout and the Disc's position on the Hub.
3. Repeat (b) until the Disc has been installed on the 4 remaining Hub positions.
4. If the minimum runout recorded in (b) and (c) is less than 0.15 mm (0.0059 inch), install the Disc in that position.
5. If the minimum runout recorded in (b) and (c) is greater than 0.15 mm (0.0059 inch), replace the Disc and repeat step 3.

Replace Disc:

6. Install the torque plate and torque the mounting bolts.
- Torque: 103 Nm (76 ft. lbs.).
