Front Pads

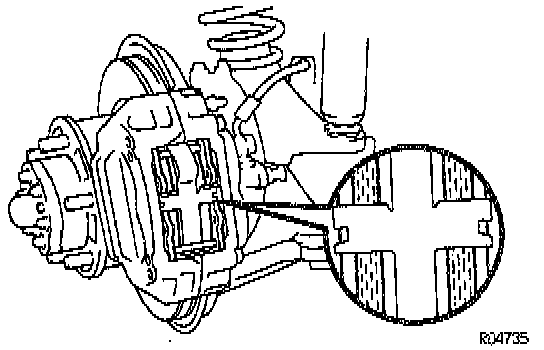

Inspect Pad Lining Thickness:
INSPECT PAD LINING THICKNESS
- Check the pad thickness through the Caliper inspection hole and replace the pads if they are not within the specification.
Minimum thickness: 1.0 mm (0.039 inch).
INSPECT PAD LINING THICKNESS
- Check the pad thickness through the Caliper inspection hole and replace the pads if they are not within the specification.
Minimum thickness: 1.0 mm (0.039 inch).
