Disassembly and Assembly

DISASSEMBLY
1. Remove cylinder boot.

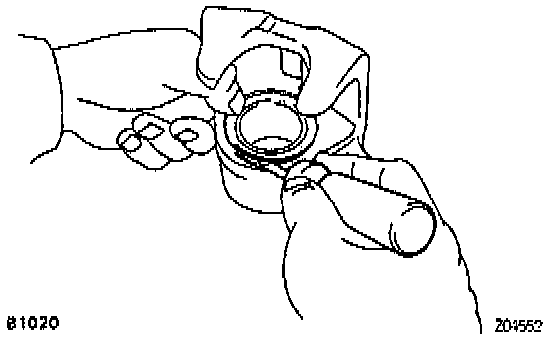

Remove Cylinder Boot:

Using a screwdriver, remove the cylinder boot from the Caliper.
2. Remove piston.
(a) Place a piece of cloth or similar article between the piston and the Caliper.





(b) Use compressed air to remove the piston from the cylinder.

CAUTION: Do not place your fingers in front of the piston when using compressed air.

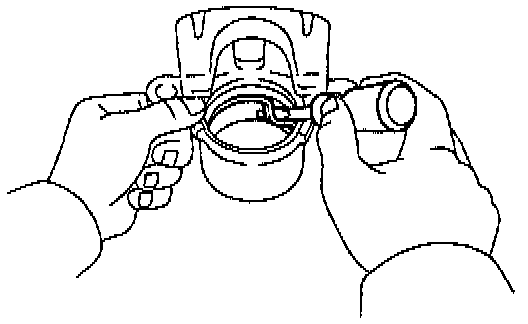

Remove Piston Seal:

3. Remove piston seal.
- Using a screwdriver, remove the piston seal from the cylinder.

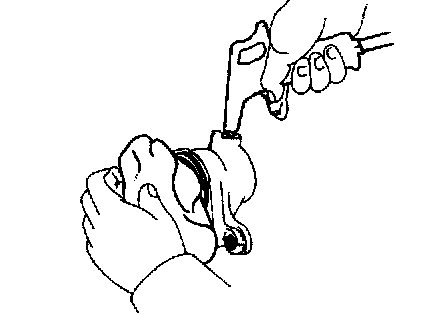

4. Remove dust boot and sliding bushing.
- Using a screwdriver and hammer, tap out pin boot and sliding bushing.

NOTE: Tape the screwdriver tip before use.

ASSEMBLY
Reassembly is in the reverse order of disassembly.

NOTE: Apply lithium soap base glycol grease to the parts indicated by the arrows in the EXPLODED VIEW.
