Symptom Related Diagnostic Procedures

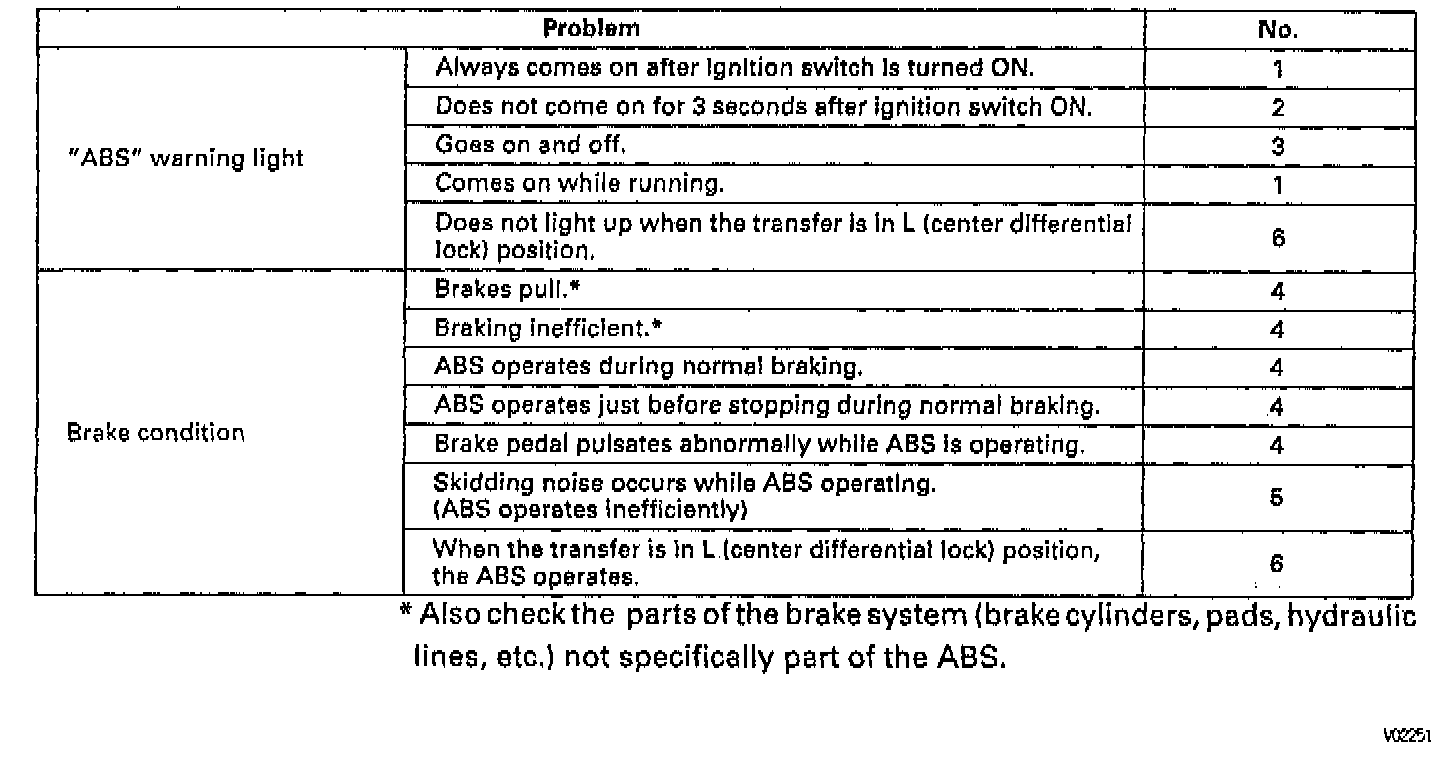

ABS Warning Light And Brake Condition Troubleshooting:






NOTE: * Also check the parts of the brake system (brake cylinders, pads, hydraulic lines, etc.) not specifically part of the Anti-Lock Brake System (ABS).

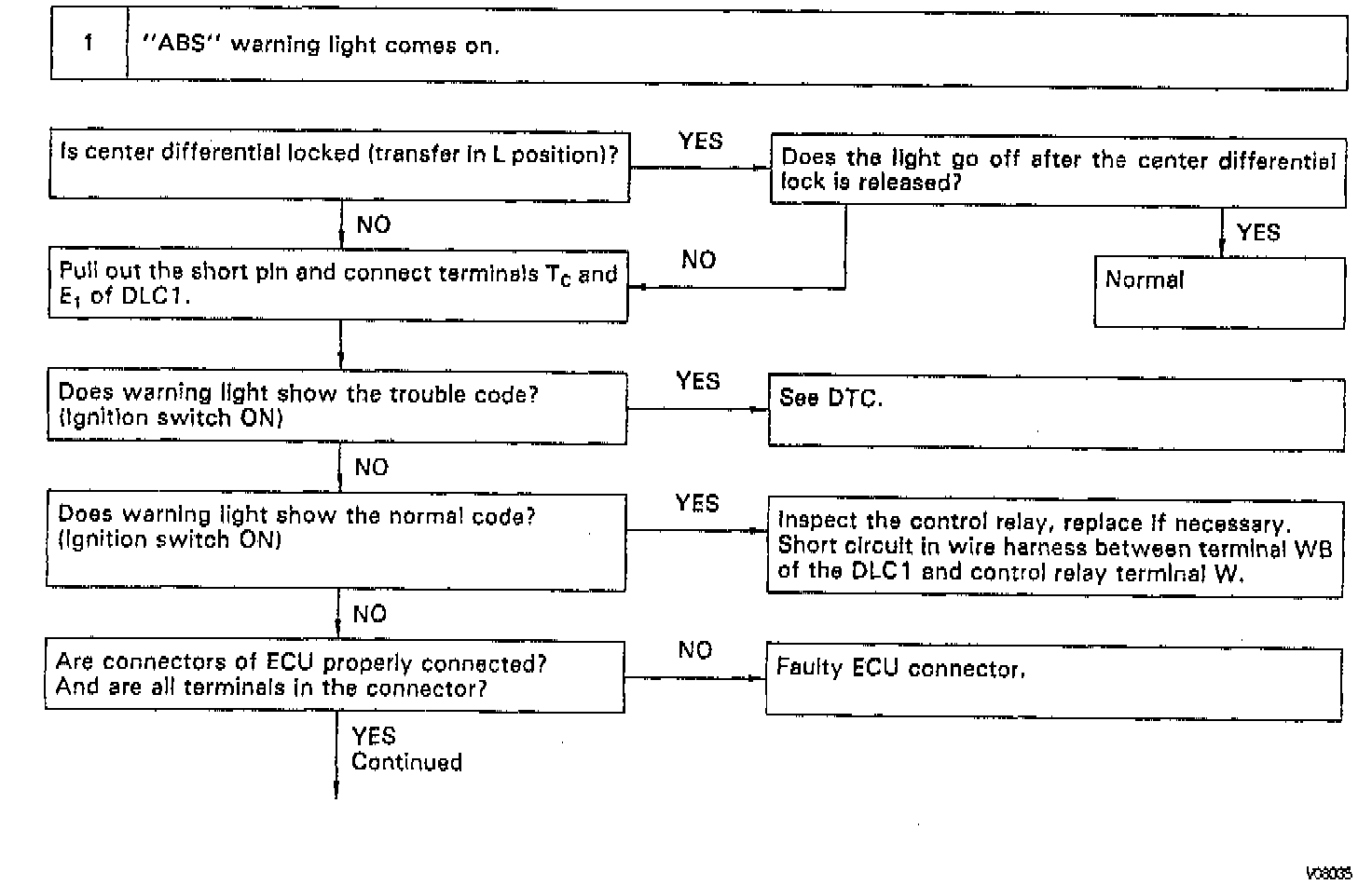

ABS Troubleshooting Chart (Part 1 Of 4):

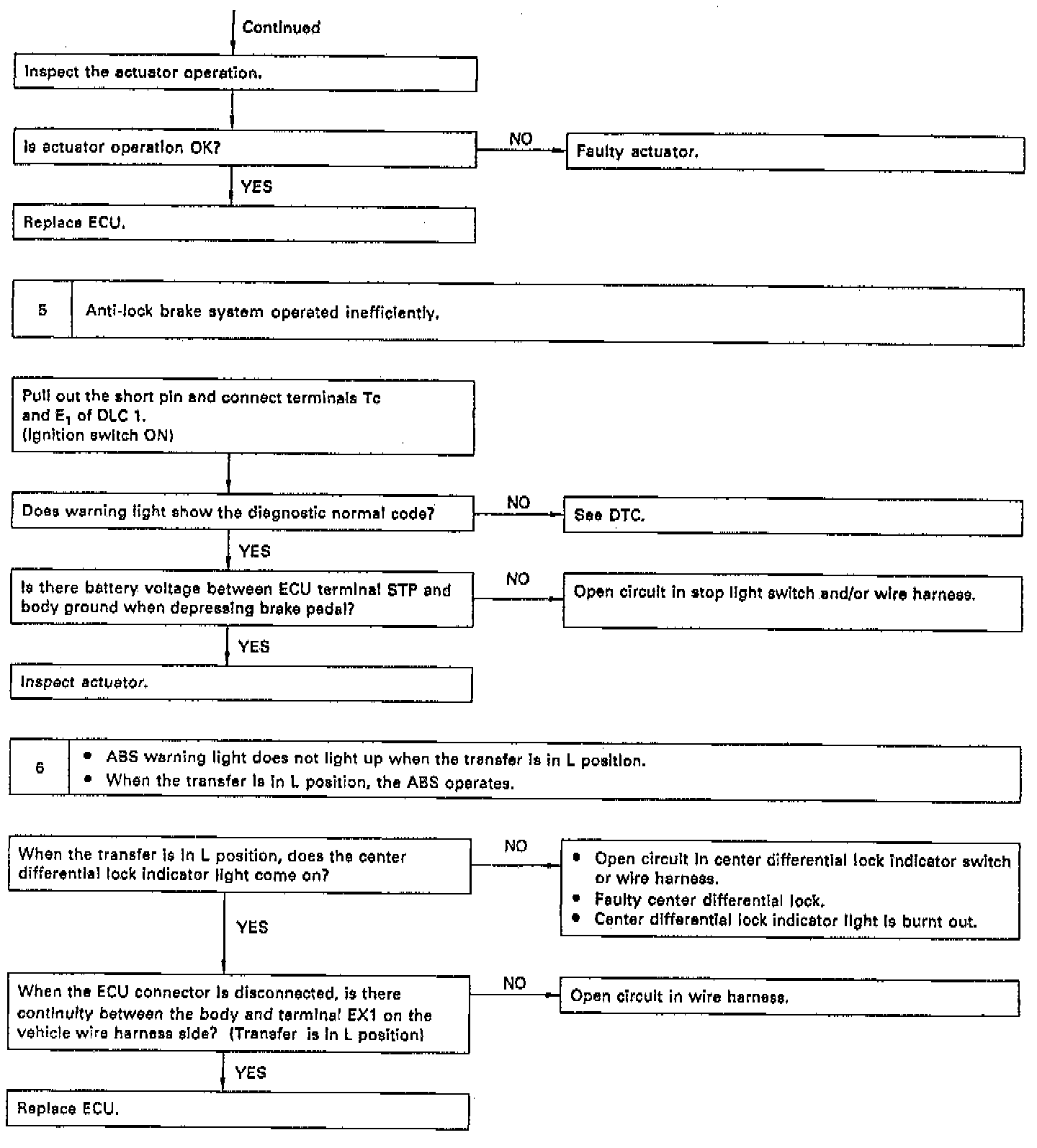

ABS Troubleshoot Chart (Part 2 Of 4):

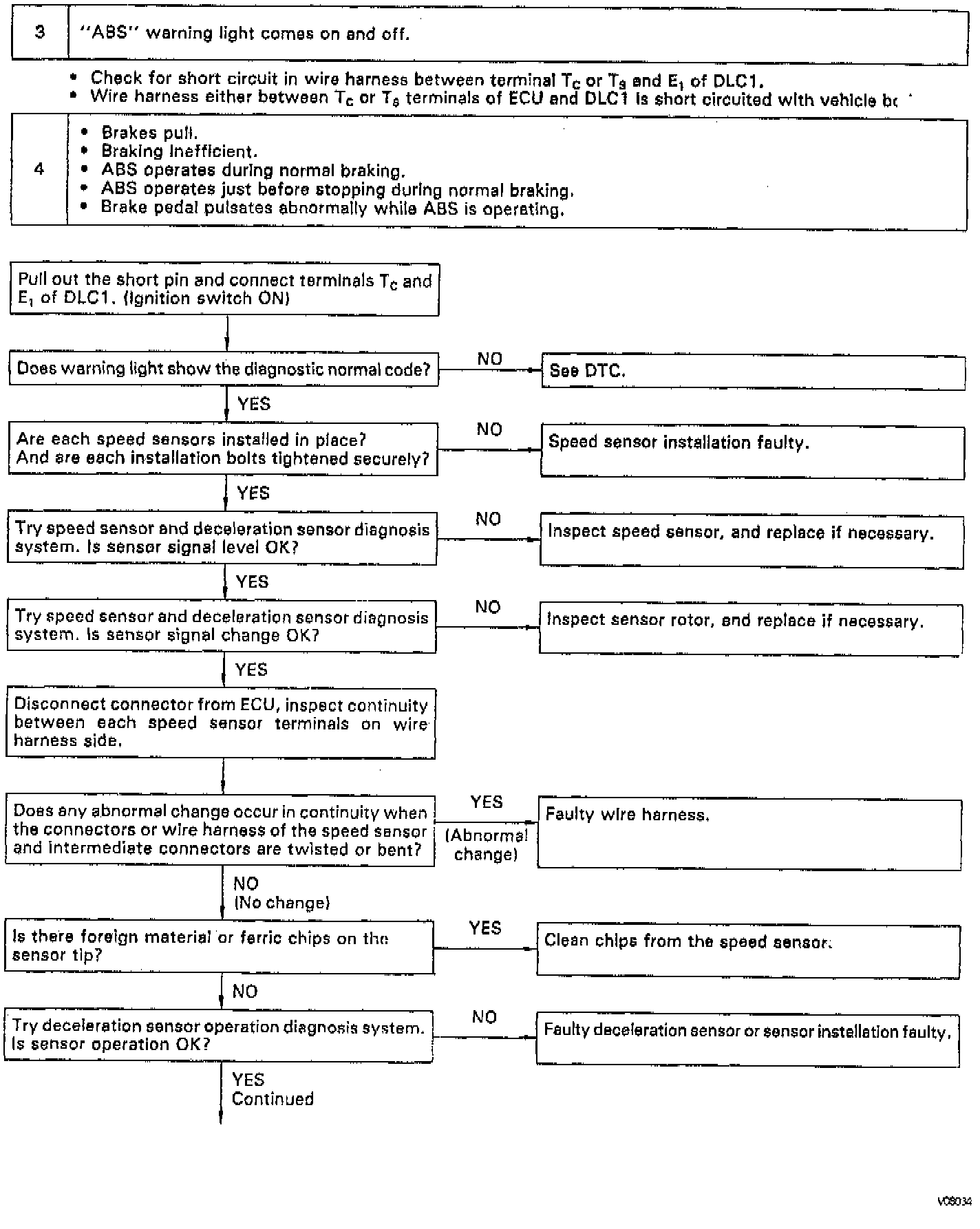

ABS Troubleshooting Chart (Part 3 Of 4):

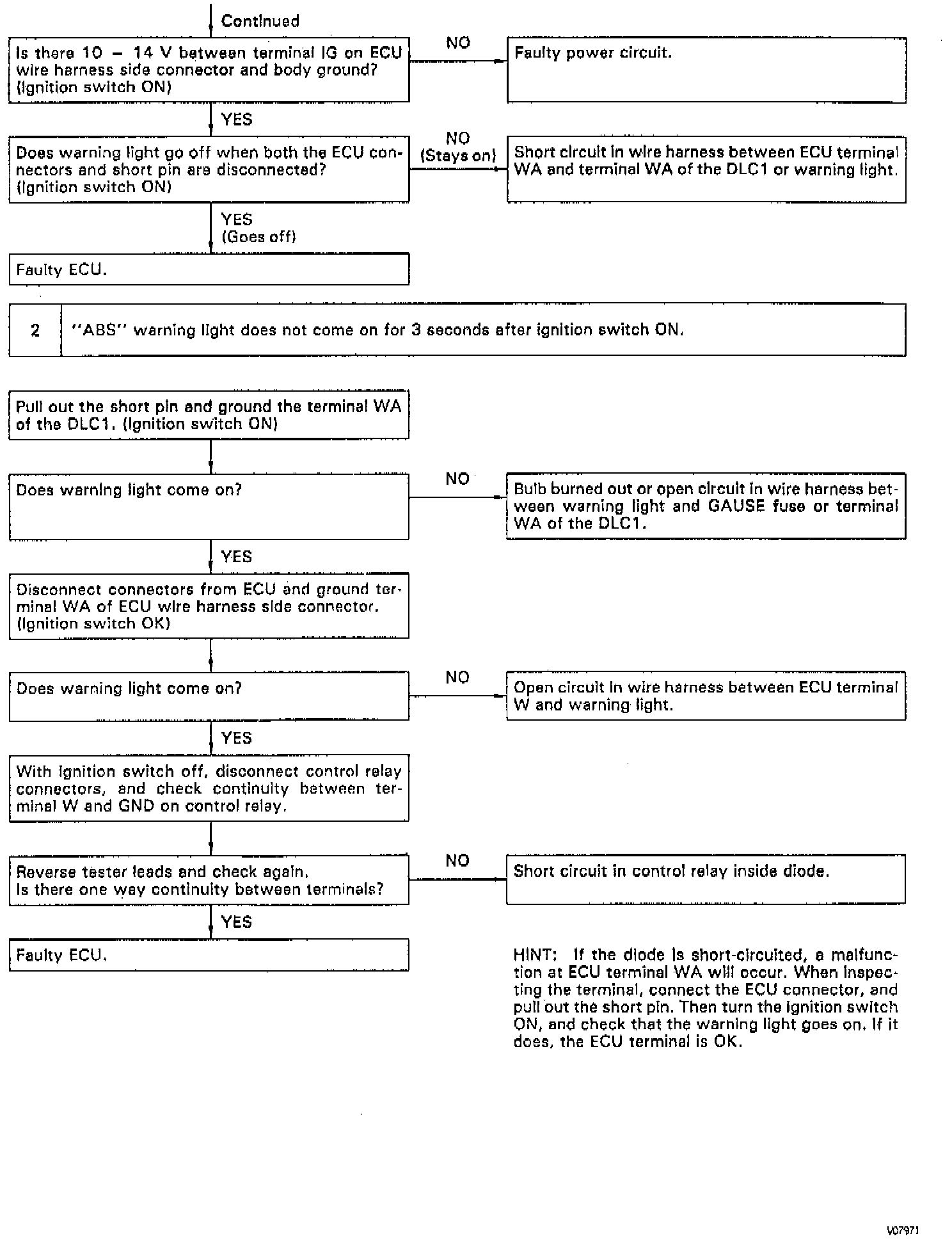

ABS Troubleshooting Chart (Part 4 Of 4):
