Rear

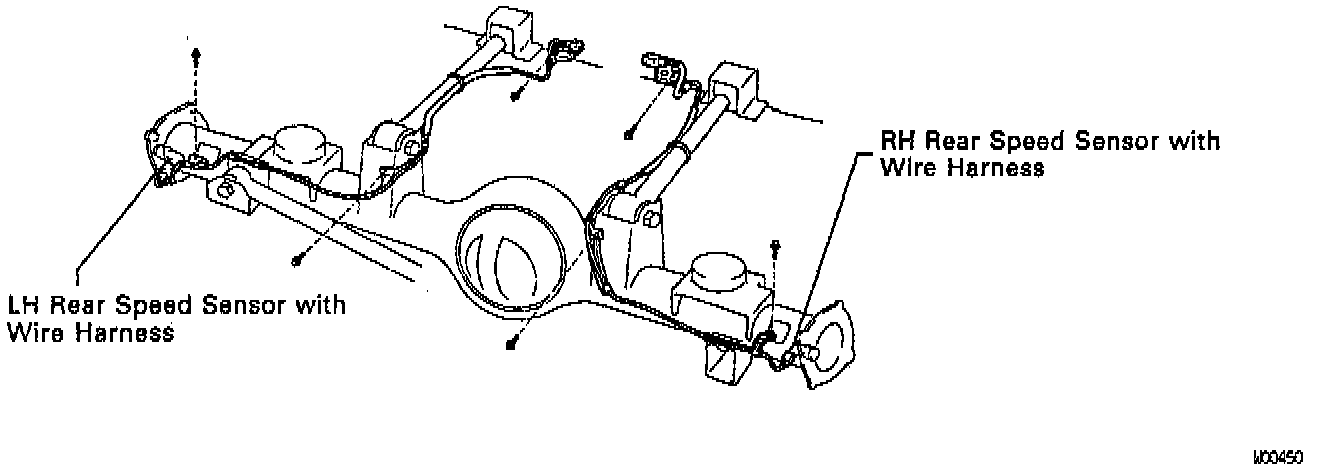

Rear Speed Sensor Components:

INSPECTION
1. Inspect Speed Sensor.

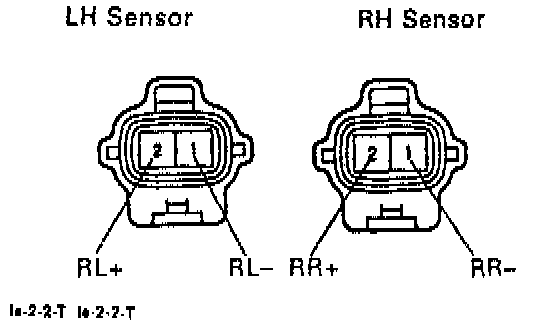

Disconnect Speed Sensor Connector:

(a) Disconnect the Speed Sensor connector.

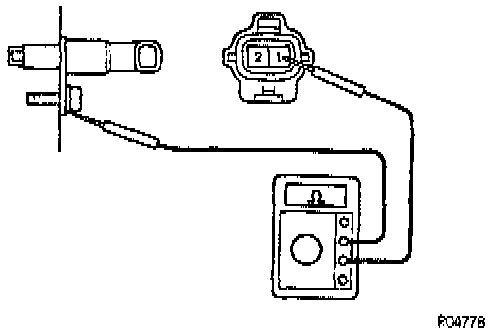

Measure Resistance Between Terminals:

(b) Measure the resistance between terminals.
Resistance: 0.5 - 1.6 k ohms
If resistance value is not as specified, replace the sensor.

Checking For No Continuity Between Terminals And Sensor Body:

(c) Check there is no continuity between each terminal and sensor body.
If there is continuity, replace the sensor.
(d) Connect the Speed Sensor connector.

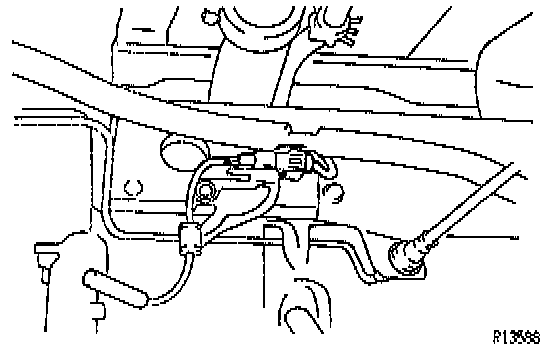

2. Inspect sensor installation.

Inspect Sensor Installation:

Check the sensor installation bolt is tightened properly and there is no clearance between the sensor and Axle end. If not, tighten the bolt.
Torque: 18 Nm (13 ft. lbs.)

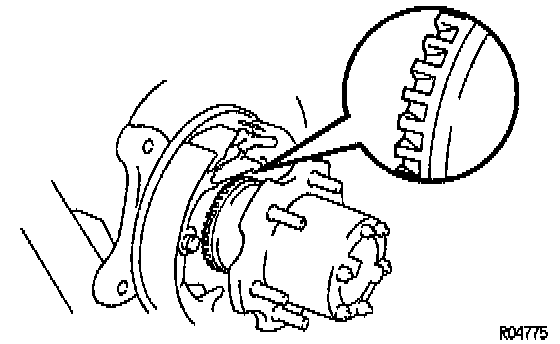

Inspect Sensor Rotor Serrations:

3. Visually inspect Sensor Rotor serrations.
(a) Remove the Brake Disc.
(b) Inspect the Sensor Rotor serrations for scratches, cracks, warping or missing teeth.
(c) Install the Brake Disc.

CAUTION: To prevent damage to the serrations, do not strike the Axle Hub.

4. Check that there is no foreign object on sensor.
5. Check Speed Sensor signal.
