Switch Continuity Inspections

POWER SEAT SWITCH INSPECTION (DRIVER'S SIDE)


INSPECT SWITCH CONTINUITY

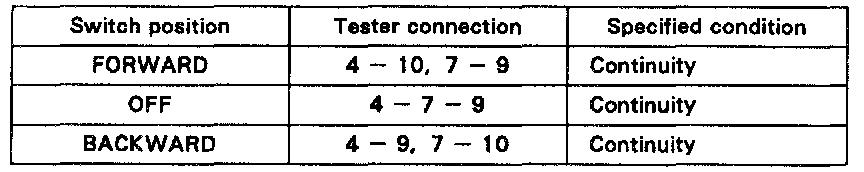

Slide switch

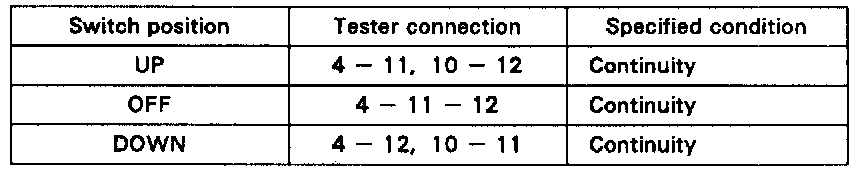

Front vertical switch

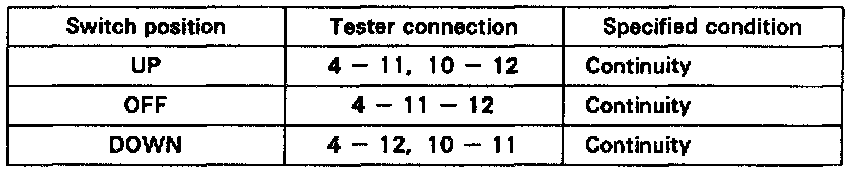

Rear vertical switch

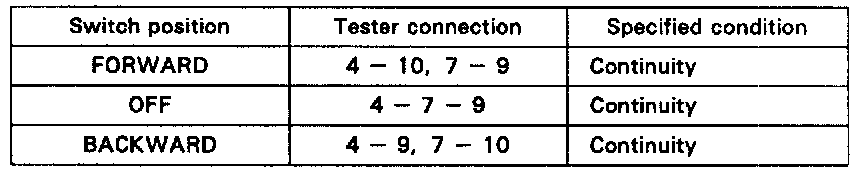

Reclining switch




POWER SEAT SWITCH INSPECTION (PASSENGER'S SIDE)

INSPECT SWITCH CONTINUITY










Slide switch

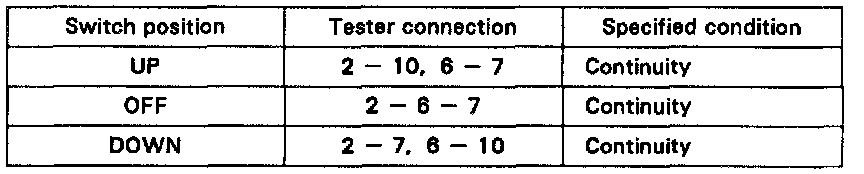

Front vertical switch

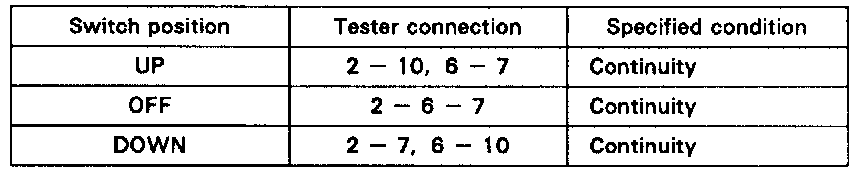

Rear vertical switch

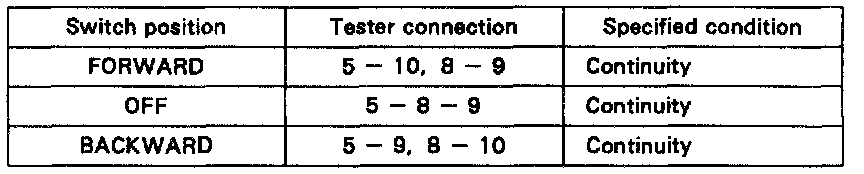

Reclining switch

If continuity is not as specified, replace the switch.
