Reclining Motor

RECLINING MOTOR INSPECTION (DRIVER'S SIDE)

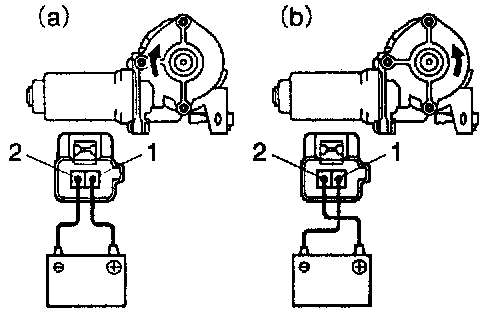

1. INSPECT MOTOR OPERATION
a. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the motor turns clockwise.
b. Reverse the polarity, and check that the motor turns counterclockwise.

If operation is not as specified, replace the motor.

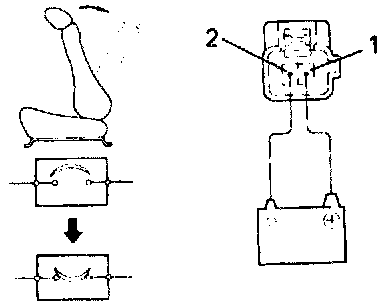

2. INSPECT CIRCUIT BREAKER OPERATION







a. Connect the positive (+) lead from terminal 1 and negative (-) lead to terminal 2.

Check that the seat back reclines to the most forward position.







b. Continue to apply voltage. and check that there is a circuit breaker operation noise within 4 to 40 seconds.

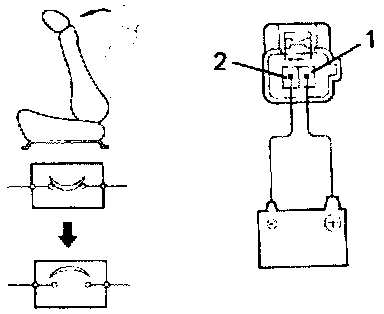

c. Reverse the polarity. and check that the seat back starts to fall backwards within approximately 60 seconds.

If operation is not as specified. replace the motor.


RECLINING MOTOR INSPECTION (PASSENGER'S SIDE)







1. INSPECT MOTOR OPERATION
a. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2. and check that the motor turns counterclockwise.
b. Reverse the polarity. and check that the motor turns clockwise.

If operation is not as specified. replace the motor.

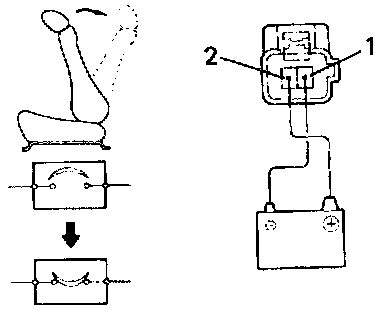

2. INSPECT CIRCUIT BREAKER OPERATION







a. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1 on the seat wire harness side connector, and recline the seat back to the most forward position.
b. Continue to apply voltage. and check that there is a circuit breaker operation noise within 4 to 40 seconds.

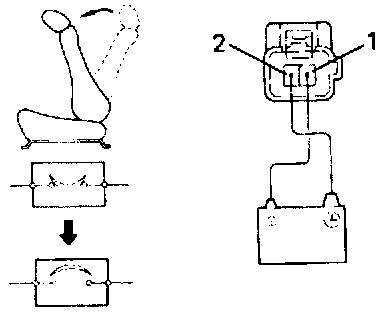

c. Reverse the polarity, and check that the seat back starts to fall backwards within approximately 60 seconds.

If operation is not as specified, replace the motor.
