Power Mirror Motor: Testing and Inspection

INSPECT MOTOR OPERATION

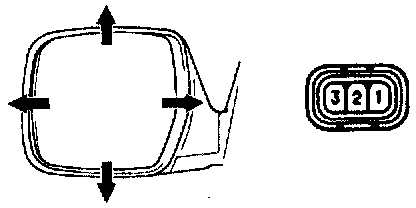

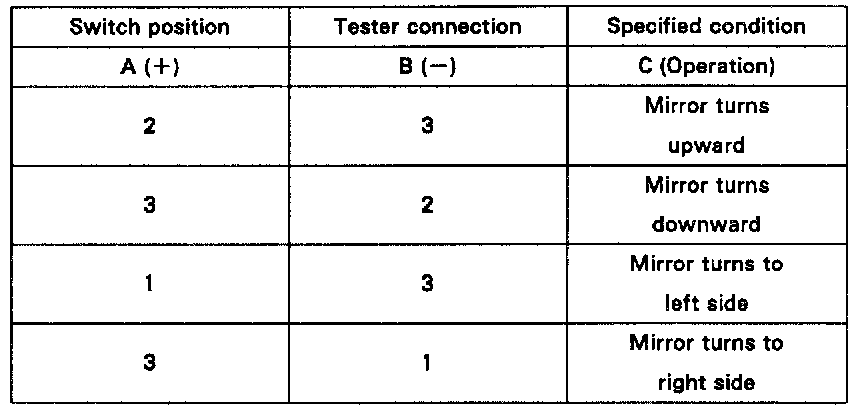

Connect the positive (+) lead from the battery to terminal in column "A" and the negative (-) lead to terminal in column "B", check that the mirror operates in column "C".

If operation is not as specified, replace the mirror assembly.
