Driver's Door Lock Manual Switch
Driver's Door Lock Manual Switch
POWER WINDOW MASTER SWITCH INSPECTION

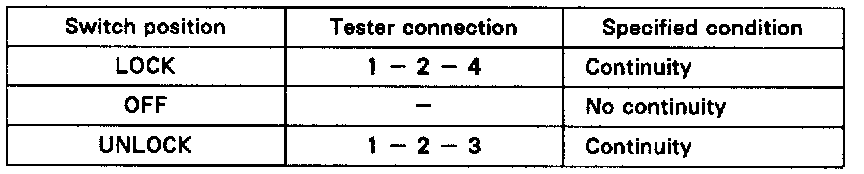

INSPECT DRIVER'S DOOR LOCK MANUAL SWITCH CONTINUITY
If continuity is not as specified, replace the switch.
