Door Lock Detection Switch
Door Lock Detection Switch

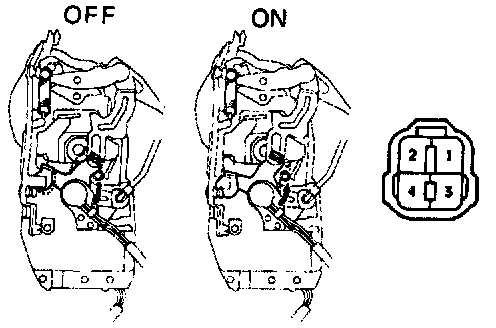

DOOR UNLOCK DETECTION SWITCH INSPECTION

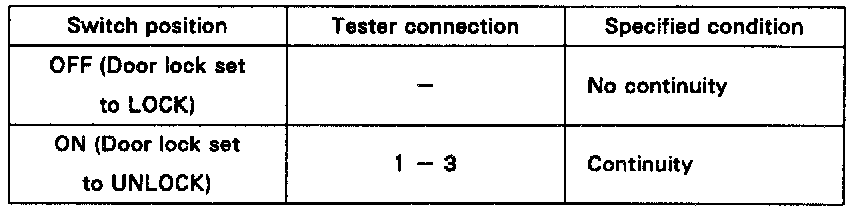

INSPECT SWITCH CONTINUITY
If continuity is not as specified, replace the door lock assembly.
