Door Key Lock and Unlock Switch

DOOR KEY LOCK AND UNLOCK SWITCH INSPECTION

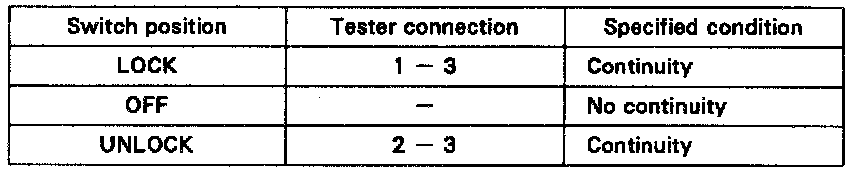

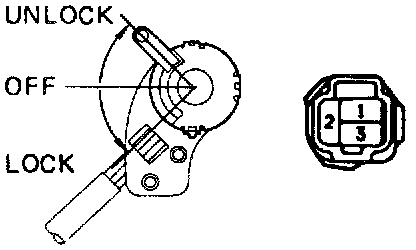

INSPECT SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

HINT: Door key lock and unlock switch is built into the front door lock assembly.
