Engine Control System

Chart No. 1:

Chart No. 2:

Chart No. 3:

Chart No. 4:

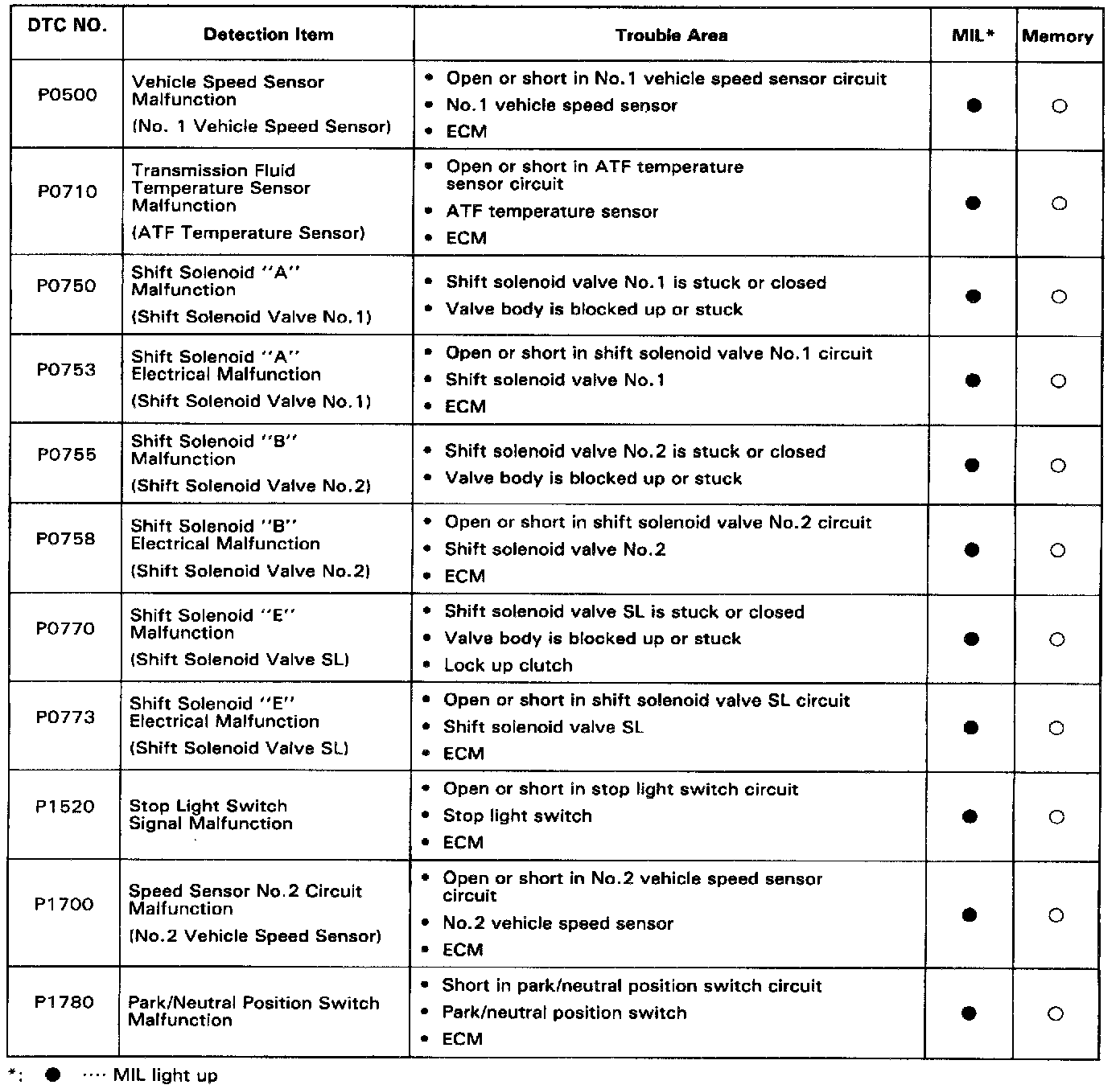

DTC Chart (Automatic Transmission):

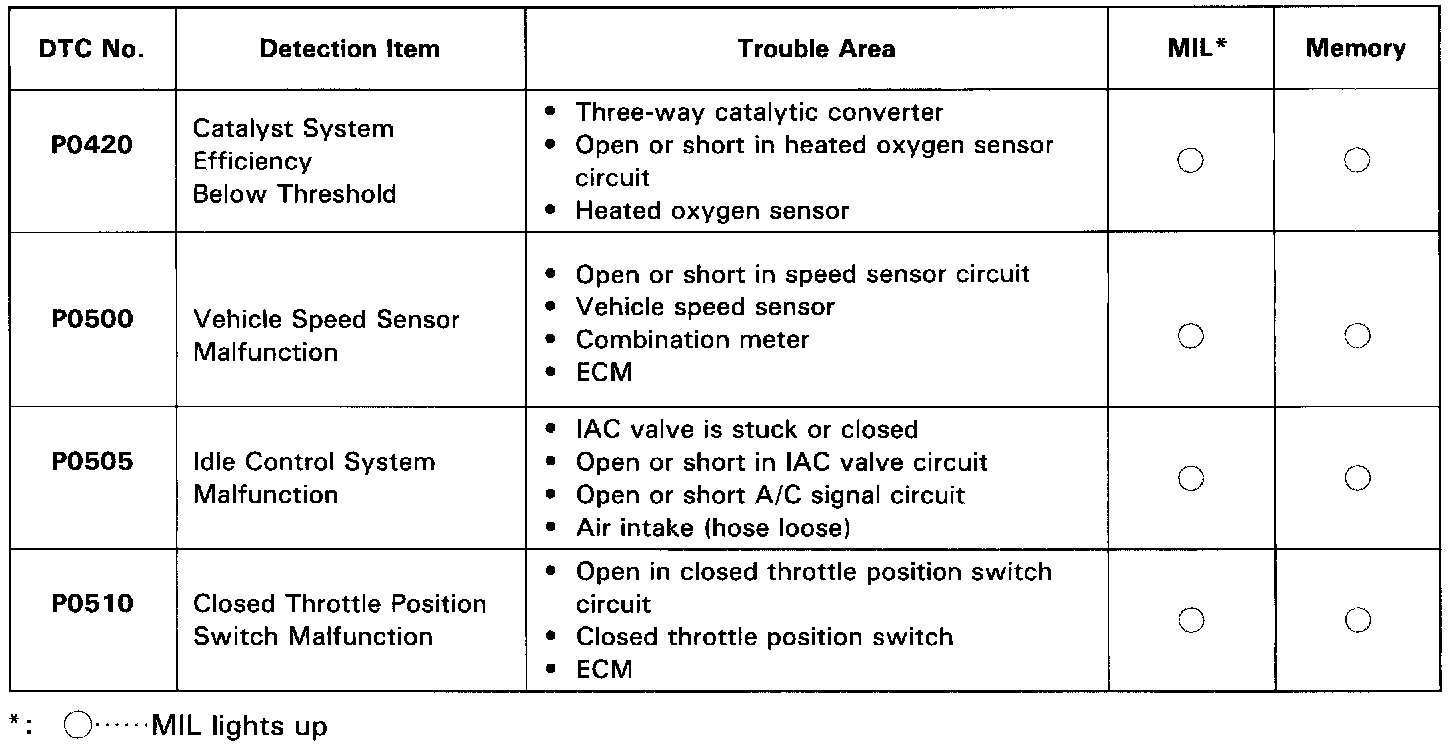

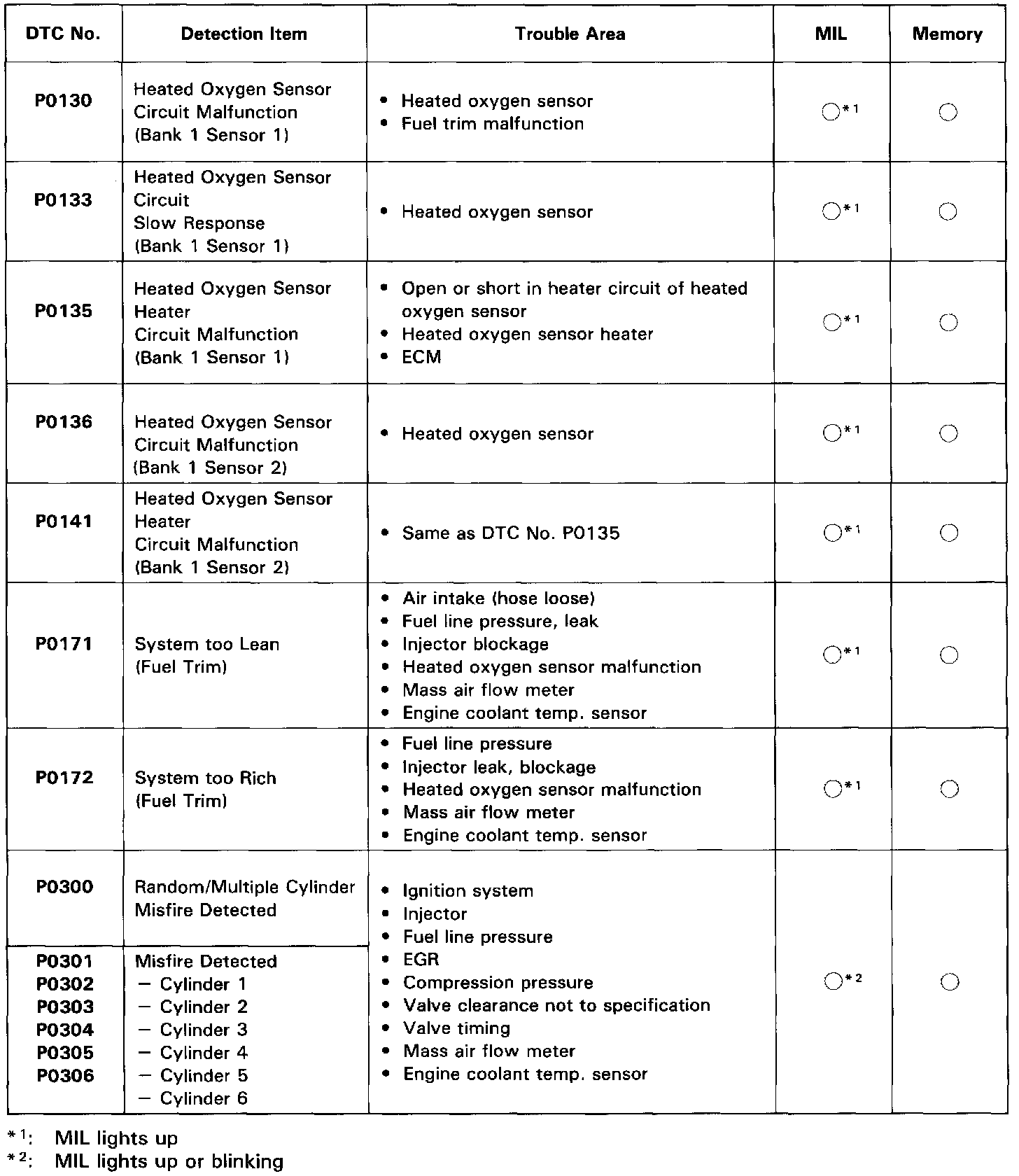

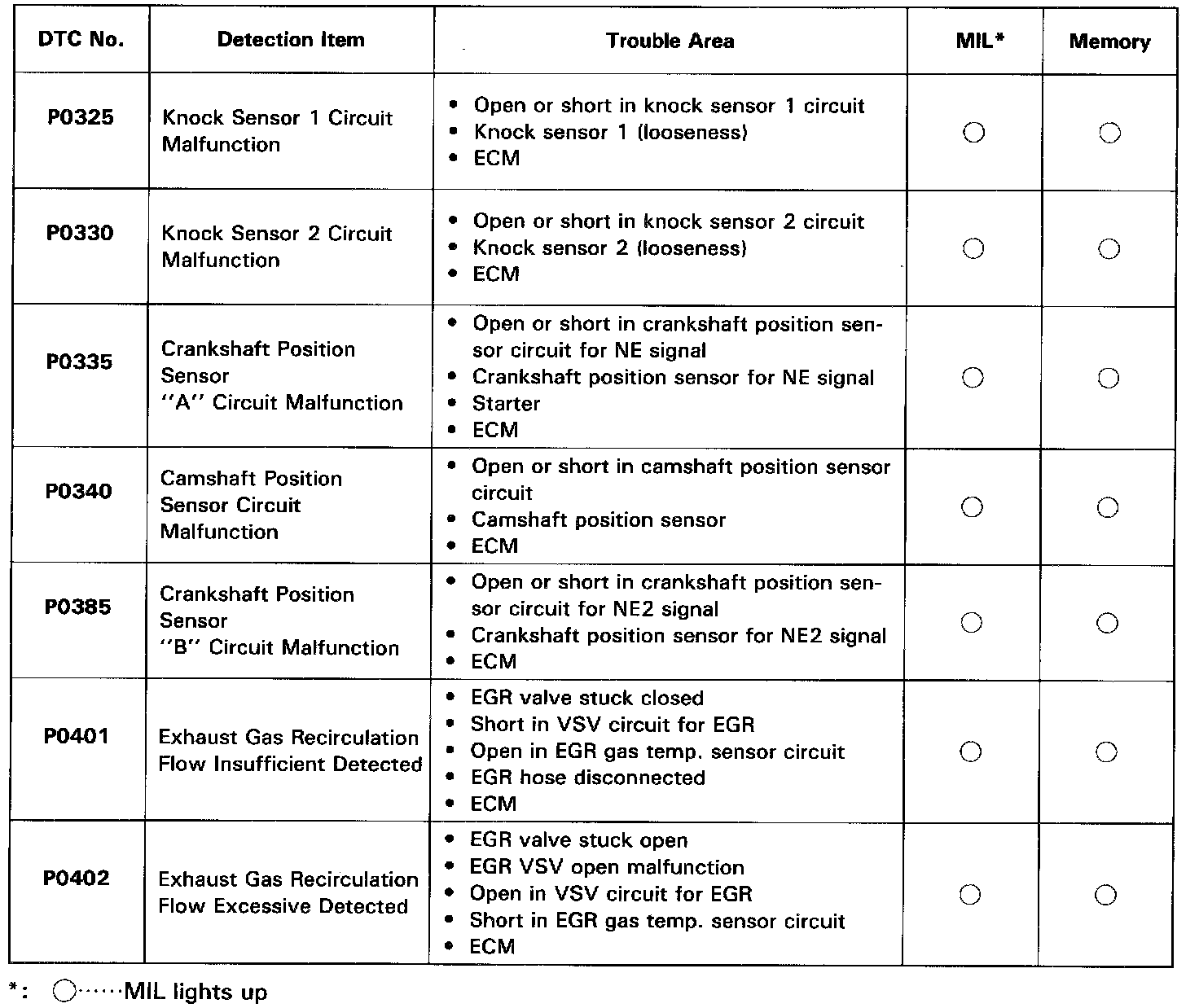

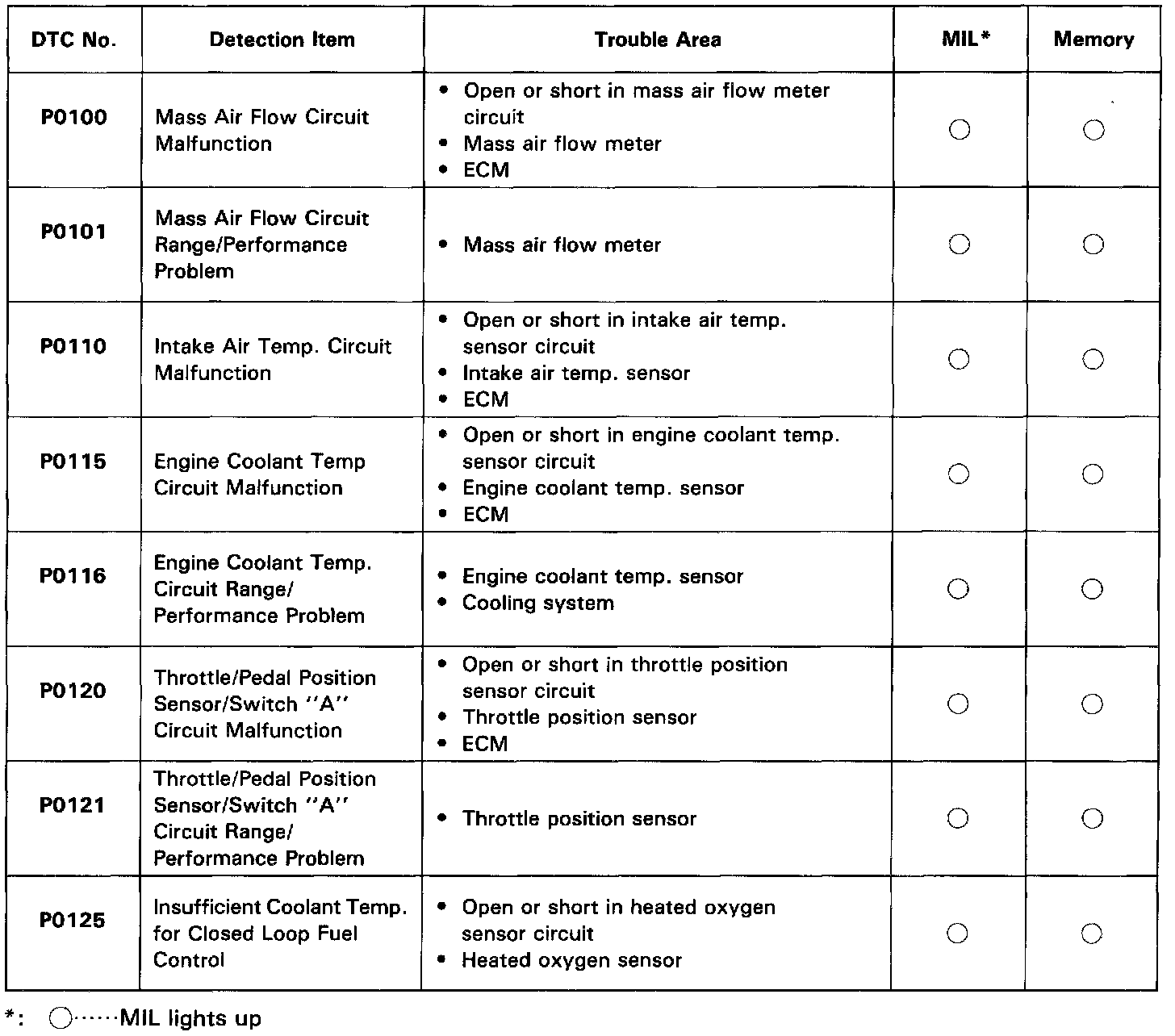

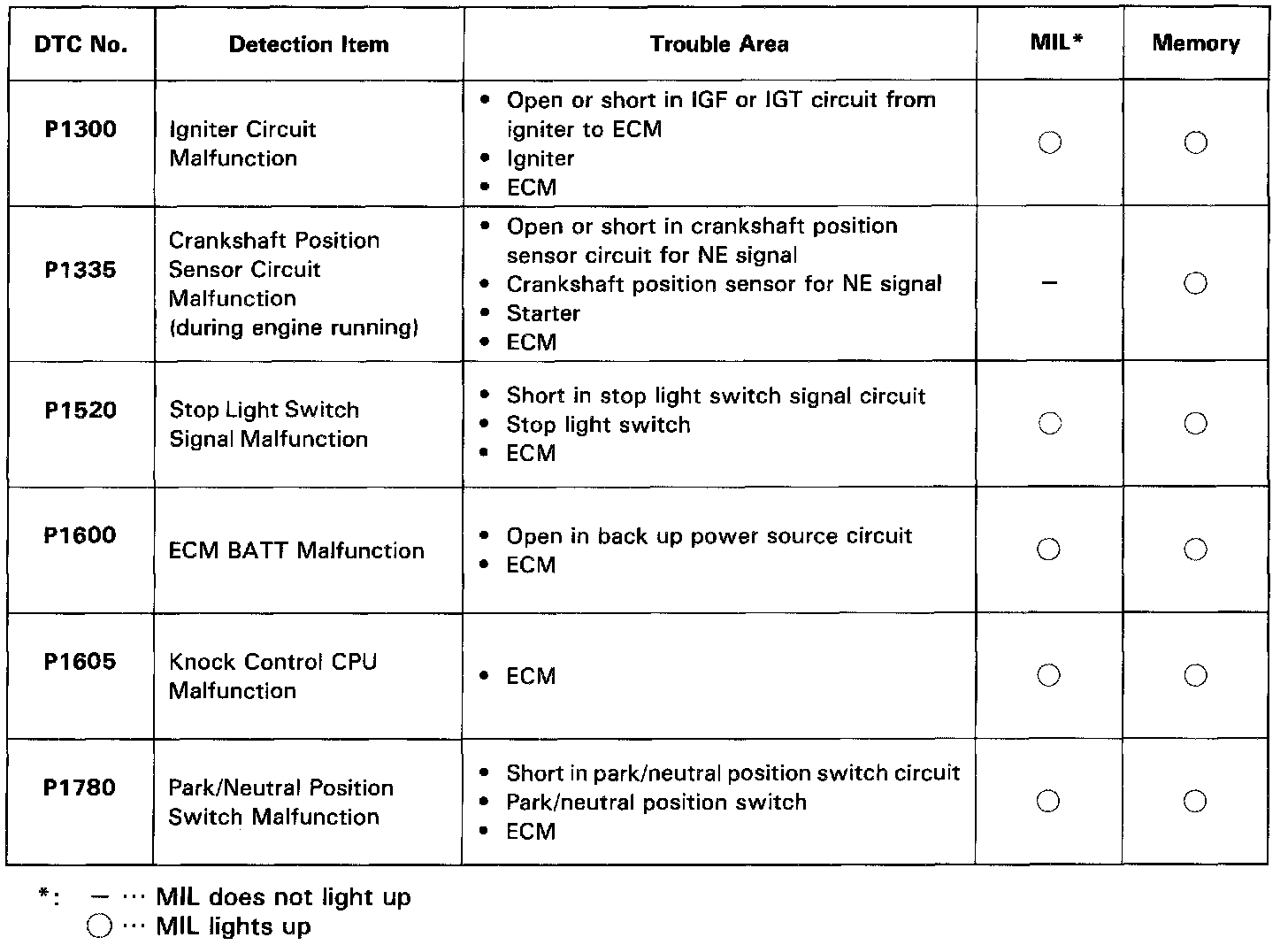

DTC CHART (SAE Controlled)

HINT: Parameters listed in the chart may not be exactly the same as your reading due to the type of instrument or other factors.

If a malfunction code is displayed during the DTC check in check mode, check the circuit for that code listed in the (Manufacturer Controlled) DTC Chart.
