Symptom Related Diagnostic Procedures

TROUBLESHOOTING

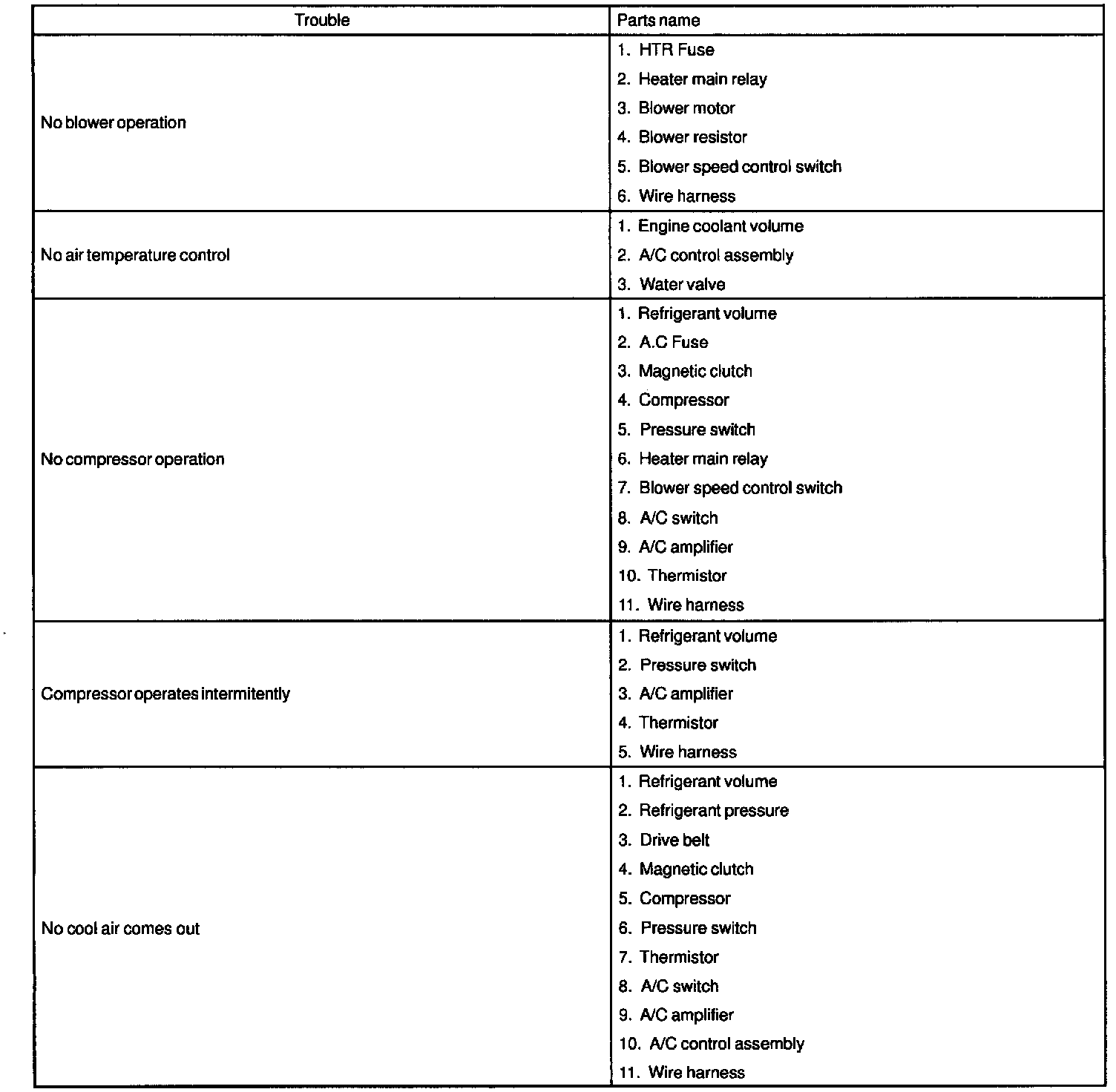

A/C Trouble Shooting (1 Of 3):

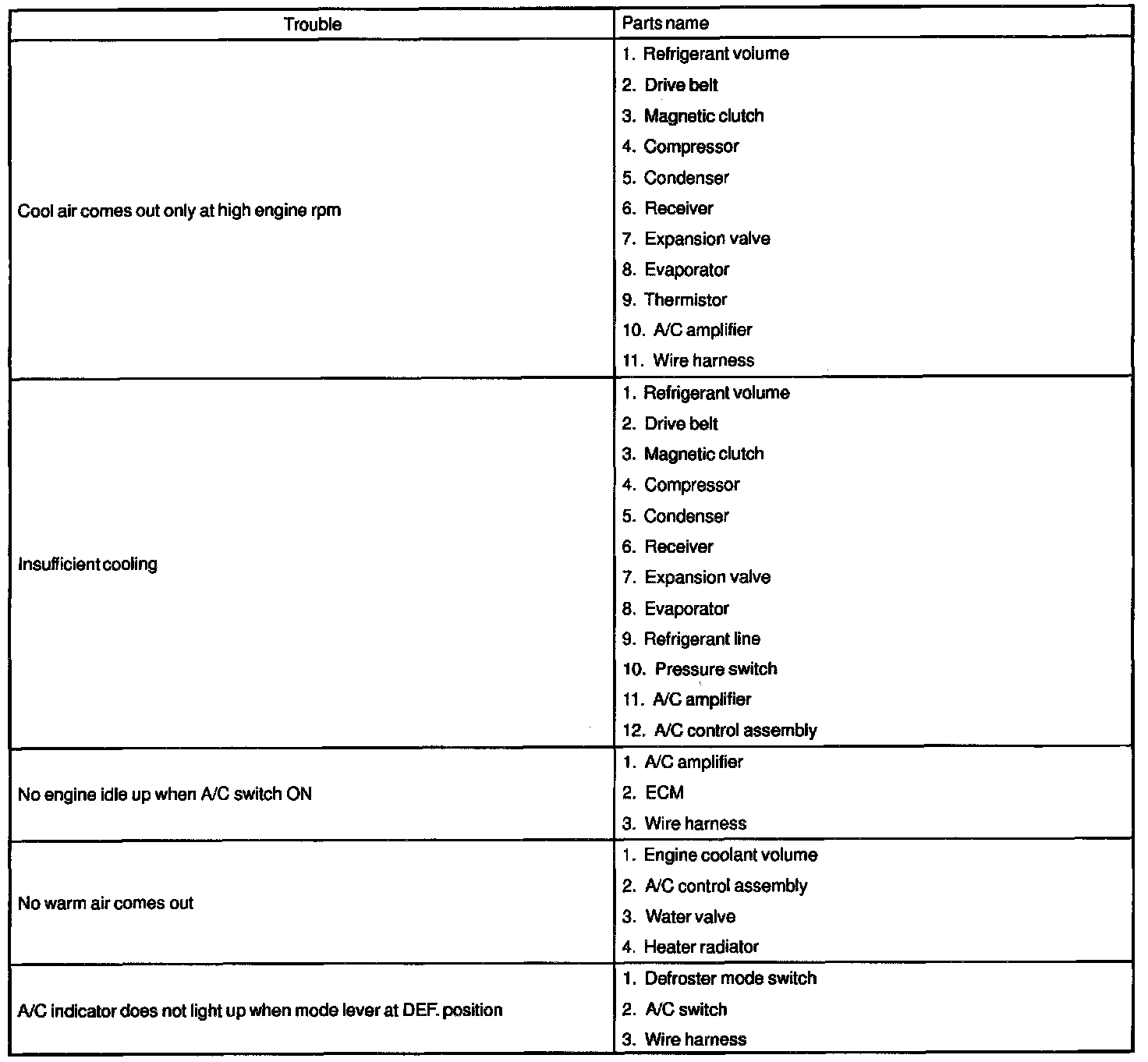

A/C Trouble Shooting (2 Of 3):

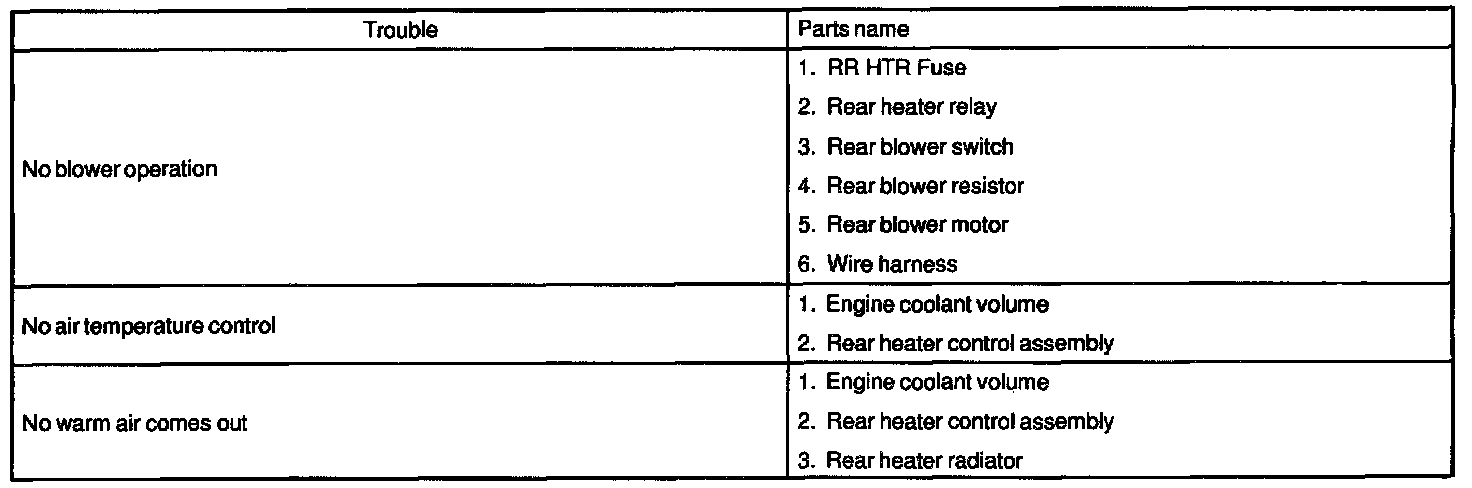

A/C Trouble Shooting (3 Of 3) W/Rear Heater:

Use the tables to help you find the cause of the problem. The numbers indicated the priority of the likely cause of the problem. Check each part in order. If necessary, replace these parts.
