Frame - Towing Receiver Hitch Installation Note
ACCESSORYAX002-97
February 21, 1997
Title:
TOWING RECEIVER HITCH
Models:
'96-'97 4Runner
Introduction
The Towing Receiver Hitch, part number 00214-89960, when installed on a 4Runner, requires both the front and rear vehicle tow hooks to be removed and reinstalled in accordance with the installation instructions enclosed in the hitch kit.
Affected Vehicles
^ 1996 and 1997 Model Year 4Runners
Part Number Information
PART NUMBER PART NAME QUANTITY
00214-89960 Towing Receiver Hitch 1
Repair Procedure

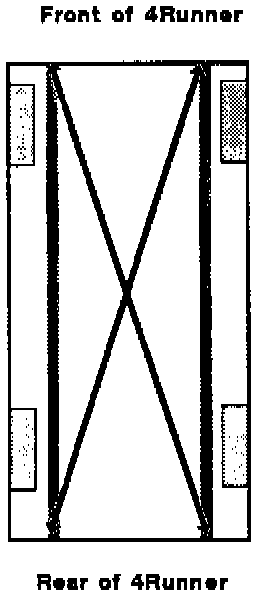

The tow hooks found on the front and rear of the vehicle, should be removed and reinstalled in the following manner during the installation of the hitch:
1. The passenger side front tow hook should be installed on the driver side rear. The driver side rear tow hook should be installed on the passenger side front.
2. The driver side front tow hook should be installed on the passenger side rear. The passenger side rear tow hook should be installed on the driver side front.
3. Torque fasteners to 75 ft. lbs.
