Instrument Panel Relay: Testing and Inspection

Combination Meter / Meter Circuits:

Bulb Check Relay Operation:

INSPECT BULB CHECK RELAY OPERATION

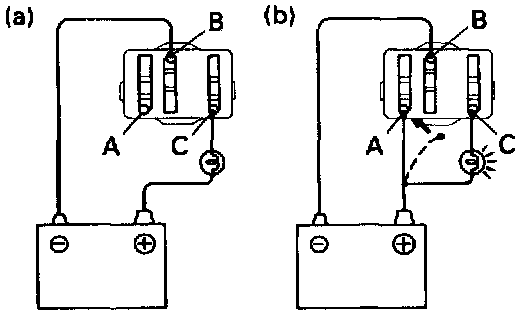

1. Connect the positive (+) lead from the battery to terminal C through a 1.4 W test bulb and the negative (-) lead to terminal B, check that the test bulb does not light up.
2. Connect the positive (+) lead from the battery to terminal A and check that the test bulb lights up.
If operation is not as specified, replace the relay.
