Pinout Values and Diagnostic Parameters

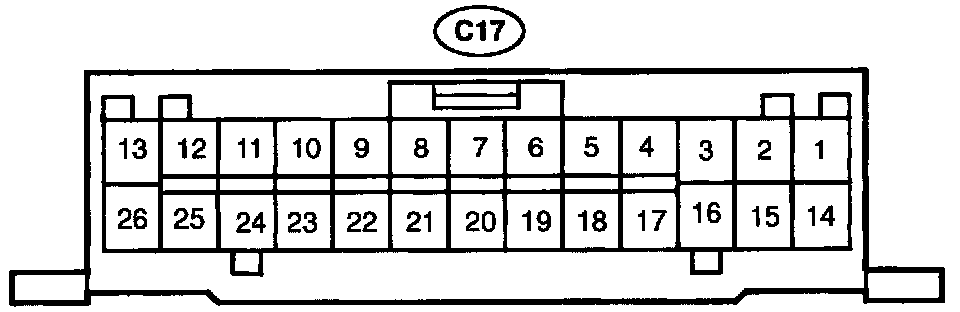

ECU Terminal Identification:

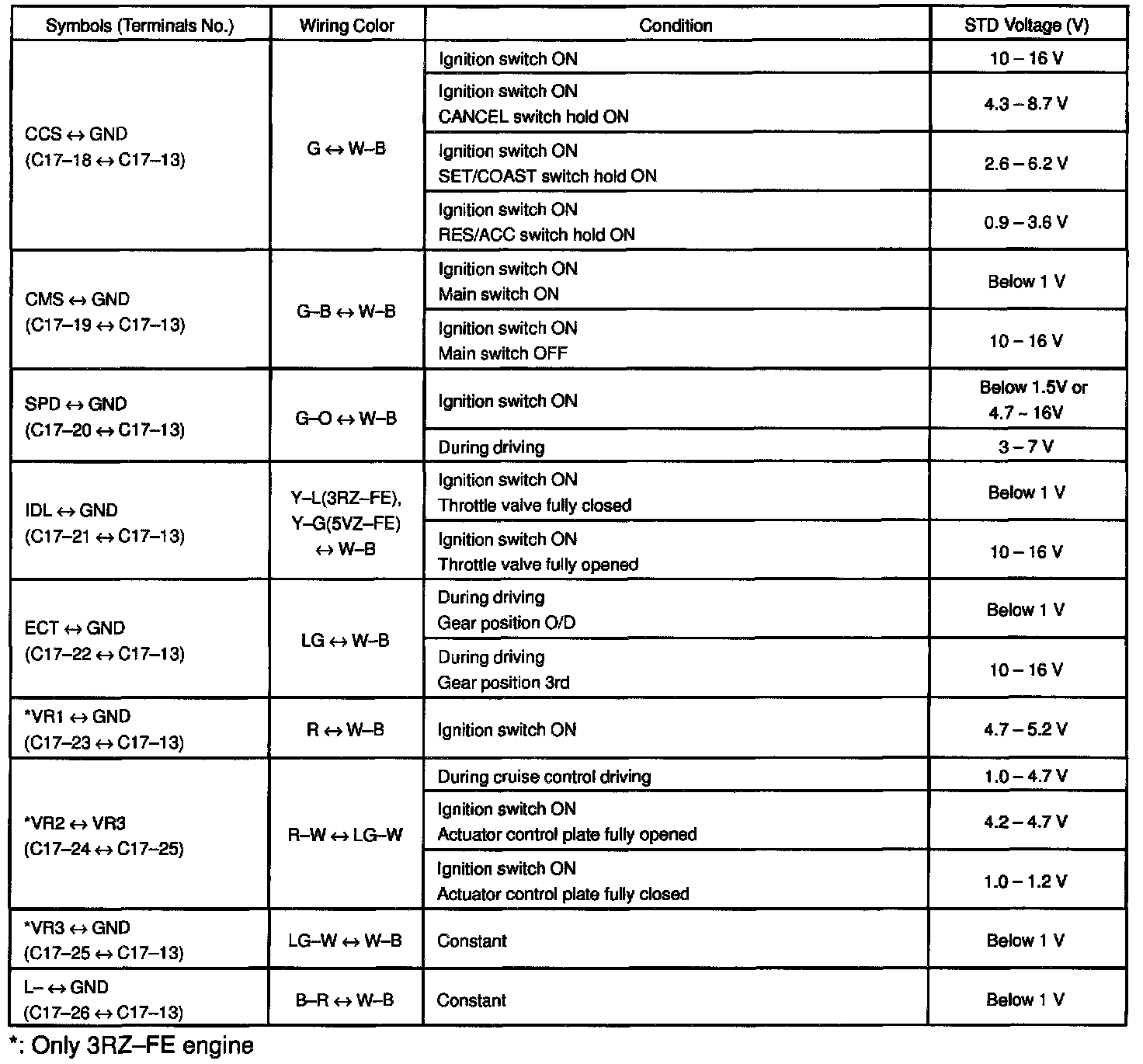

ECU Terminal Values Chart 1 Of 2:

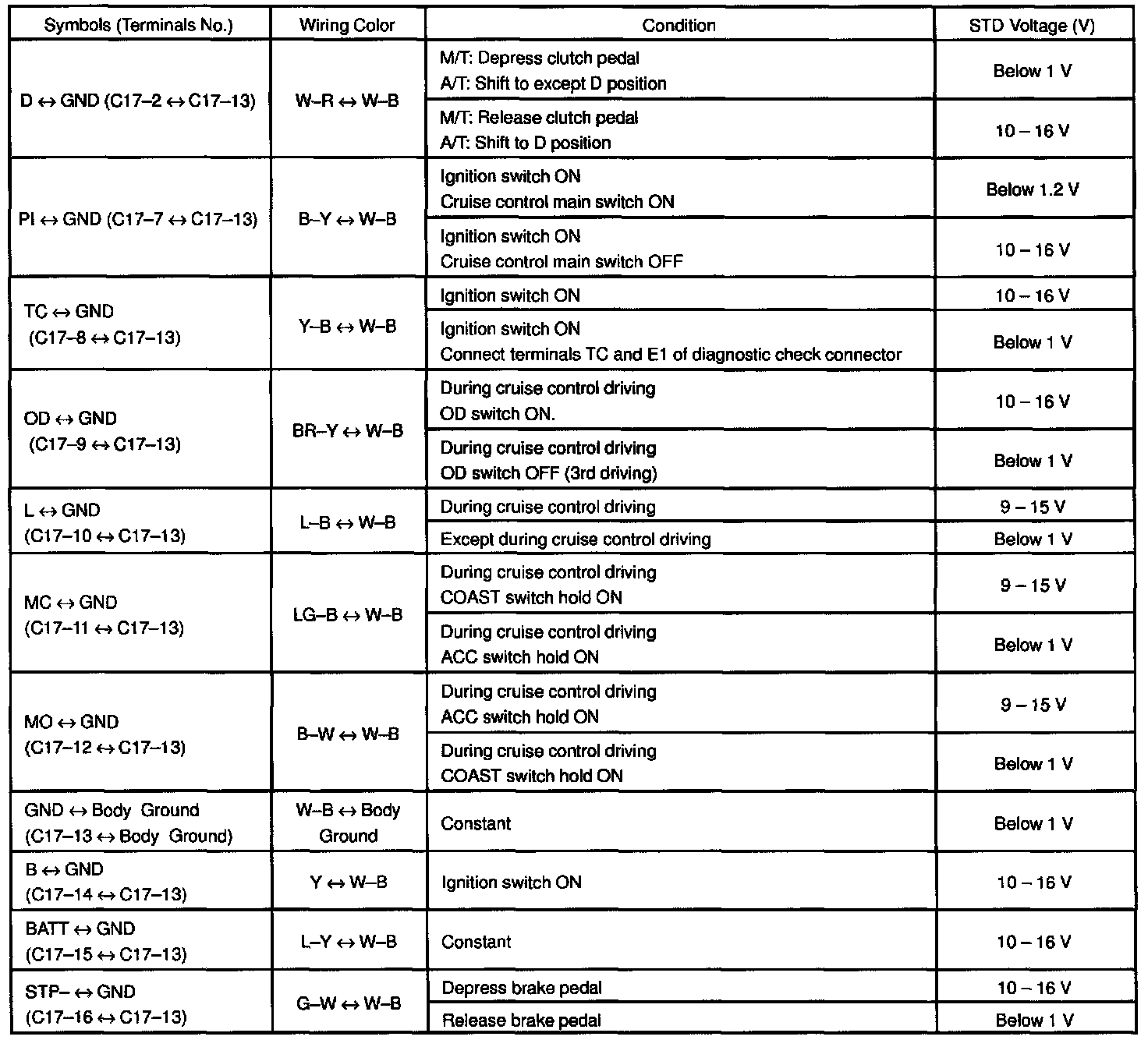

ECU Terminal Values Chart 2 Of 2:
