Brake Fluid Level Sensor/Switch: Testing and Inspection

Combination Meter / Meter Circuits:

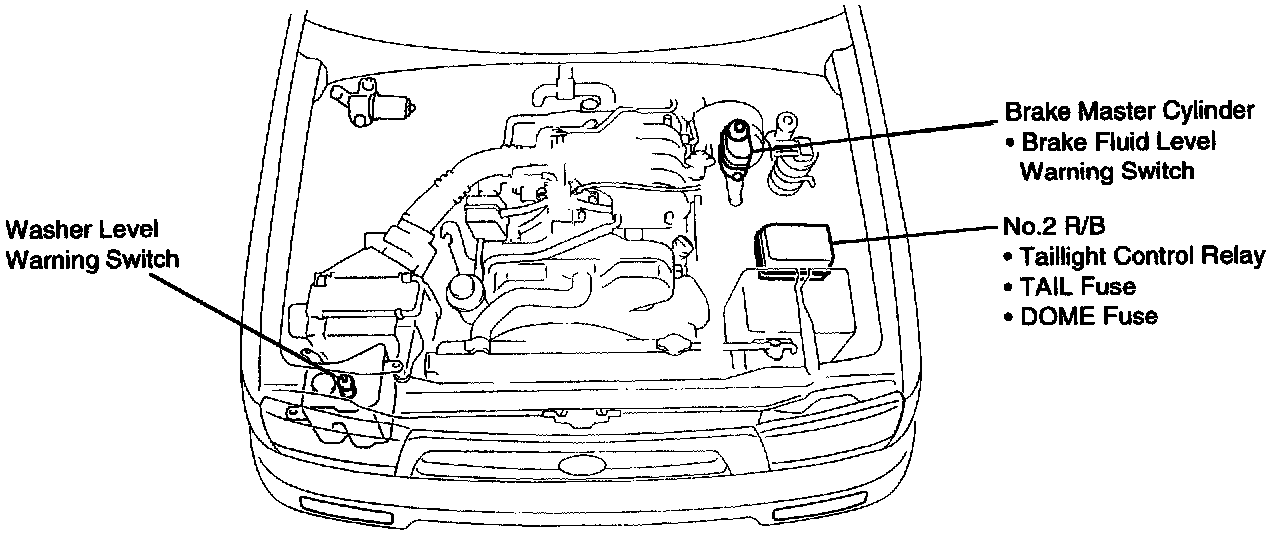

Brake Fluid Level Warning Light Switch Continuity:

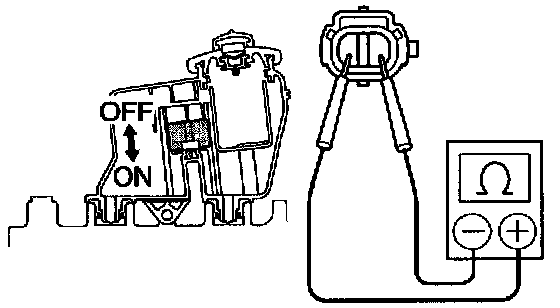

INSPECT BRAKE FLUID LEVEL WARNING SWITCH CONTINUITY
1. Check that there is no continuity between terminals with the switch OFF (float up).
2. Check that there is continuity between terminals with the switch ON (float down).
If operation is not as specified, replace the switch.
