Pinout Values and Diagnostic Parameters

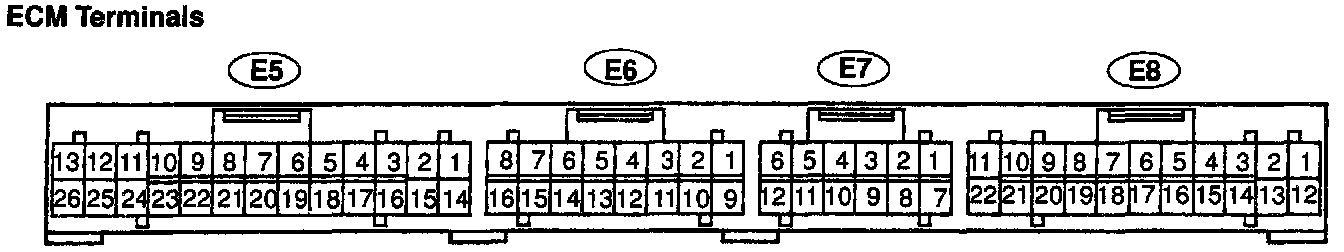

ECM Terminal Identification:

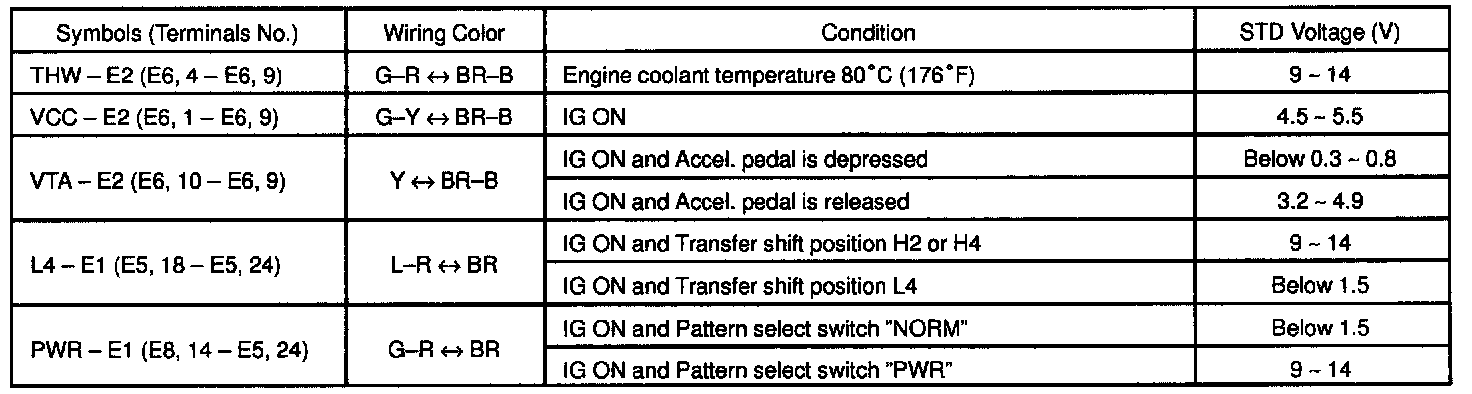

ECM Values Chart 1 Of 2:
ECM Values Chart 2 Of 2:
