Knock Sensor: Service and Repair

KNOCK SENSOR REMOVAL AND INSTALLATION

REMOVAL

1. Remove starter.

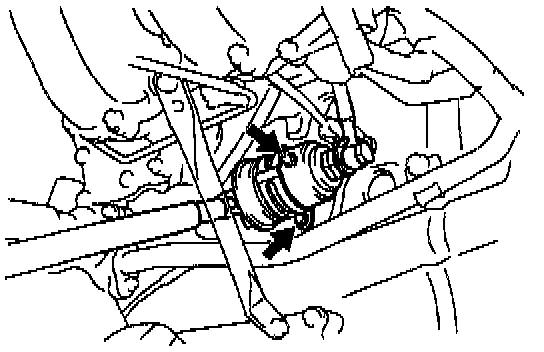

2. Remove fuel filter set bolts.
3. Remove knock sensor.
(a) Disconnect the knock sensor connector.

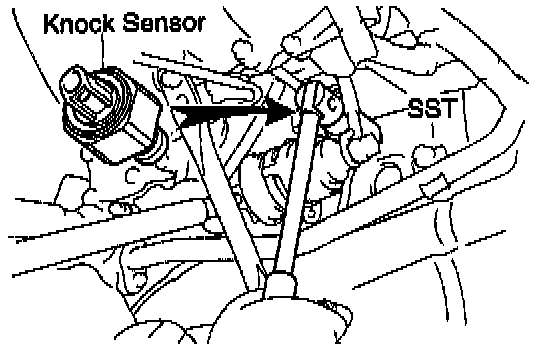

(b) Using SST, remove the knock sensor. SST 09816-30010

INSTALLATION

1. Reinstall knock sensor.
(a) Using SST, install the knock sensor. SST 0981630010

Torque: 44 N.m (450 kgf.cm, 33 ft.lbf)

(b) Connect the knock sensor connector.
2. Reinstall fuel filter set bolts.

Torque: 20 N.m (200 kgf.cm, 14 ft.lbf)

3. Reinstall starter.
