Ignition Cable: Service and Repair
HIGH-TENSION CORD REMOVAL AND INSTALLATIONHigh-Tension Cord Removal
1. Remove air cleaner cap and MAF meter assembly.
2. Remove intake air connector.
3. Disconnect high-tension cords from spark plugs.
Disconnect the high-tension cords at the rubber boot. DO NOT pull on the cords.
NOTICE: Pulling on or bending the cords may damage the conductor inside.
4. Disconnect high-tension cords from ignition coils.

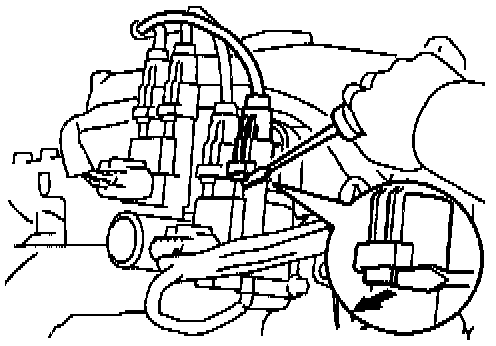

(a) Using a screwdriver, lift up the lock claw and disconnect the holder from the ignition coils.
(b) Disconnect the high-tension cord at the grommet. DO NOT pull on the cord.
NOTICE:
- Pulling on or bending the cords may damage the conductor inside.
- Do not wipe any of the oil from the grommet after the high-tension cord is disconnected.
High-Tension Cord Installation
1. Reconnect high-tension cords to ignition coils
(a) Assemble the holder and grommet.
(b) Align the spline of the ignition coil with the spline of the holder, and push in the cord.
NOTICE: Check that the holder is correctly Installed to the grommet and ignition coil as shown in the illustration.
(c) Check that the lock claw of the holder is engaged by lightly pulling the holder.
2. Reconnect high-tension cords to spark plugs.
Secure the high-tension cords with the clamps as shown in the illustration.
3. Reinstall intake air connector.
4. Reinstall air cleaner cap and MAF meter assembly.
