Component Tests and General Diagnostics

Camshaft Position Sensor

1. Disconnect camshaft position sensor connector.

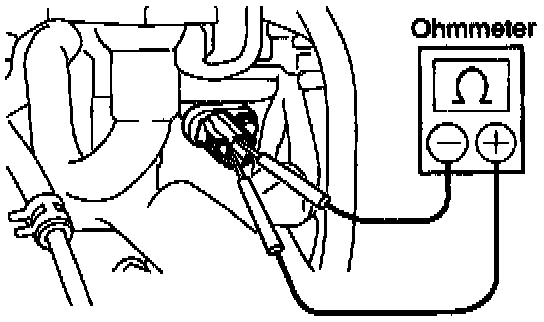

2. Inspect camshaft position sensor resistance.





Using an ohmmeter, measure the resistance between terminals.

Resistance:
Cold: 835-1,400 ohms
Hot: 1,060-1,645 ohms

If the resistance is not as specified, replace the camshaft position sensor.
Service and Repair

3. Reconnect camshaft position sensor connector.
