Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Toyota Truck
>>
1990
>>
Pickup 4WD L4-144.4 2366cc 2.4L SOHC (22R-E)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
Service Specifications
Service Specifications

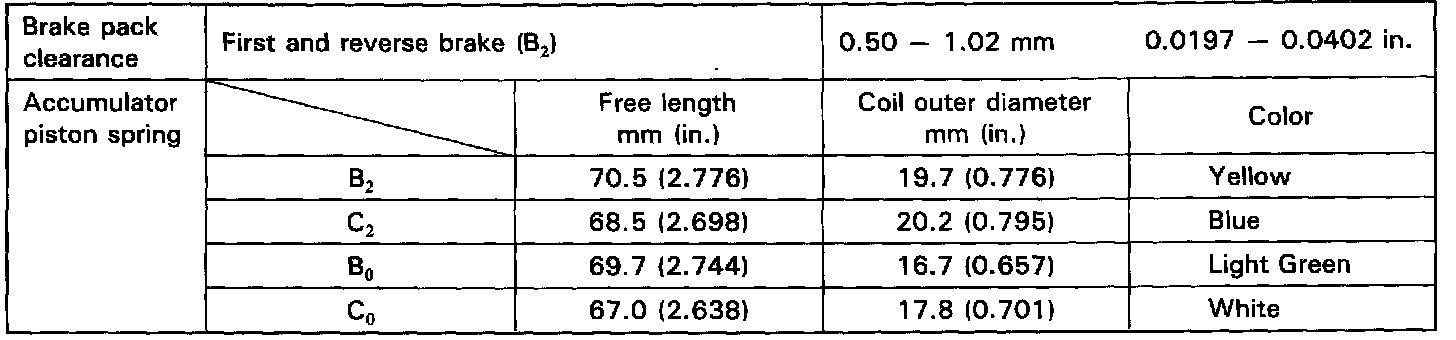

A/T Service Data

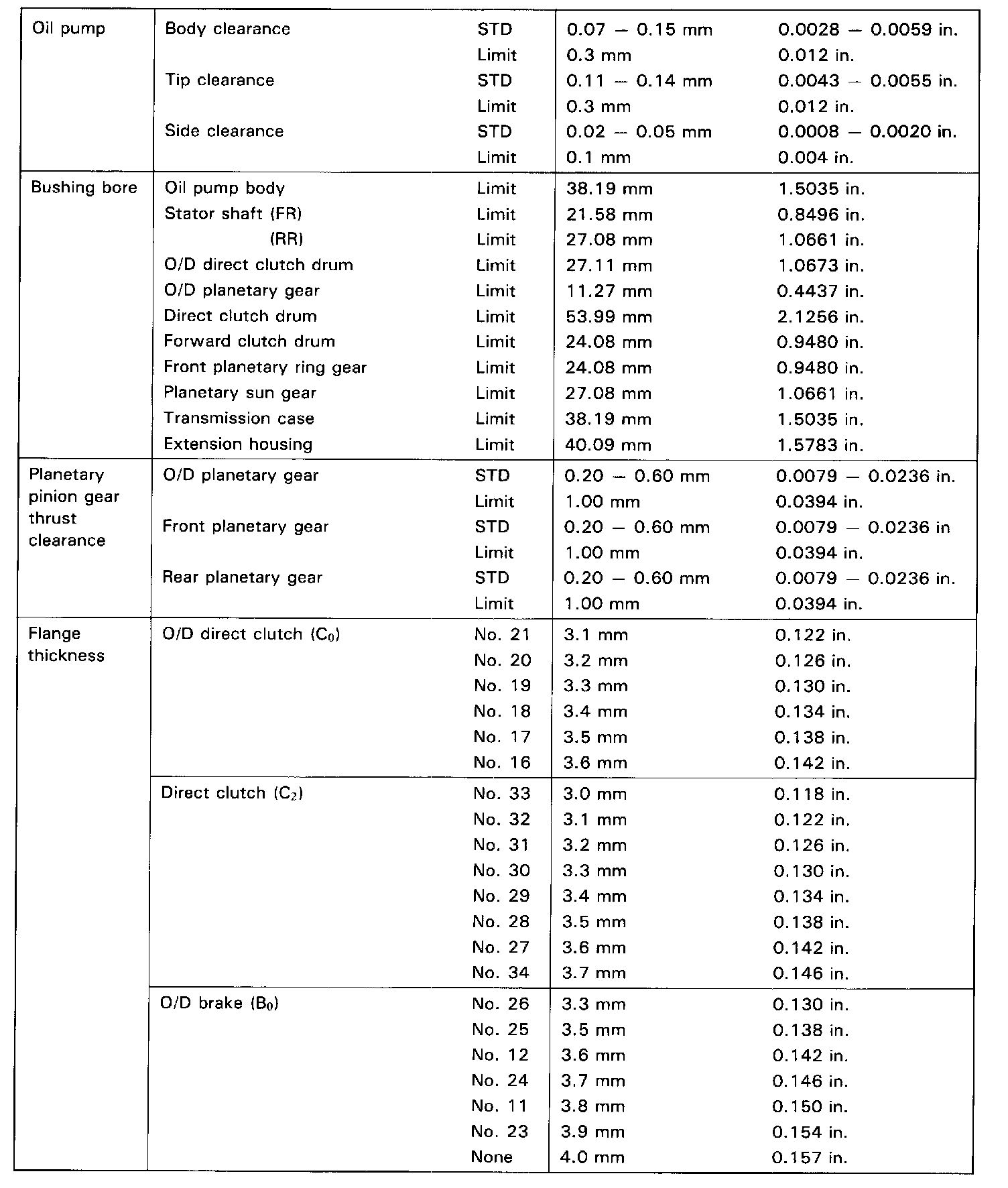

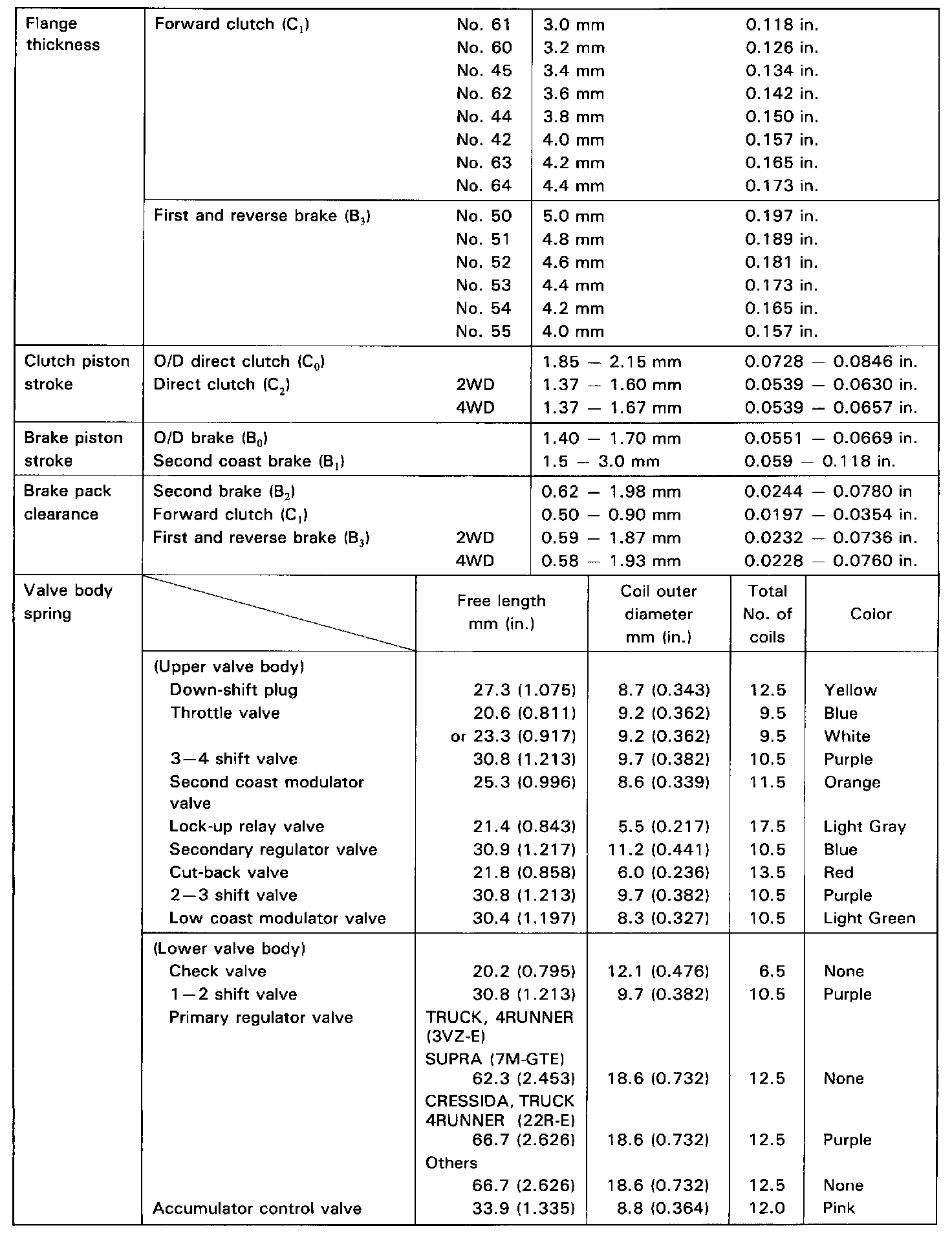

Service Data: A340E; A340F; A340H:
Service Data: A340E; A340F; A340H:
Service Data: A340E; A340F; A340H:
A340F Only:

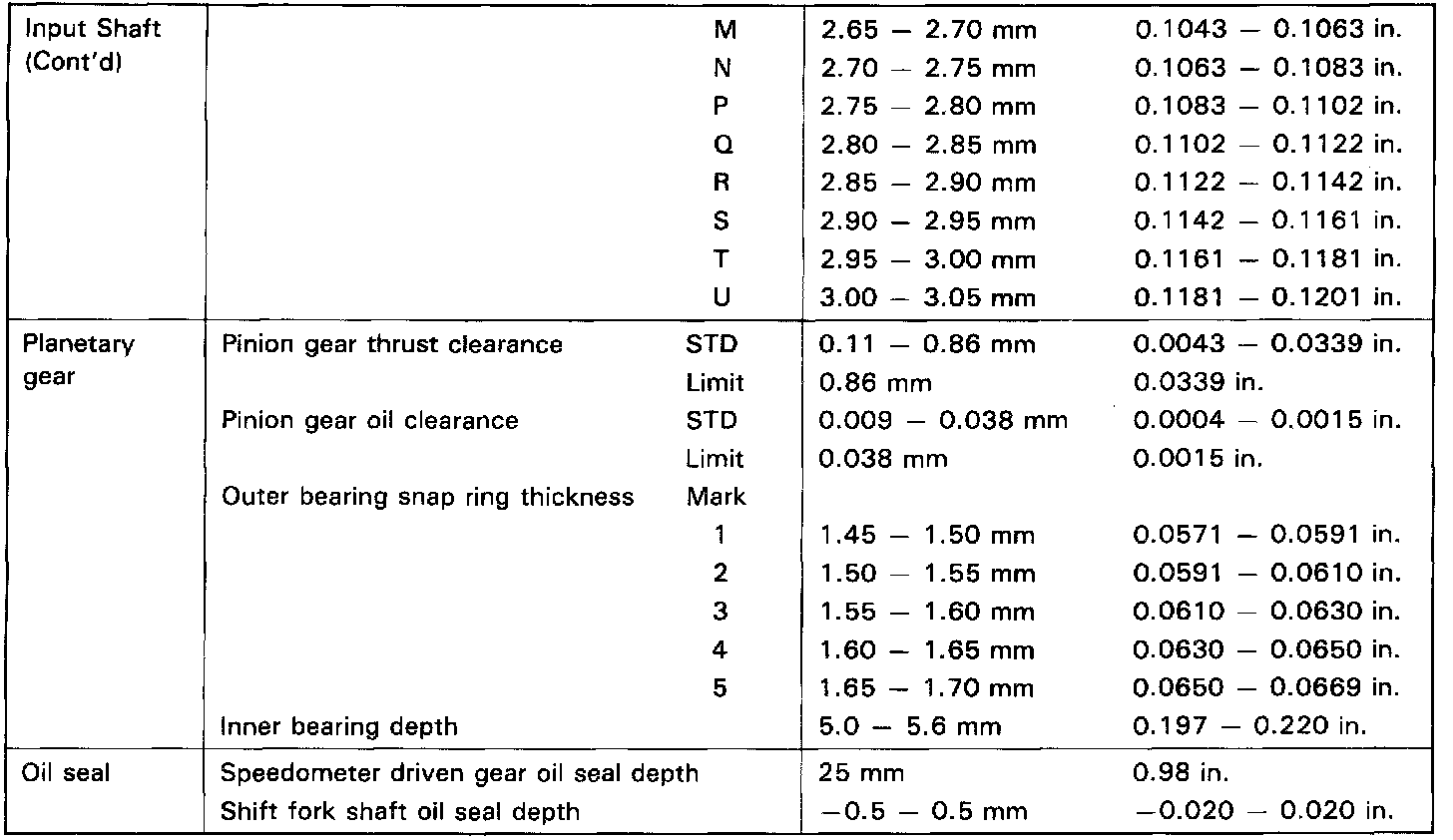

Transfer Service Data

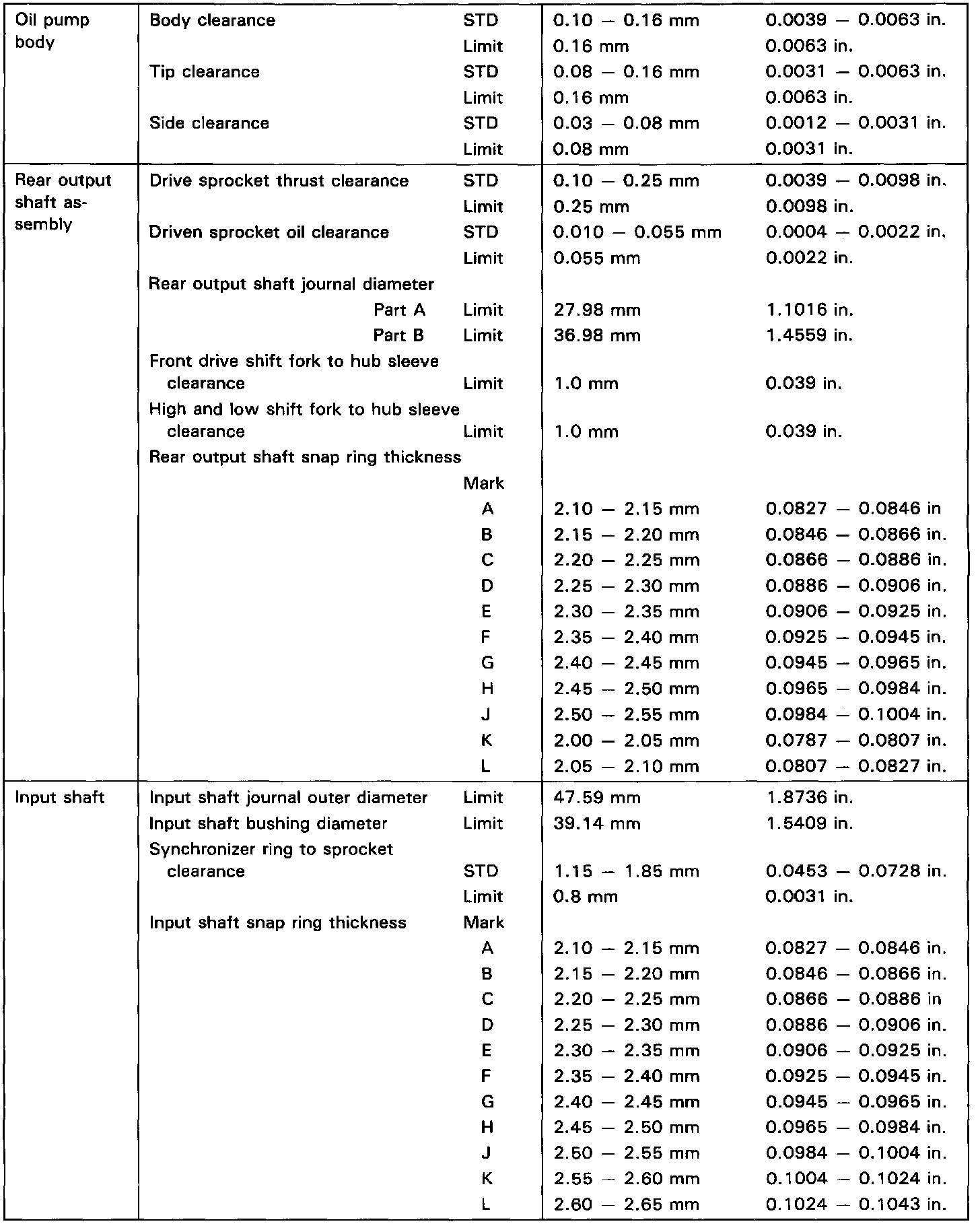

A340F Transfer:
A340F Transfer:
