Chart 20 Stop Light Switch
Chart 20 Stop Light Switch
# 20.
Stop Light Switch

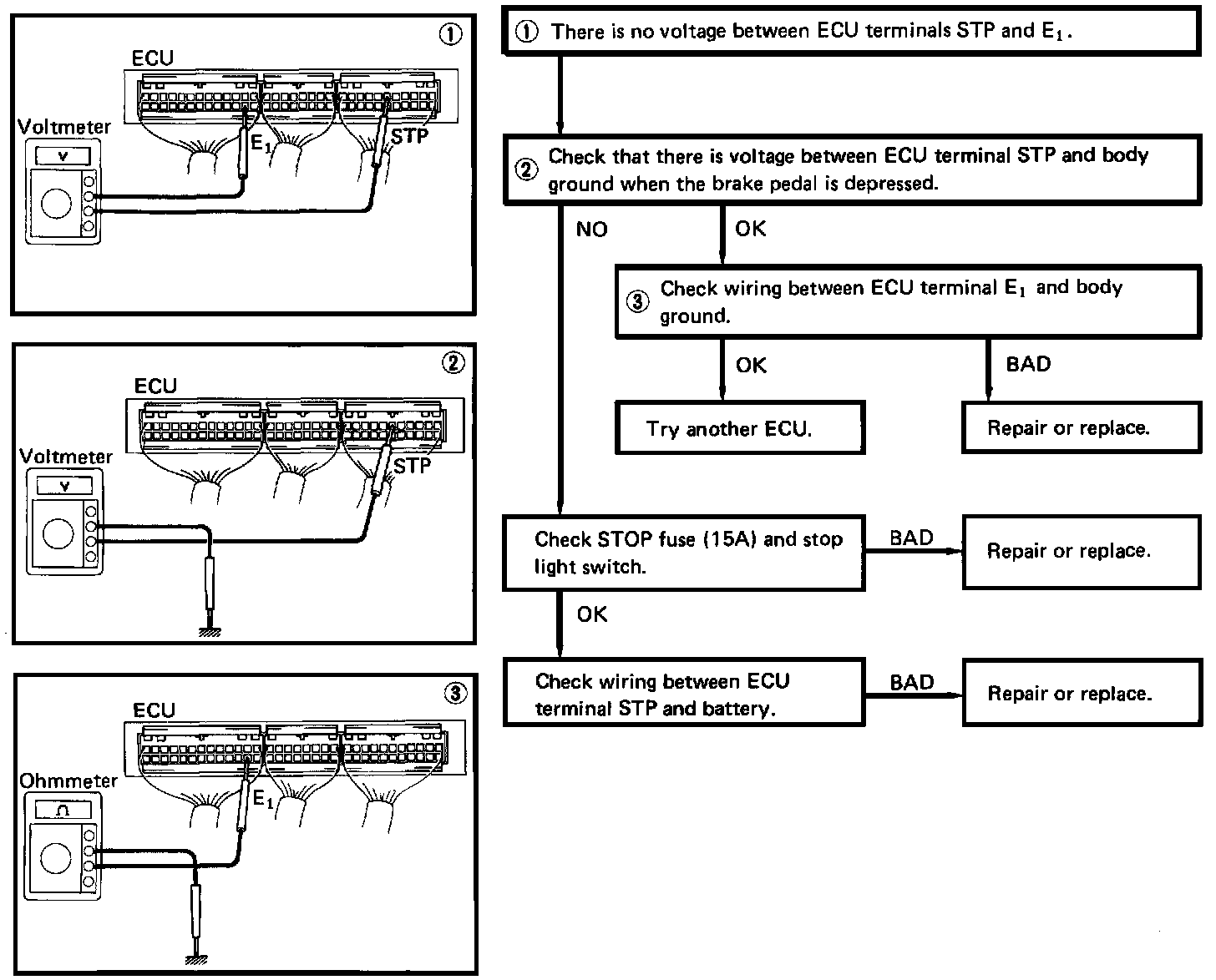

# 20. Stop Light Switch:
Stop Light Switch
# 20. Stop Light Switch:

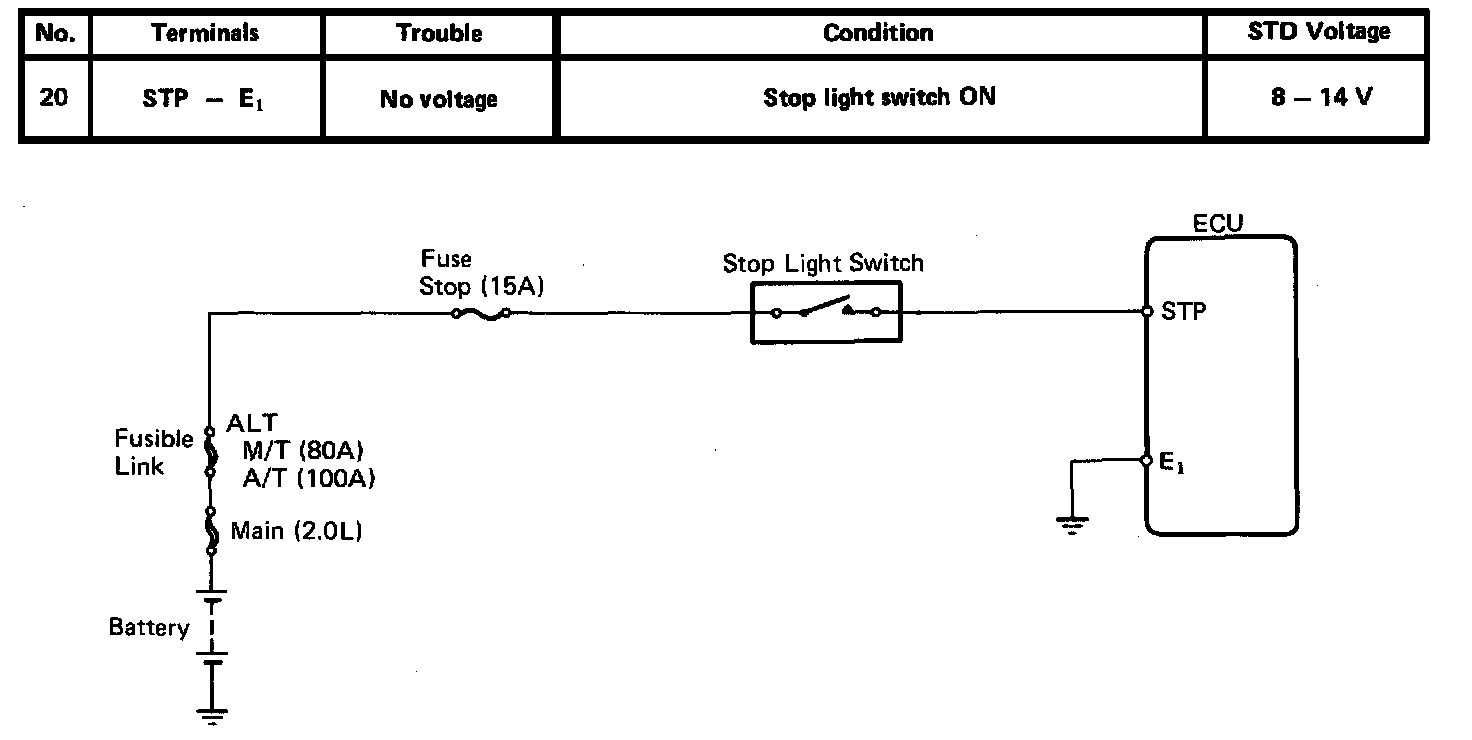

Wiring Diagram / Condition
