Chart 19 Cold Start Injector/Injector Time Switch
Chart 19 Cold Start Injector/Injector Time Switch
# 19.
Cold Start Injector

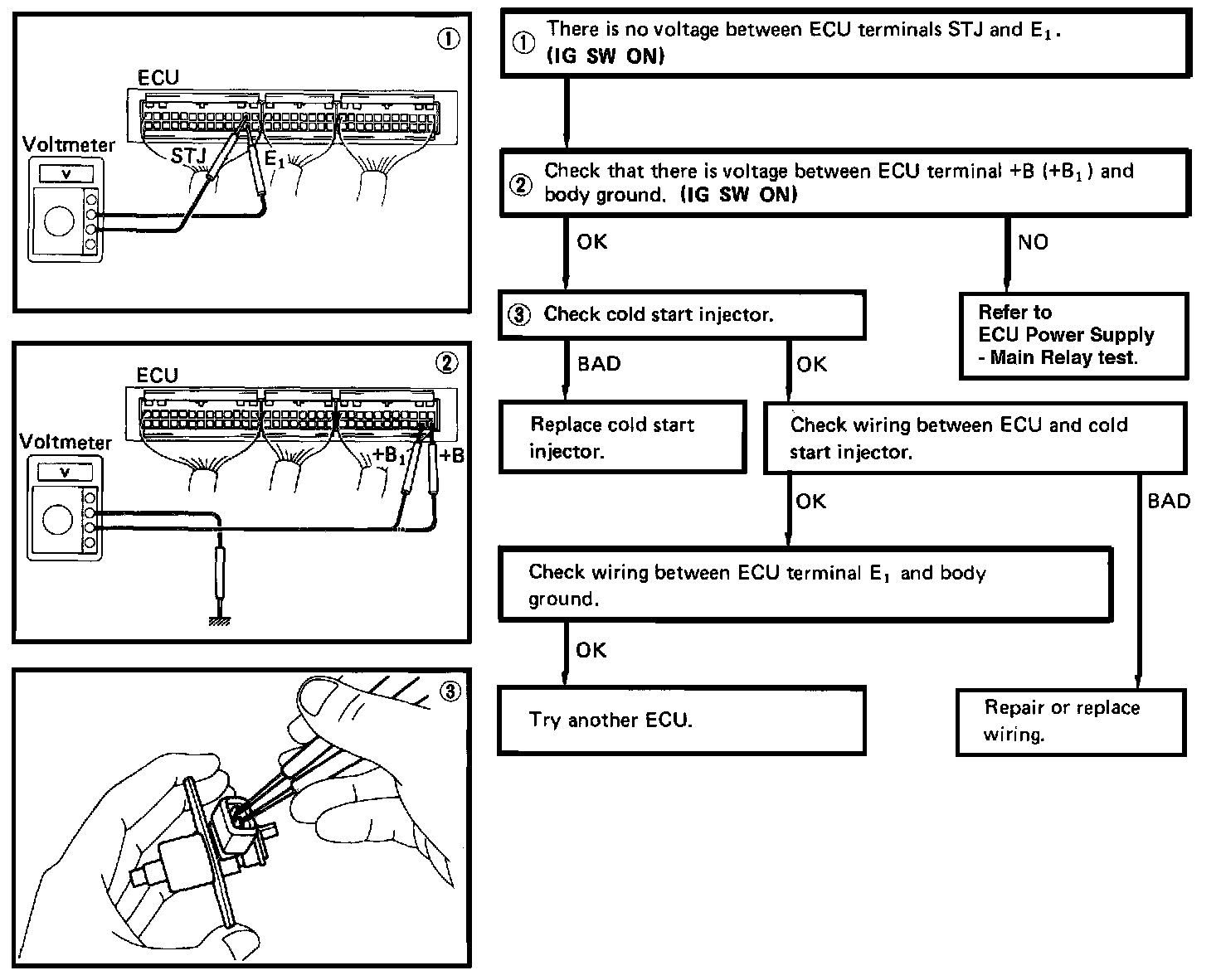

# 19. Cold Start Injector:
Cold Start Injector
# 19. Cold Start Injector:

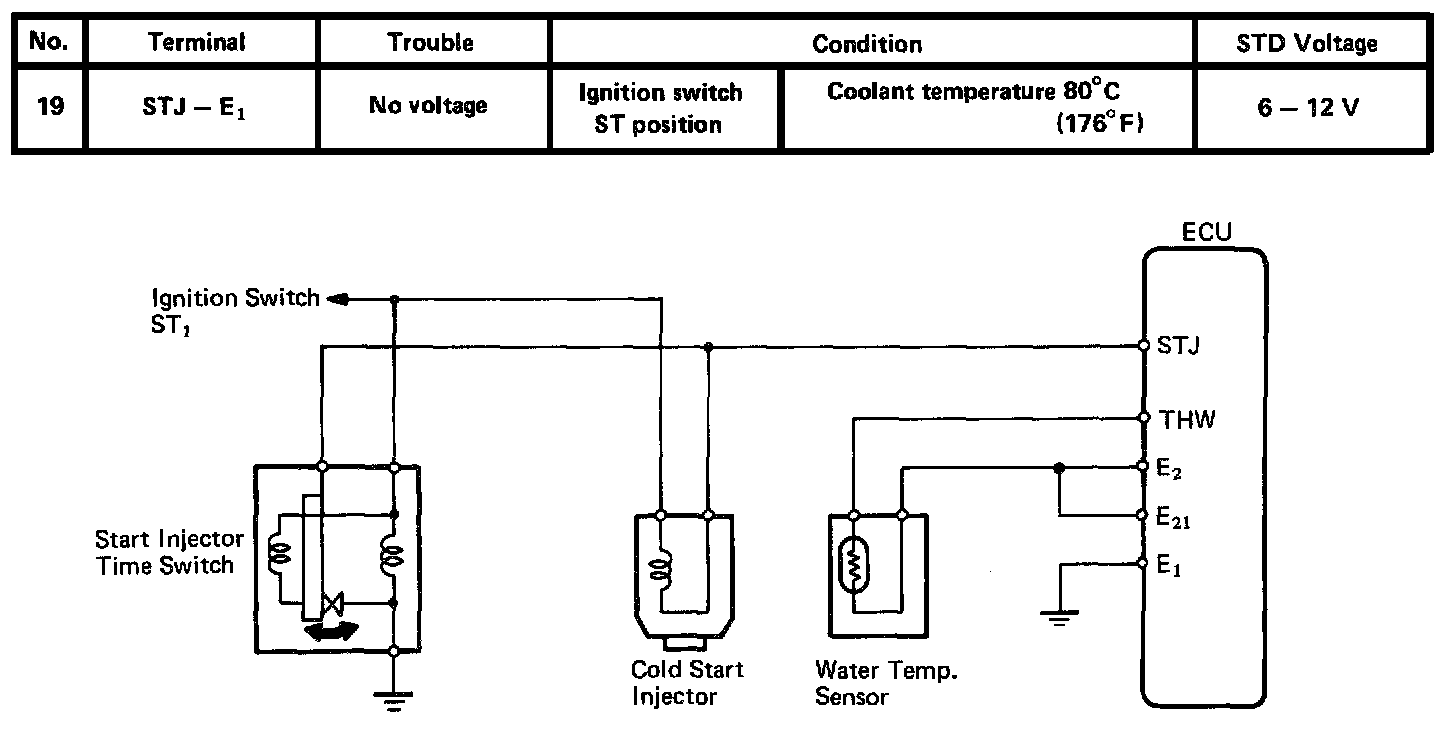

Wiring Diagram / Condition
