Chart 18 Check Engine Warning Light


# 18. Check Engine Warning Light

# 18. Check Engine Warning Light:

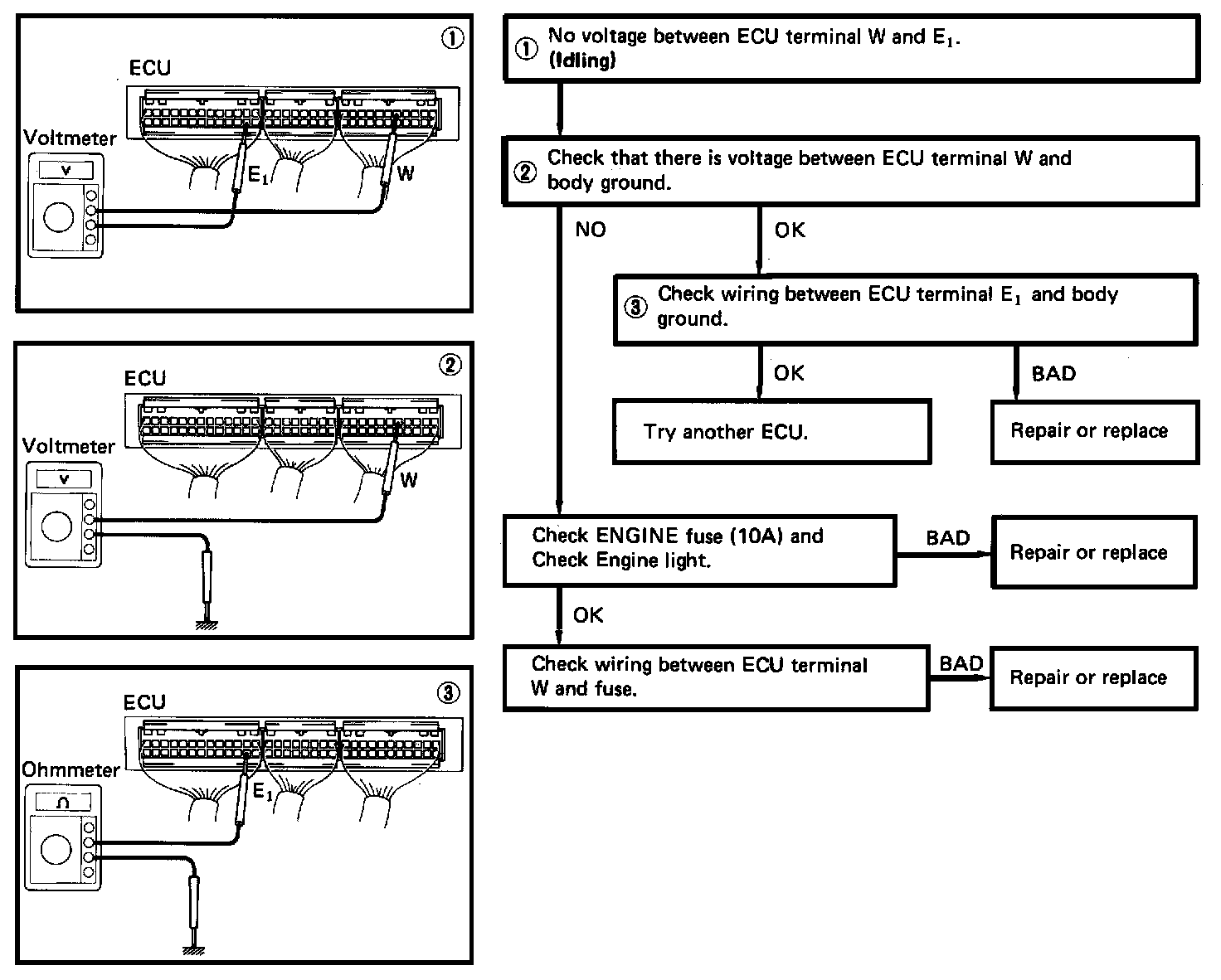

Check Engine Warning Light

# 18. Check Engine Warning Light:

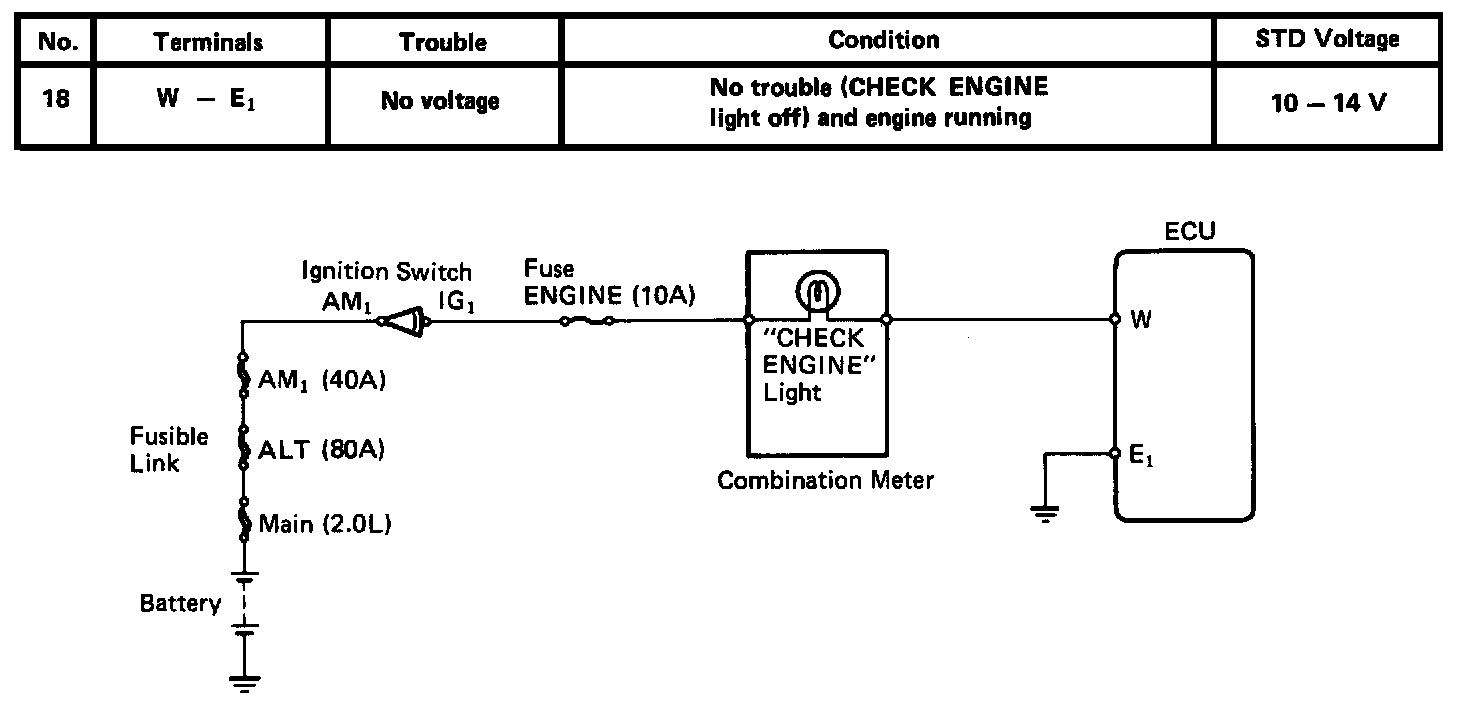

Wiring Diagram / Condition
