Chart 14 Water Temperature Sensor
Chart 14 Water Temperature Sensor
# 14.
Water Temperature Sensor

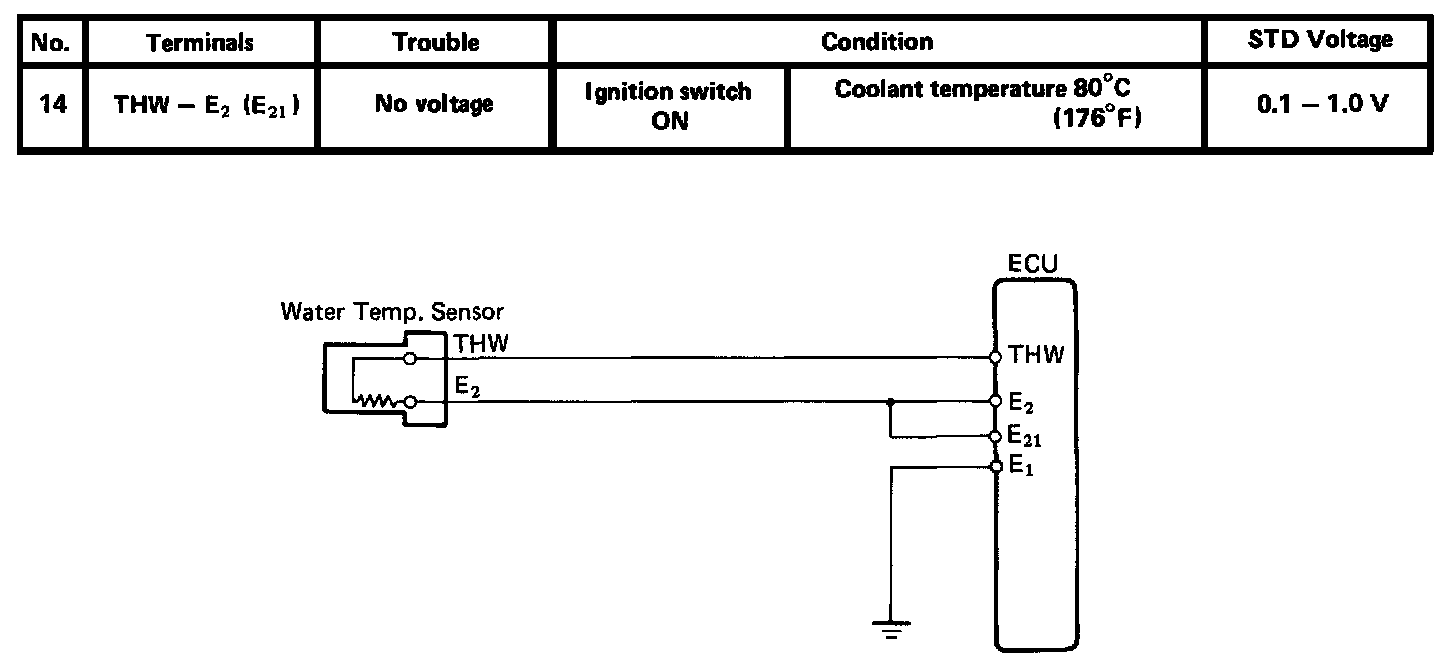

# 14. Water Temperature Sensor:
Water Temperature Sensor
# 14. Water Temperature Sensor:
Wiring Diagram / Condition
