Chart 13 Air Flow Meter / Air Temperature Sensor

# 13. Air Flow Meter / Air Temperature Sensor

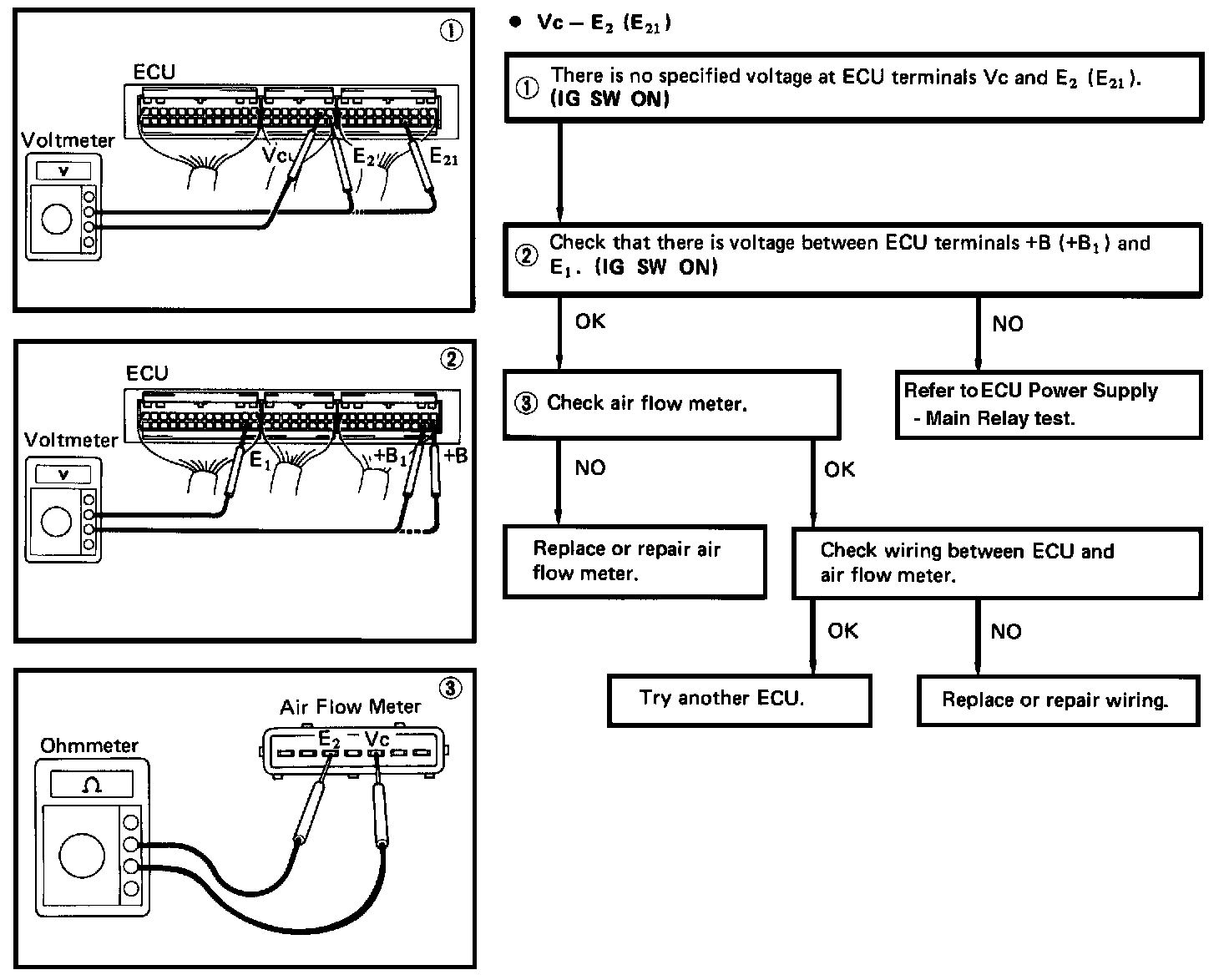

Air Flow Meter (Vc - E2 [E21])

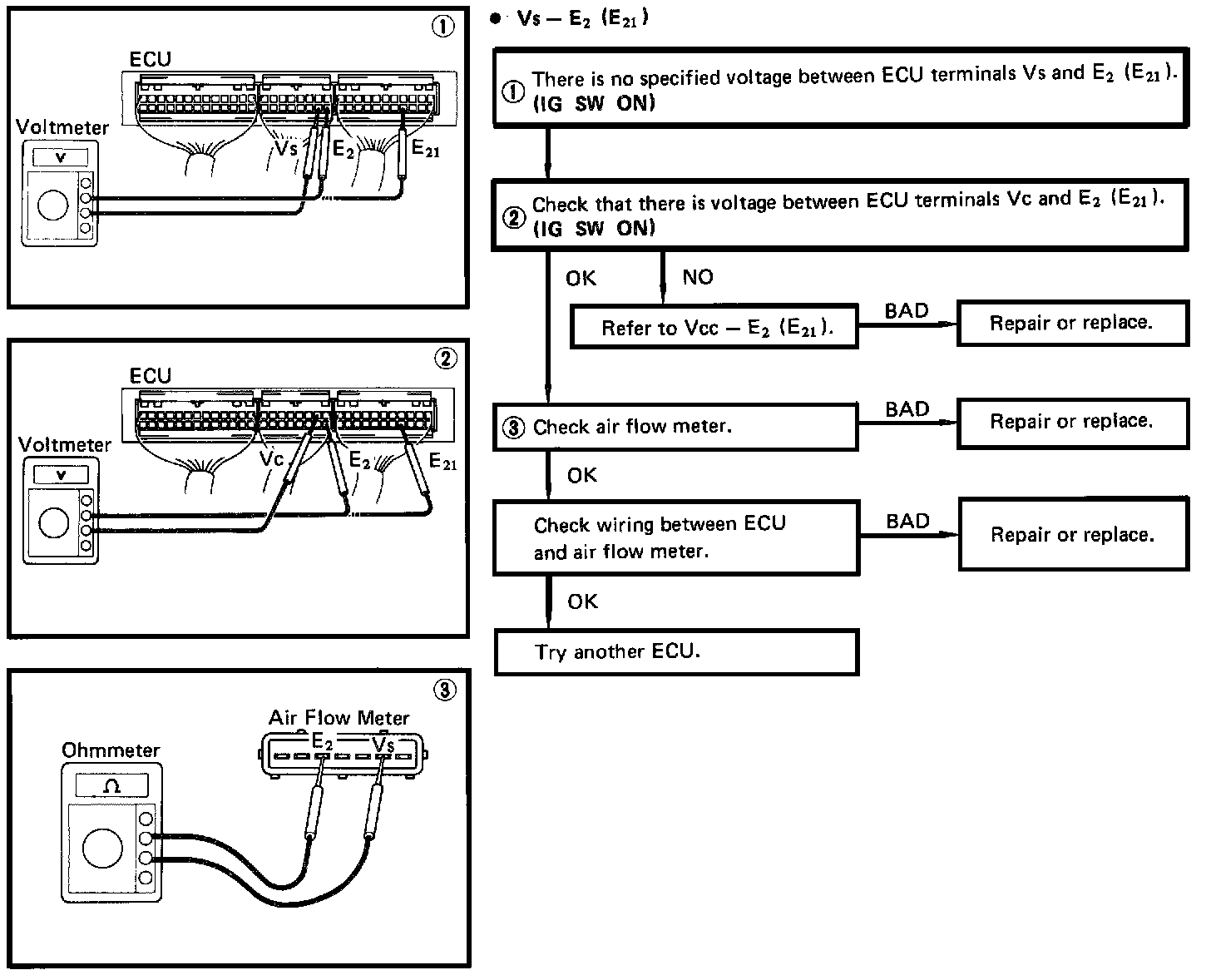

# 13. Air Flow Meter / Air Temperature Sensor (Vs - E2 [E21]):





Air Temperature Sensor (Vs - E2 [E21])

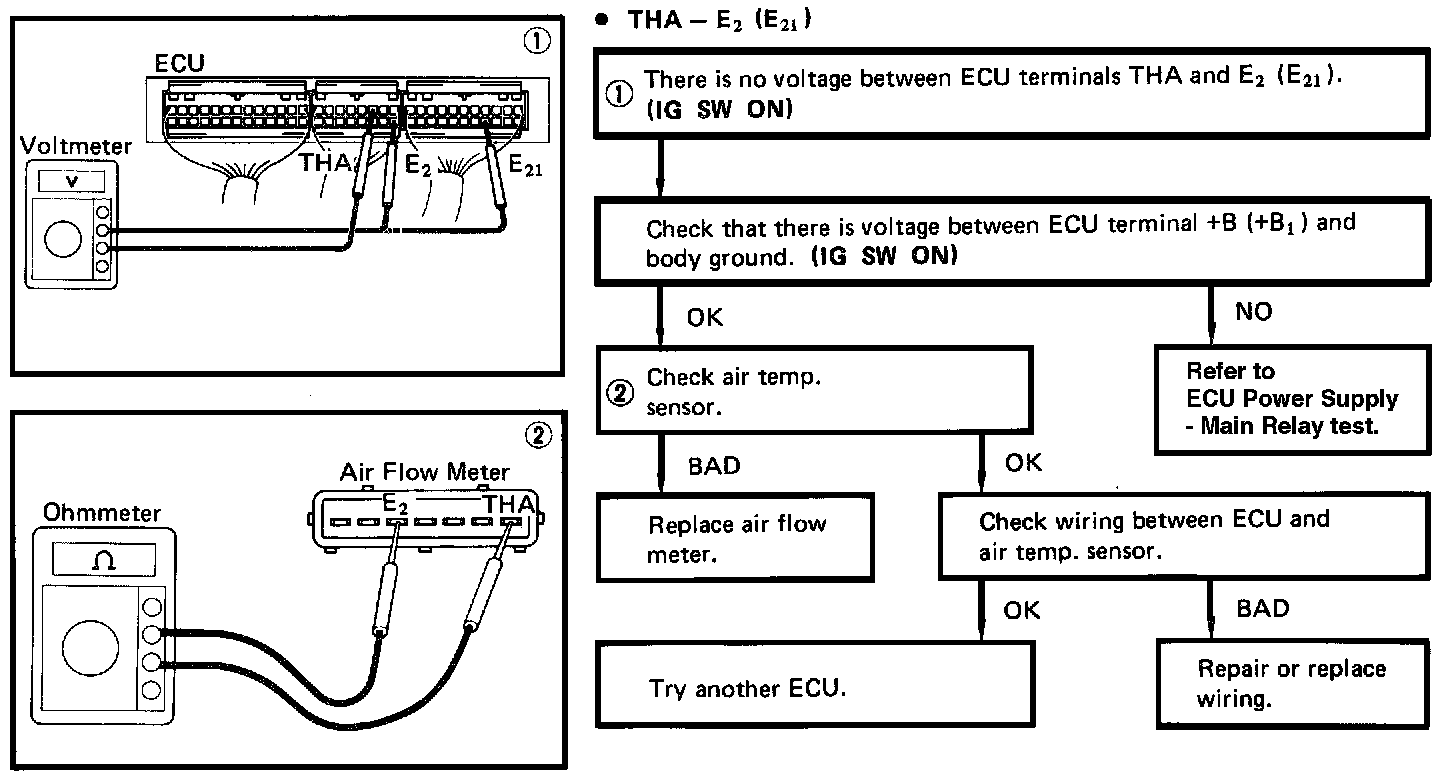

Air Temperature Sensor (THA - E2 [E21])

# 13. Air Flow Meter / Air Temperature Sensor:

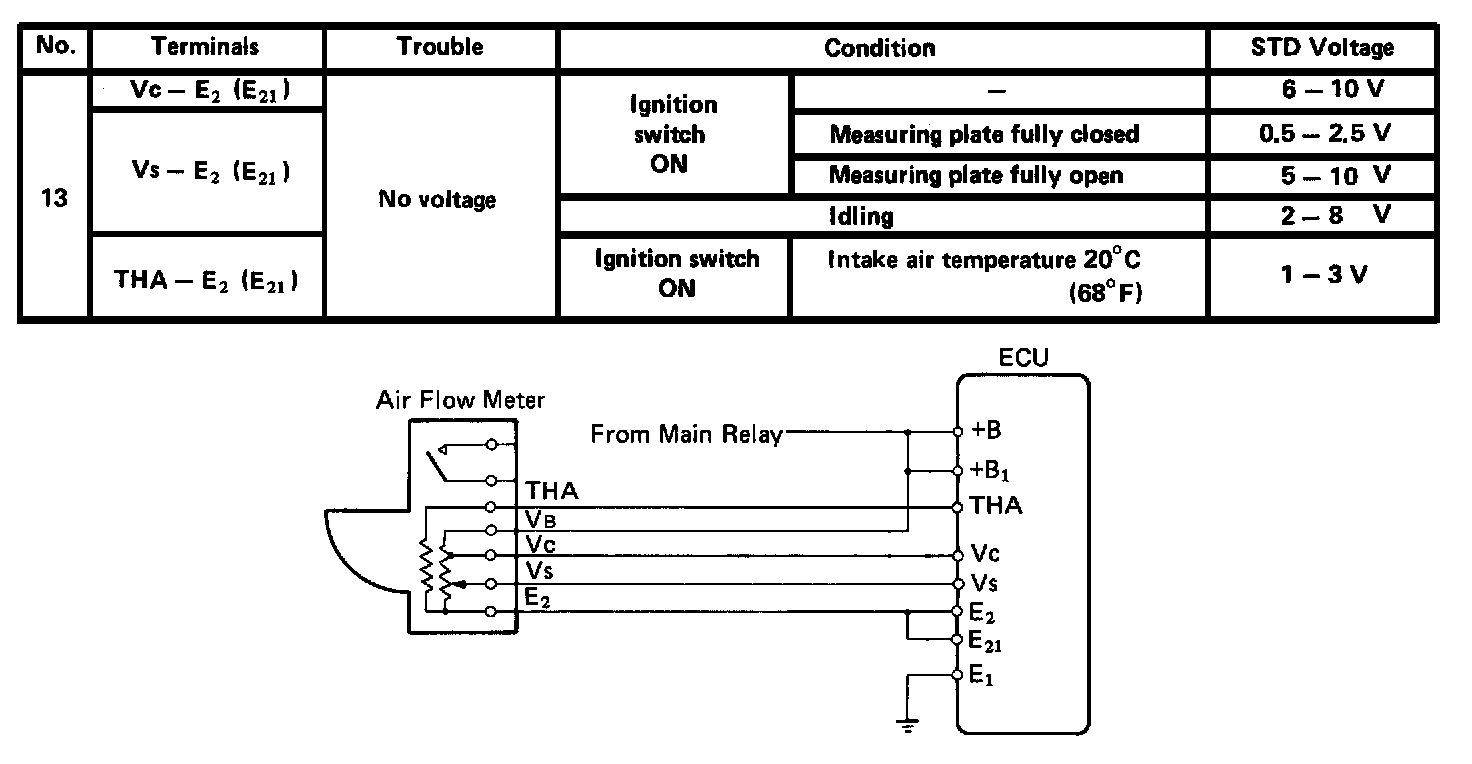

Wiring Diagram / Condition
