Except 4 WD Automatic Transmission
Except 4 WD Automatic Transmission

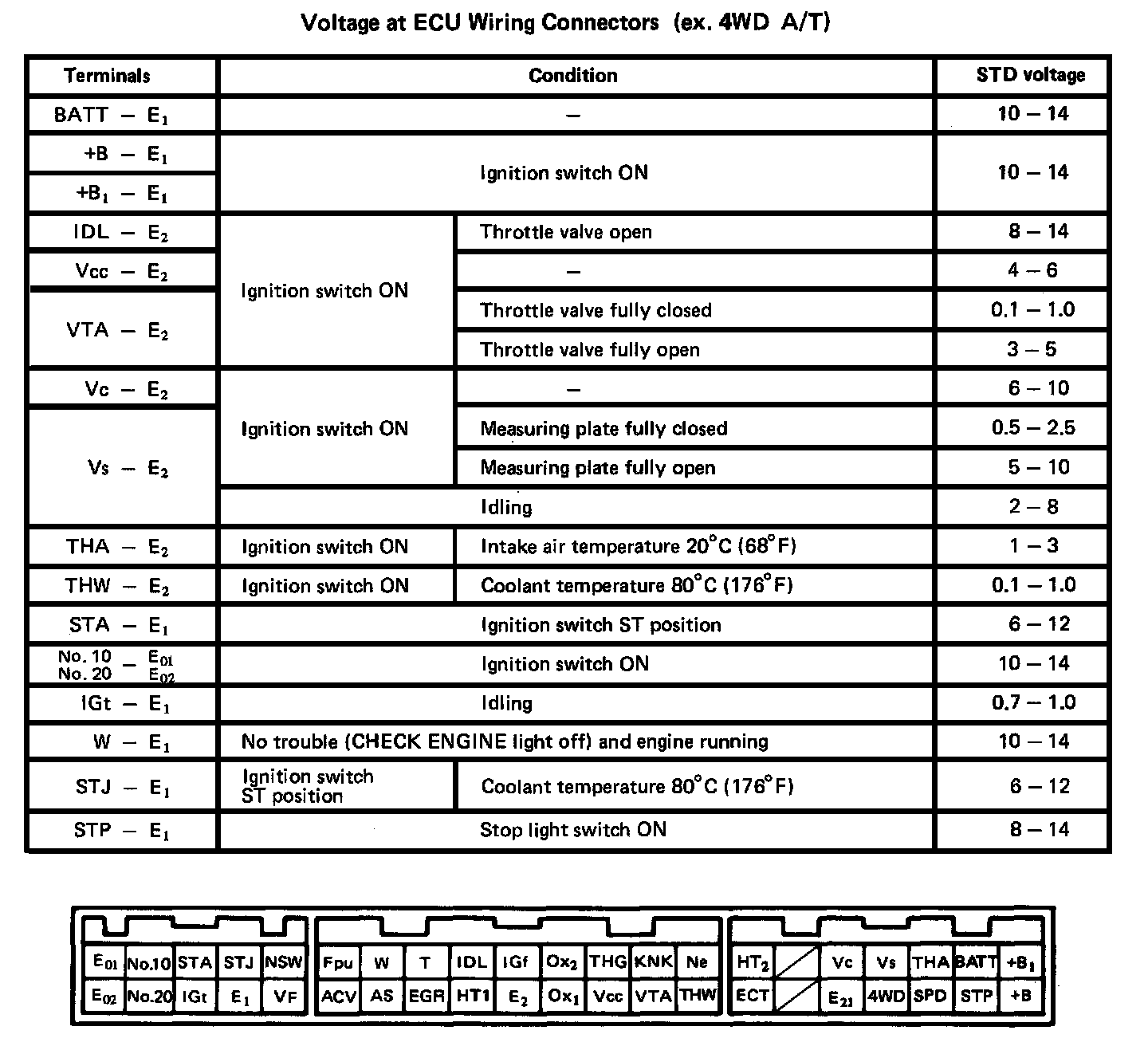

Voltage At ECU Wiring Connectors (22R-E) {except 4WD A/T}:
Resistance At Engine (and ECT) ECU Wiring Connectors:
