Home >> Toyota Truck >> 1990 >> Pickup 2WD L4-2366cc 2.4L SOHC (22R) >> Repair and Diagnosis >> Specifications >> Pressure, Vacuum and Temperature Specifications >> Brake Proportioning/Combination Valve

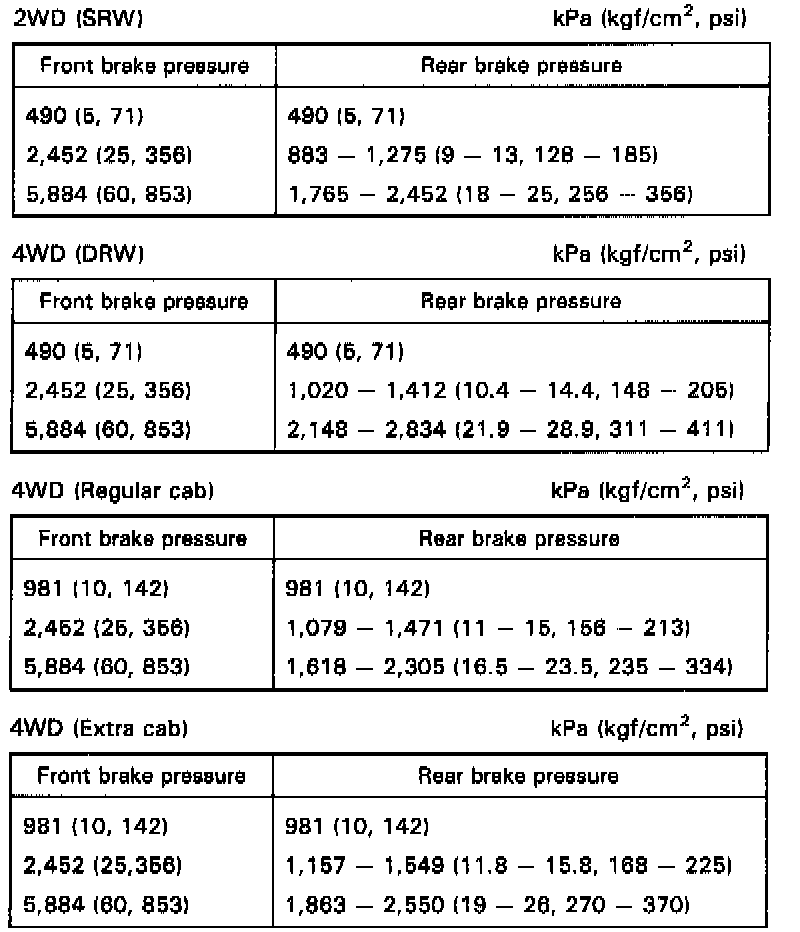

Brake Proportioning/Combination Valve

NOTE: Check the brake pressures with the valve body set at the uppermost position.
