Emission Control Systems: Locations

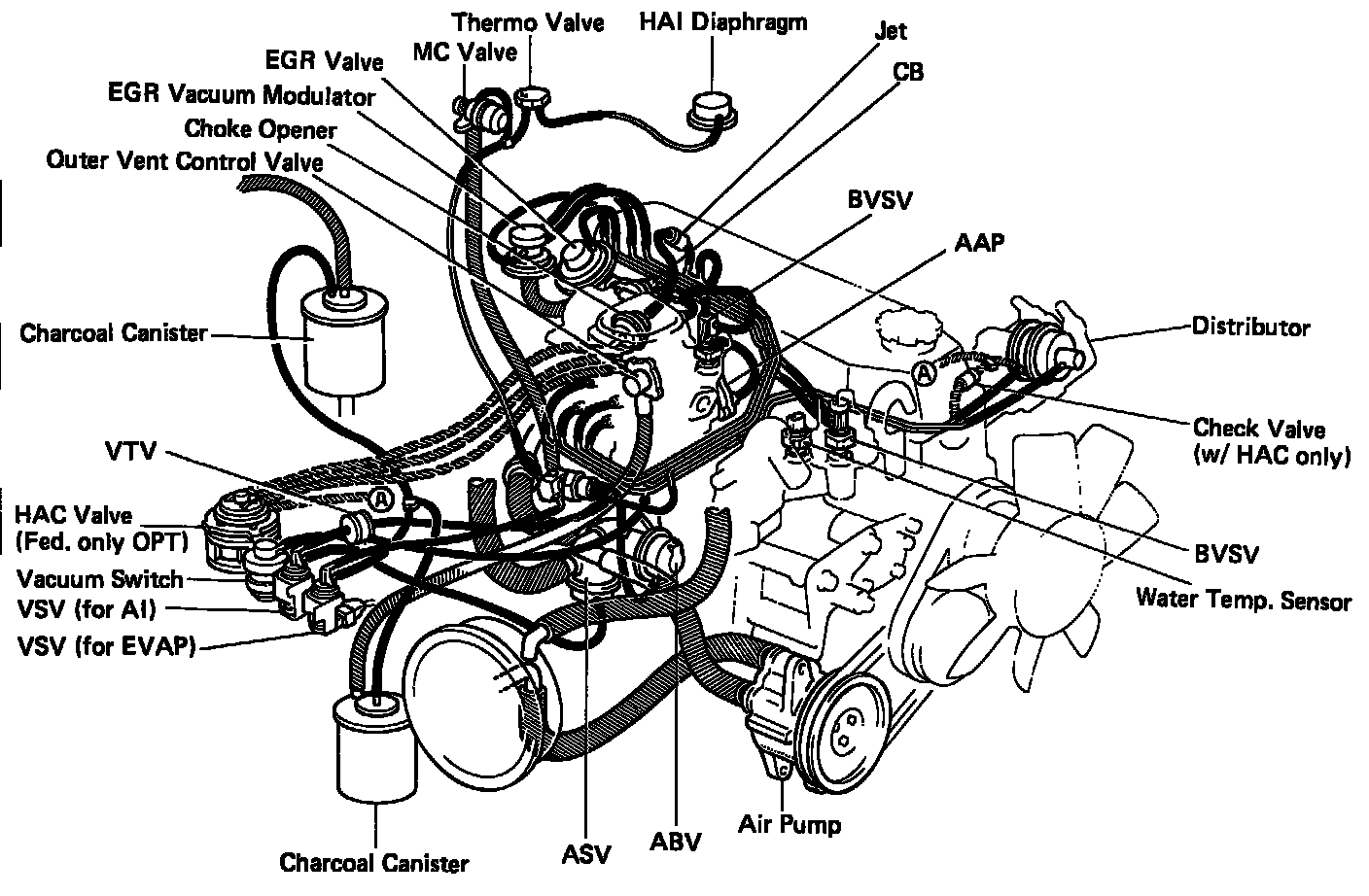

Component Layout (Federal & Canada):

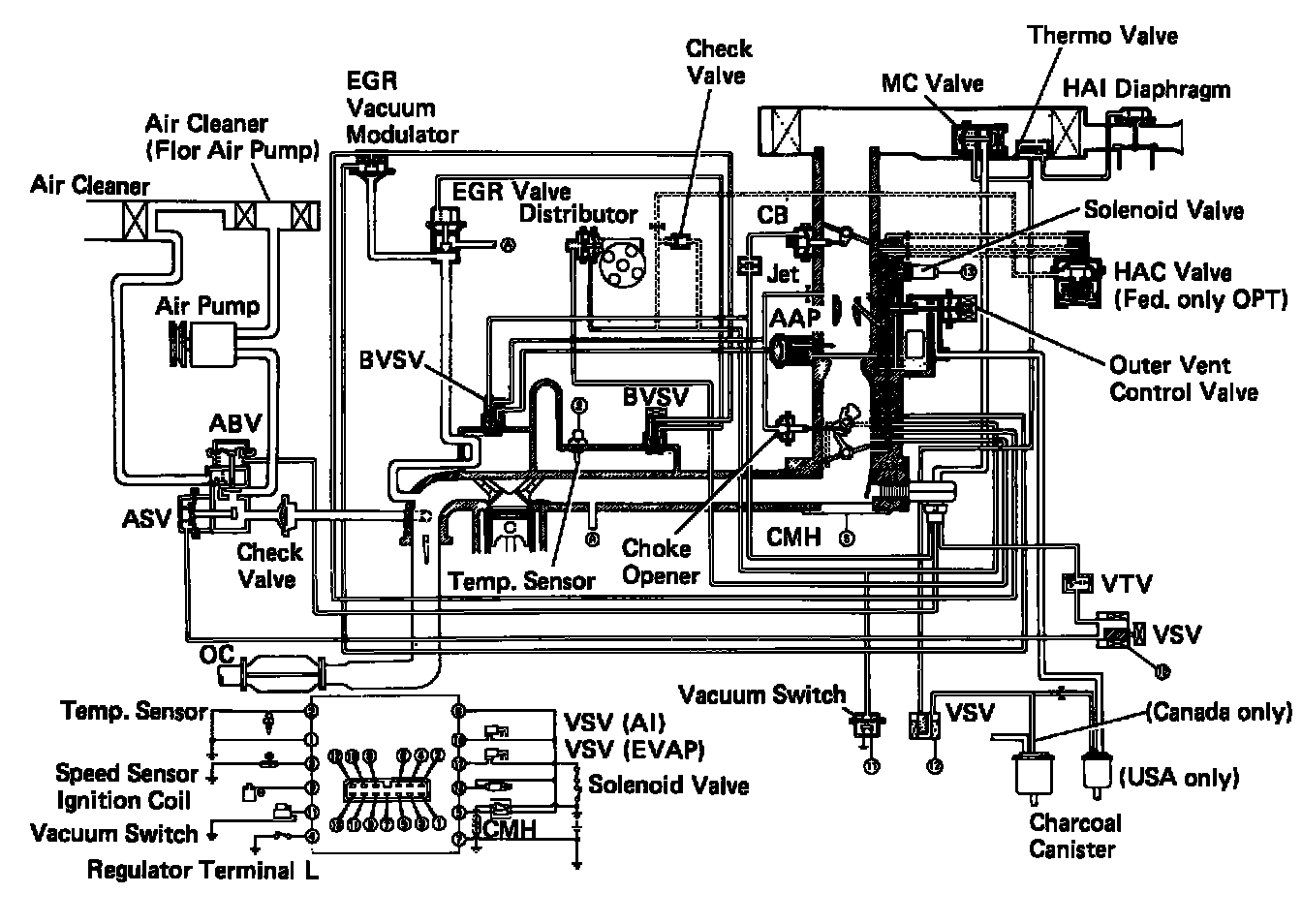

Schematic Drawing (Federal & Canada):
