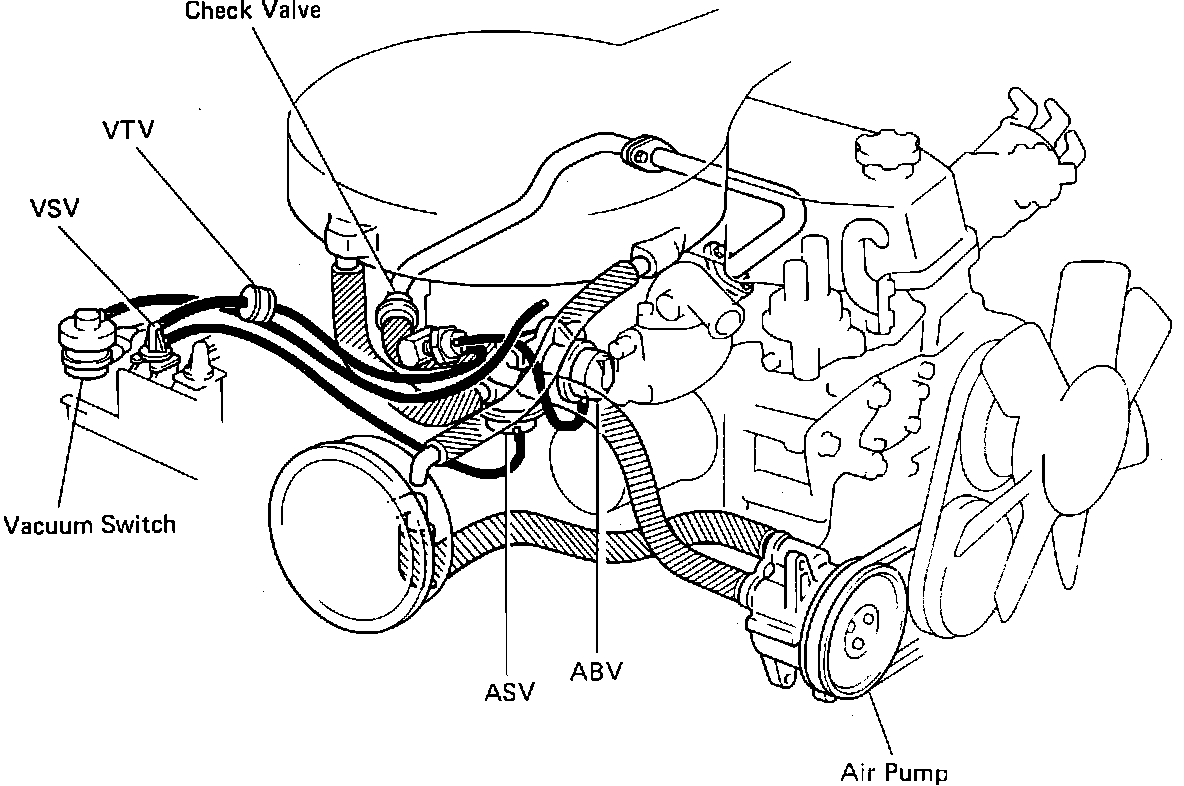

Air Injection: Locations

Air Injection System:

Air By-pass Valve (ABV): Front, R.H. side of engine, (Integral part of ACV)
Air Control Valve (ACV): Front, R.H. side of engine
Air Pump: Lower, front of engine
Air Pump Air Cleaner: R.H. side of engine compartment
Air Switching Valve (ASV): Front, R.H. side of engine, (Integral part of ACV)
Check Valve: R.H. side of engine
Vacuum Switch: R.H. side of engine
Vacuum Switching Valve (VSV): R.H. side of engine
Vacuum Transmitting Valve (VTV): R.H. side of engine, in vacuum line
