Toyota Truck
>>
1990
>>
Pickup 2WD L4-2366cc 2.4L SOHC (22R)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Junction Block
Junction Block

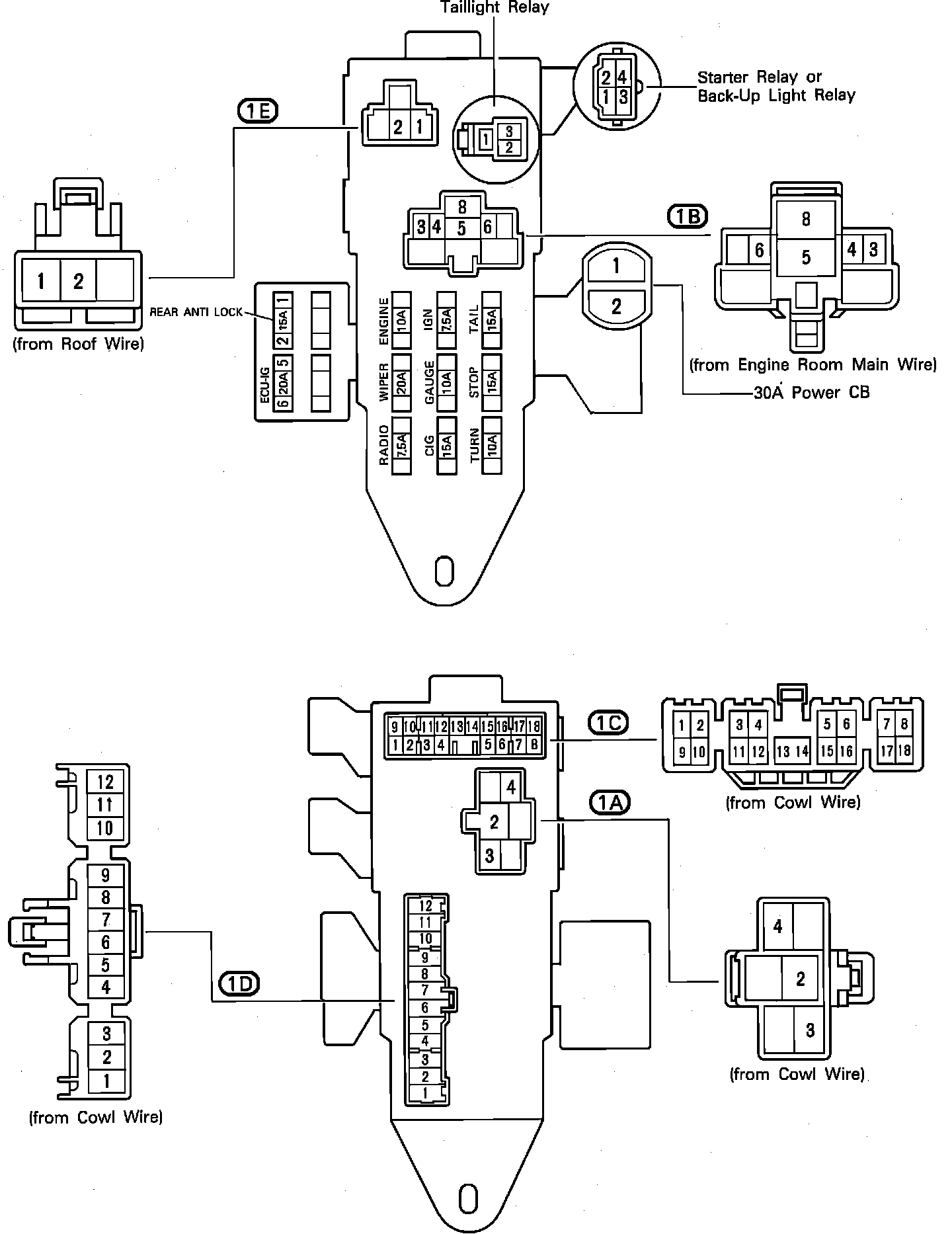

Fuse Panel Junction Block: No. 1 (Left Kick Panel):

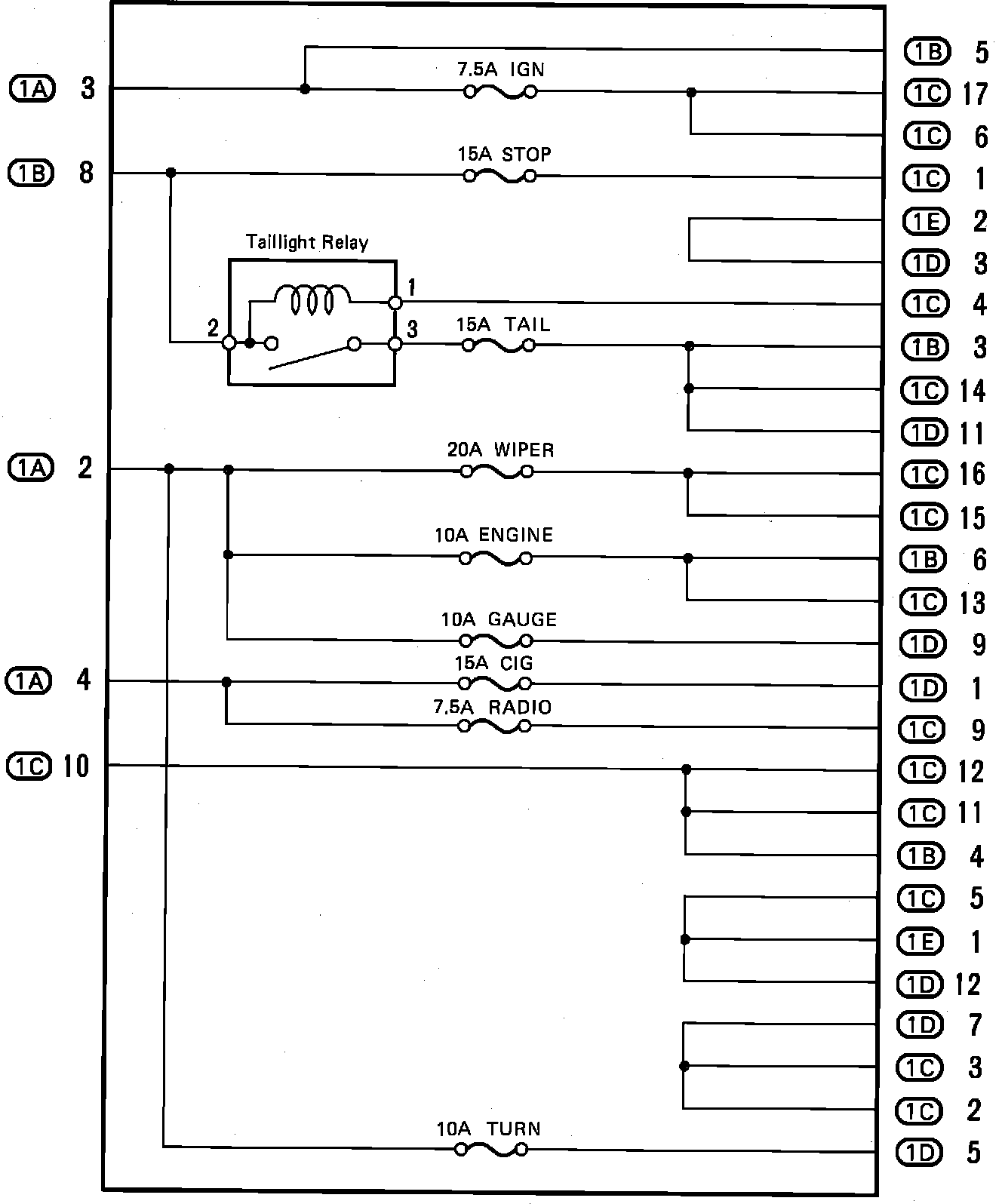

Fuse Panel Junction Block: No. 1 (Inner Circuit):
