Air Conditioning Switch: Testing and Inspection

A/C SWITCH ON-VEHICLE INSPECTION









1. Disconnect negative cable from battery.
2. Remove glove box.

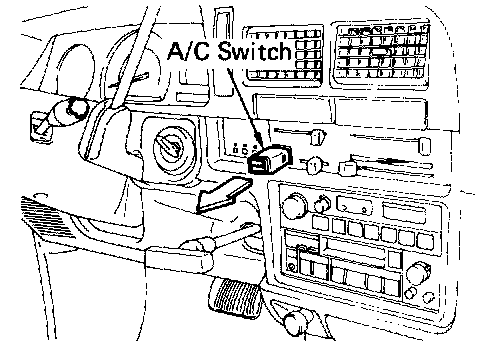

3. Remove A/C switch.
4. Check a/c switch for continuity.

^ Using an ohmmeter, check for continuity between the terminals for each switch position shown in the table. If there is no continuity, replace the A/C switch.

5. Install A/C switch.
6. Install glove box.
7. Connect negative cable to battery.
