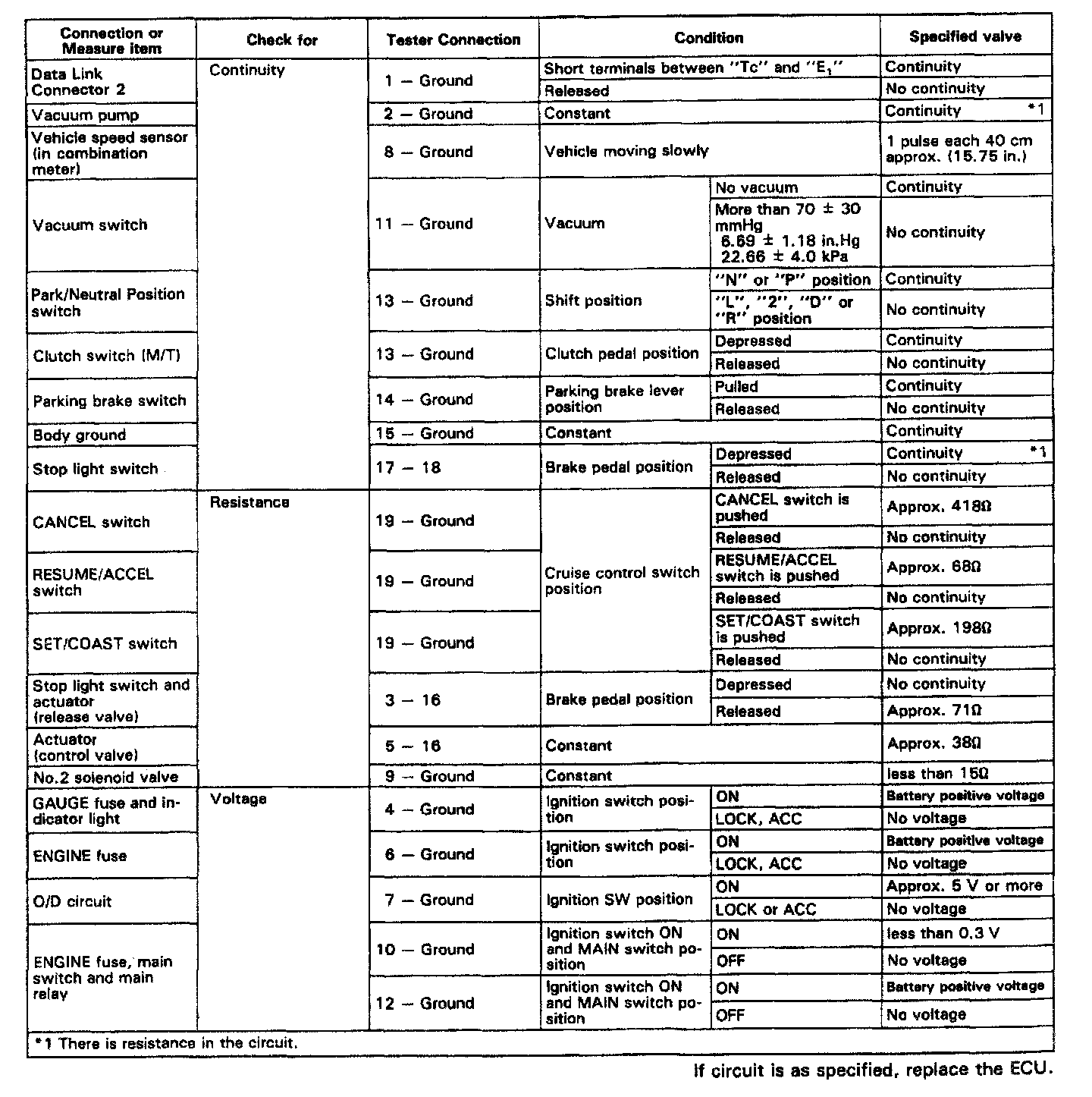

Control Module Pinout Values
Control Module Pinout Values

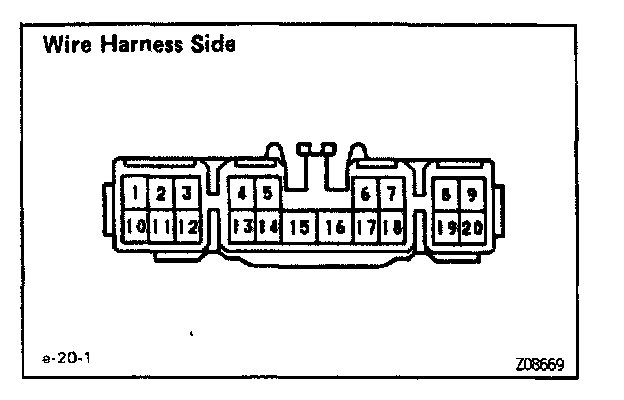

Disconnect the connector from the ECU and inspect the connector on the wire harness side, as shown.
