ABS Main Relay: Testing and Inspection


Control Relay. Pickup, 4Runner & T100:

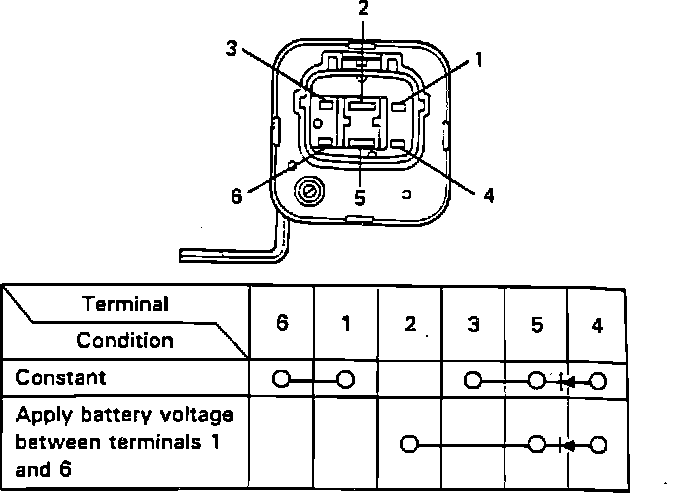

Refer to Fig. 66, for control relay testing procedure.
