Toyota Truck
>>
1990
>>
Pickup 2WD L4-144.4 2366cc 2.4L SOHC (22R-E)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Ignition Control Module
>>
Testing and Inspection
>>
Component Test
>>
Circuit Test
Circuit Test

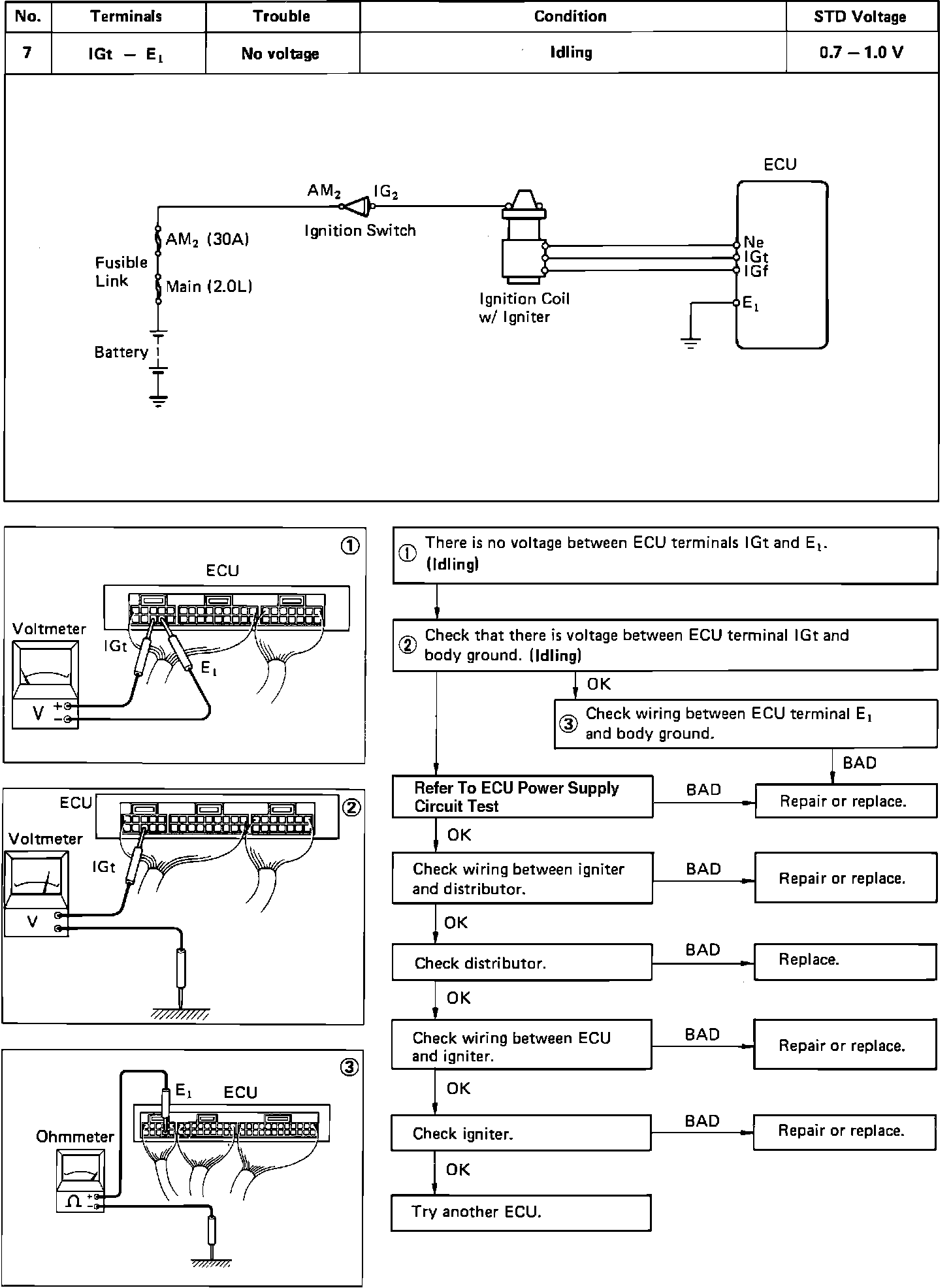

4 WHEEL DRIVE A/T:
Ignition Signal Circuit Test:

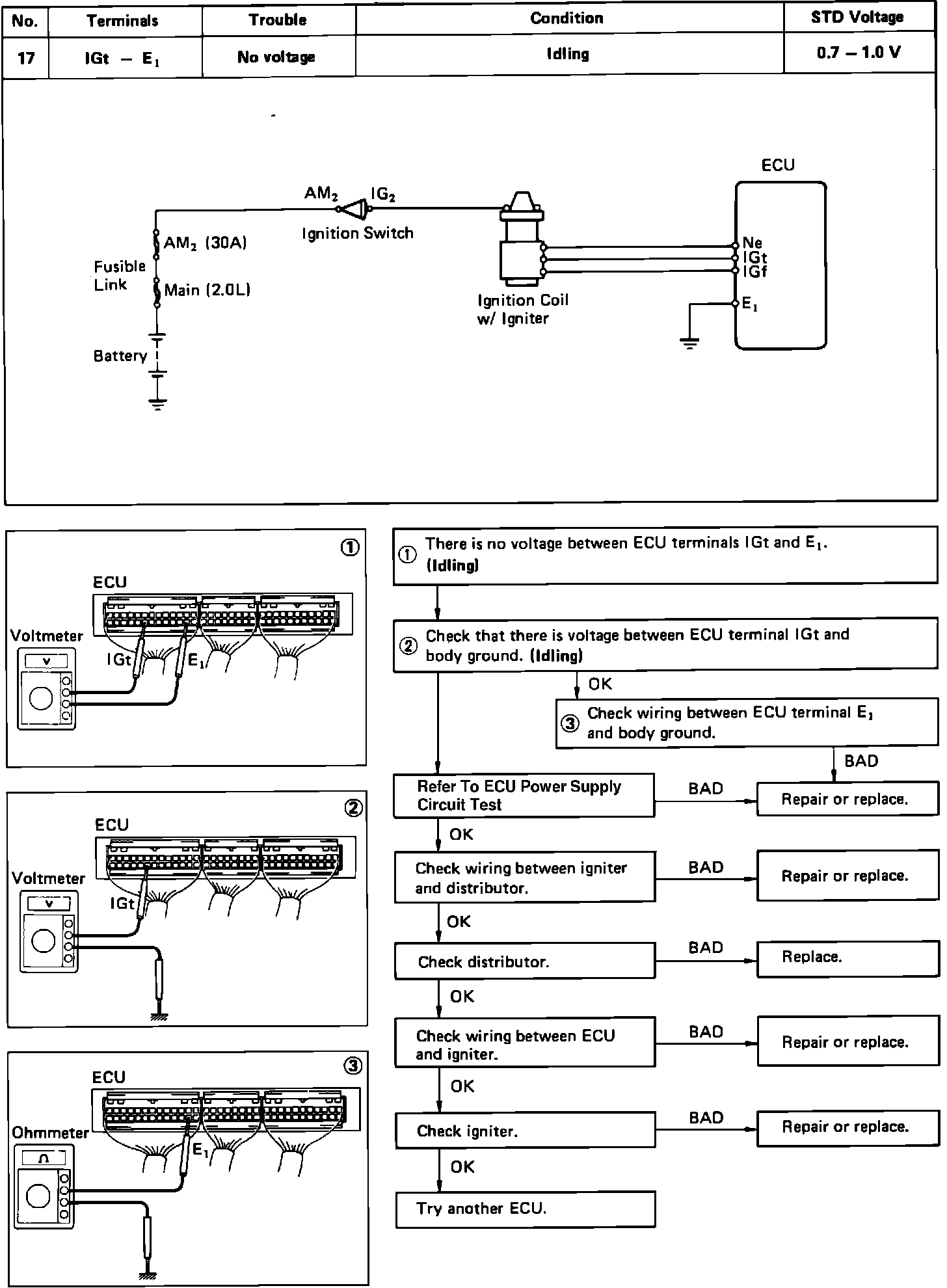

EXCEPT 4 WHEEL DRIVE A/T:
Ignition Signal Circuit Test:
