Chart 9 Cold Start Injector
Chart 9 Cold Start Injector
# 9.
Cold Start Injector

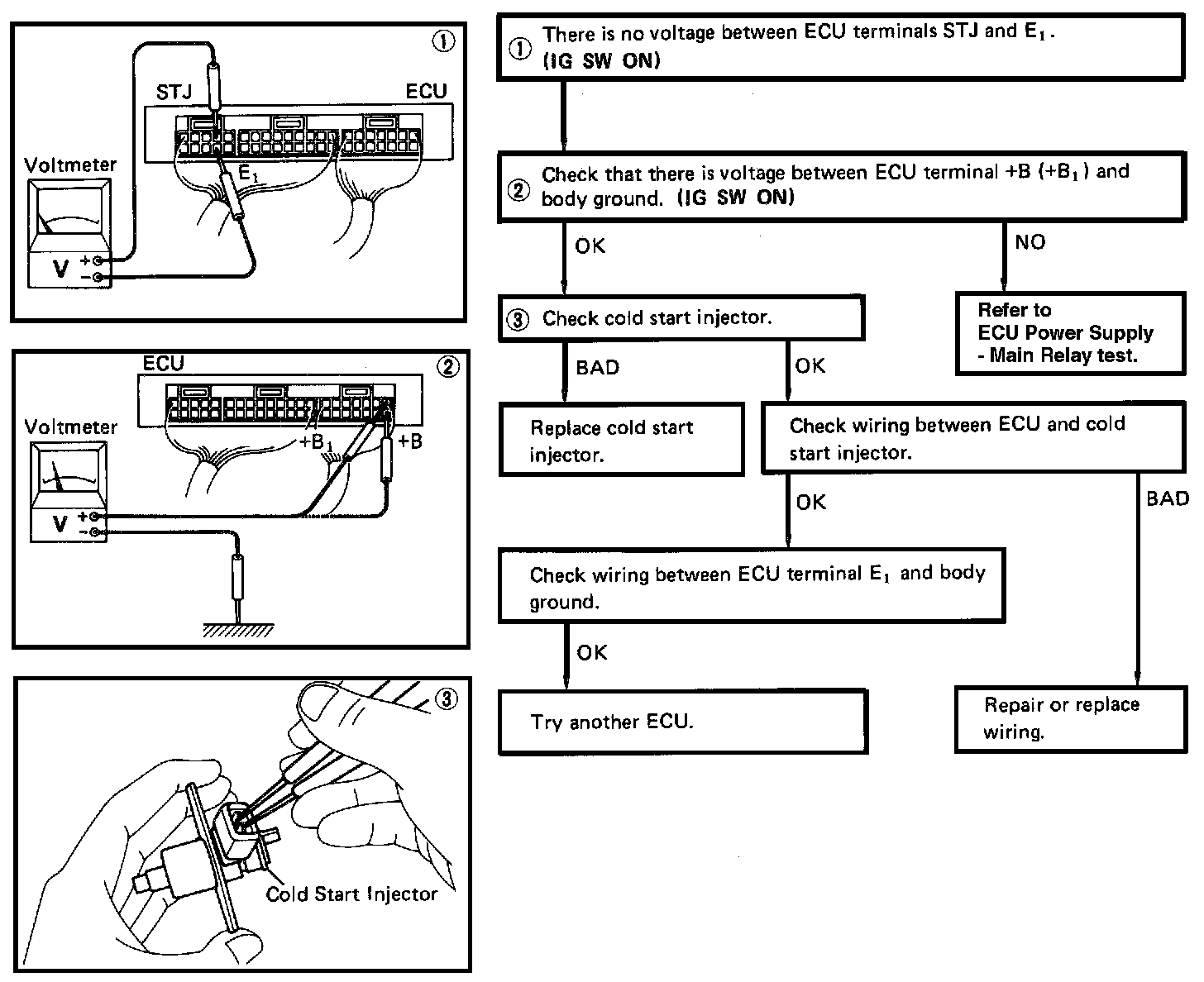

# 9. Cold Start Injector:
Cold Start Injector
# 9. Cold Start Injector:

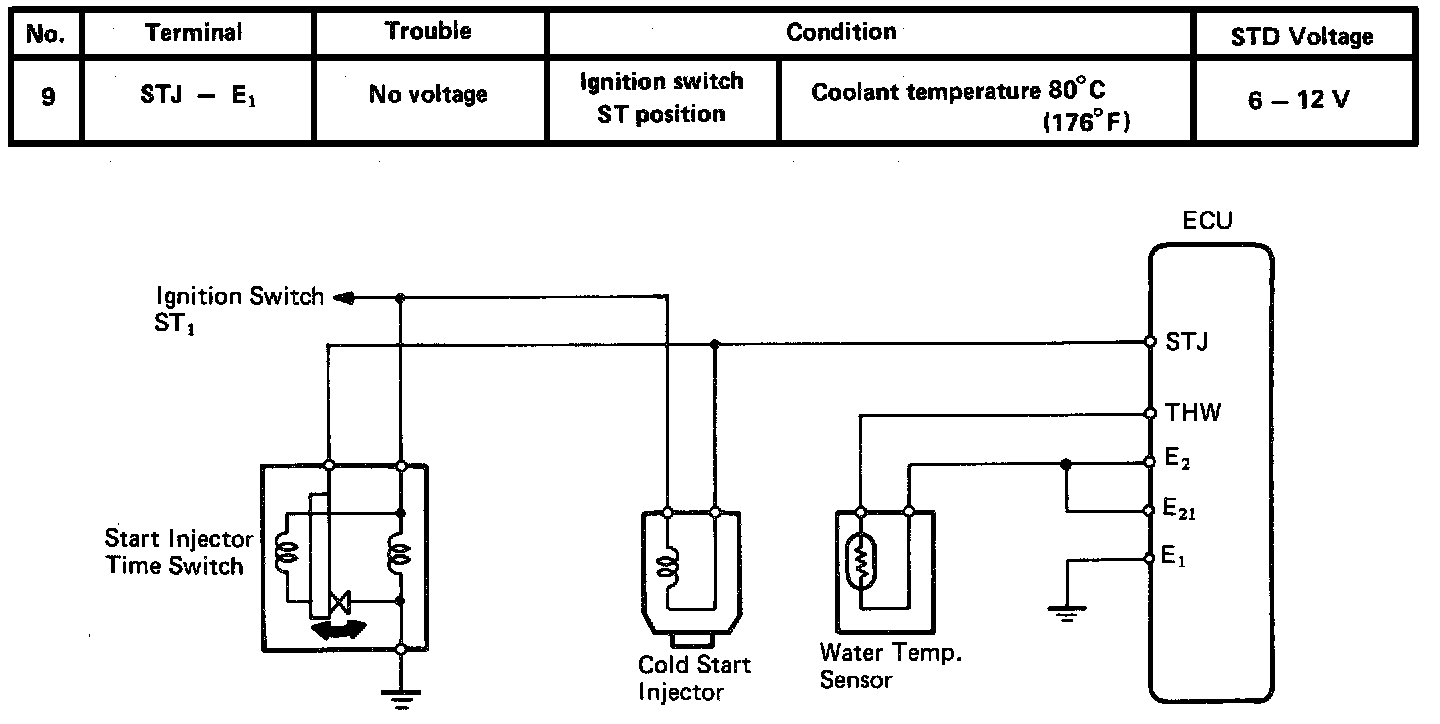

Wiring Diagram / Condition
