Chart 8 Check Engine Warning Light


# 8. Check Engine Warning Light

# 8. Check Engine Warning Light:





Check Engine Warning Light

# 8. Check Engine Warning Light:

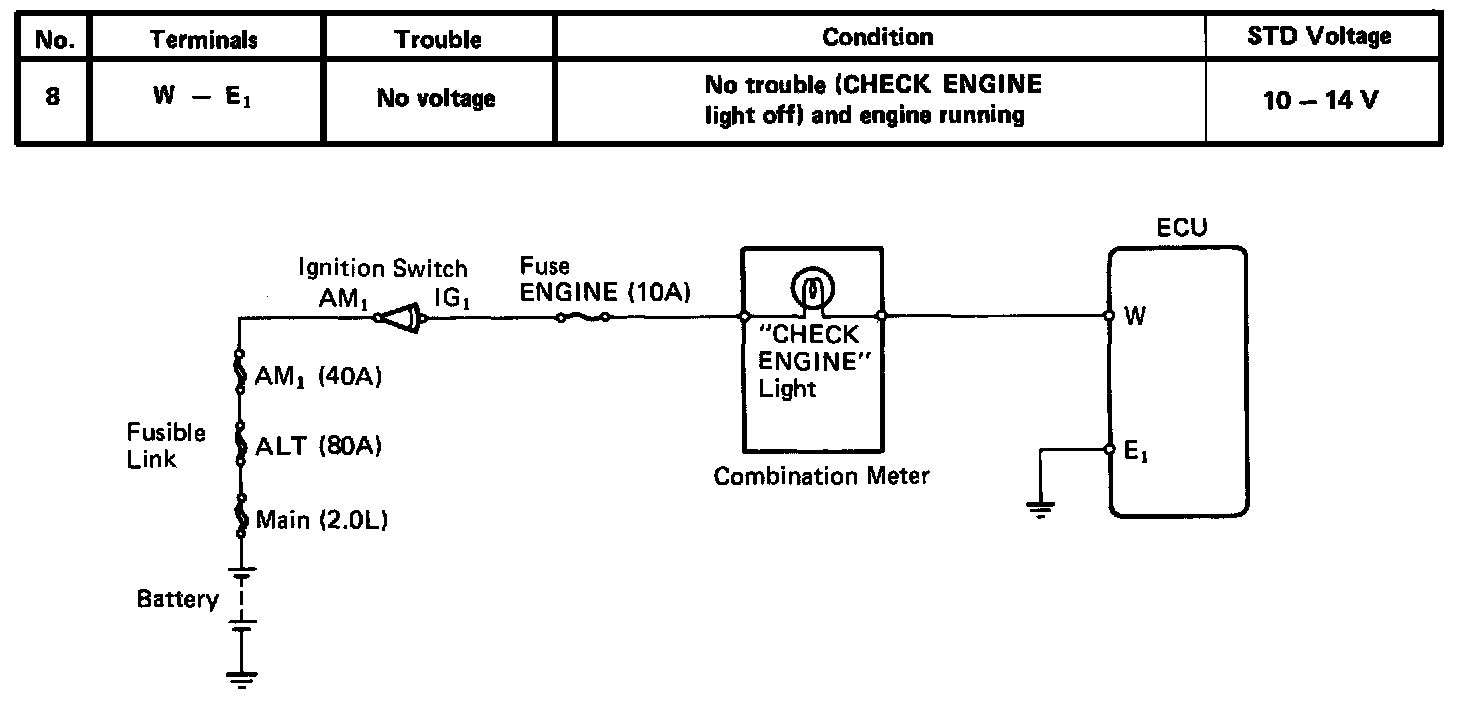

Wiring Diagram / Condition
