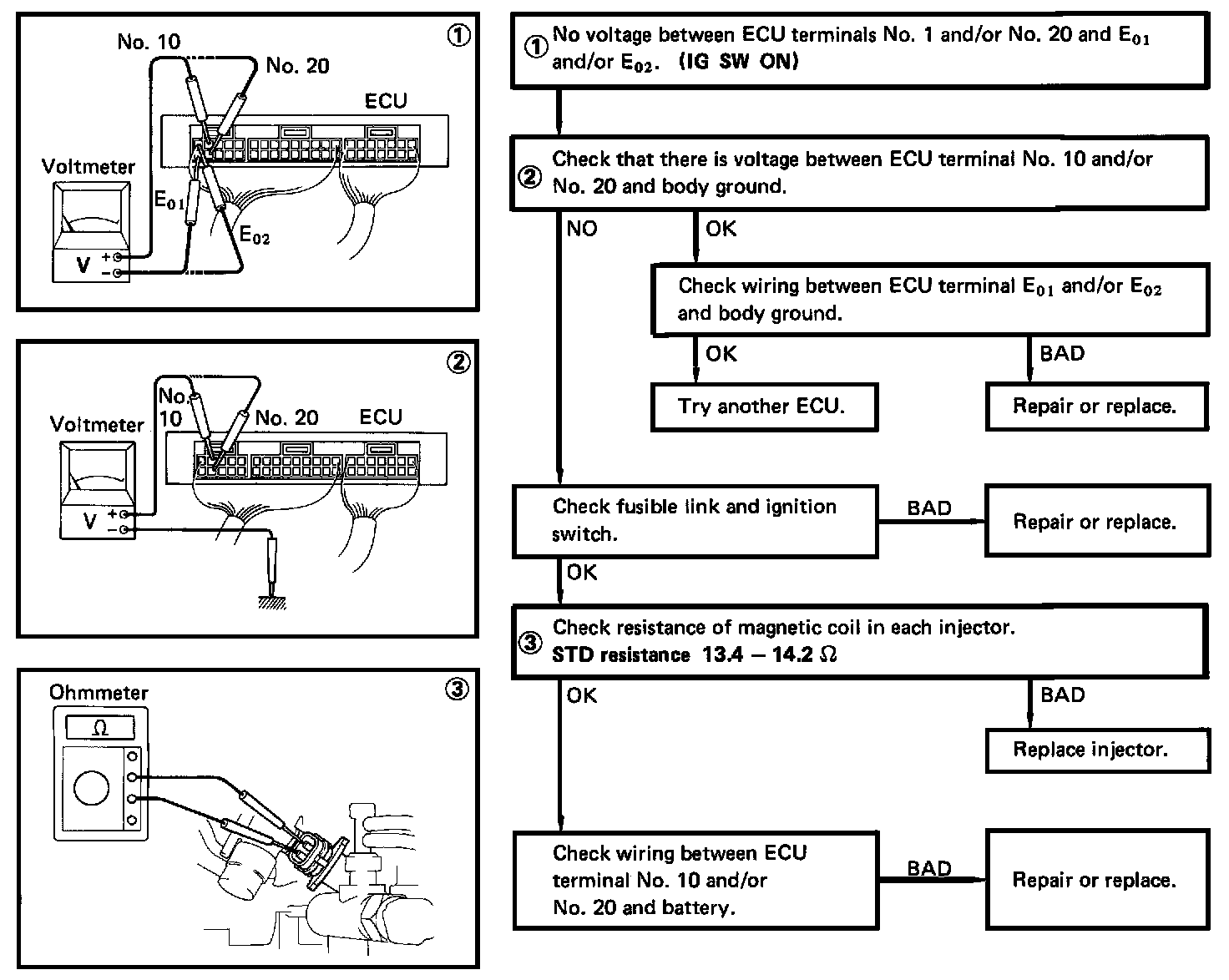

Chart 6 Fuel Injectors


# 6. Injectors

# 6. Injectors:





Injectors

# 6. Injectors:

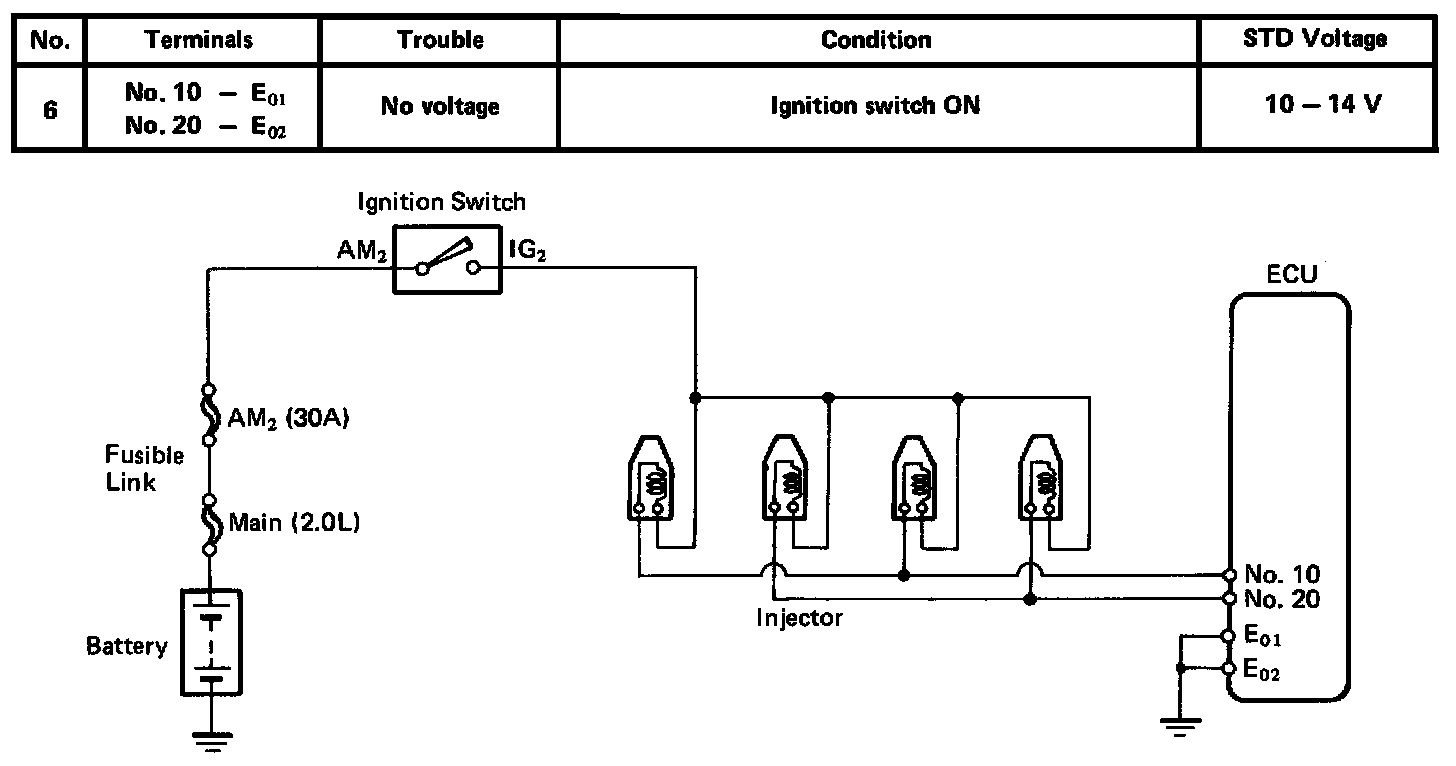

Wiring Diagram / Condition
