Chart 4 Water Temperature Sensor
Chart 4 Water Temperature Sensor
# 4.
Water Temperature Sensor

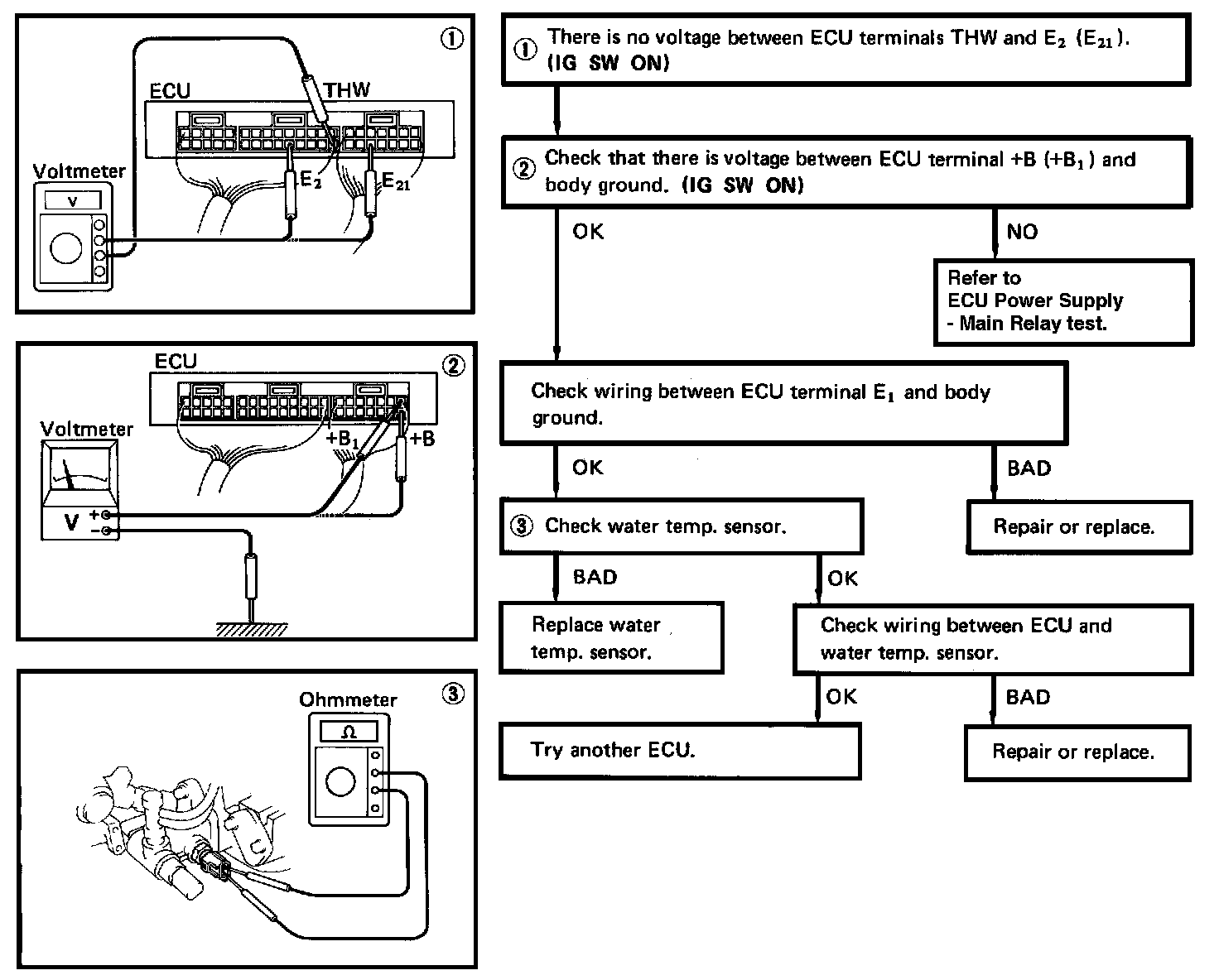

# 4. Water Temperature Sensor:
Water Temperature Sensor
# 4. Water Temperature Sensor:

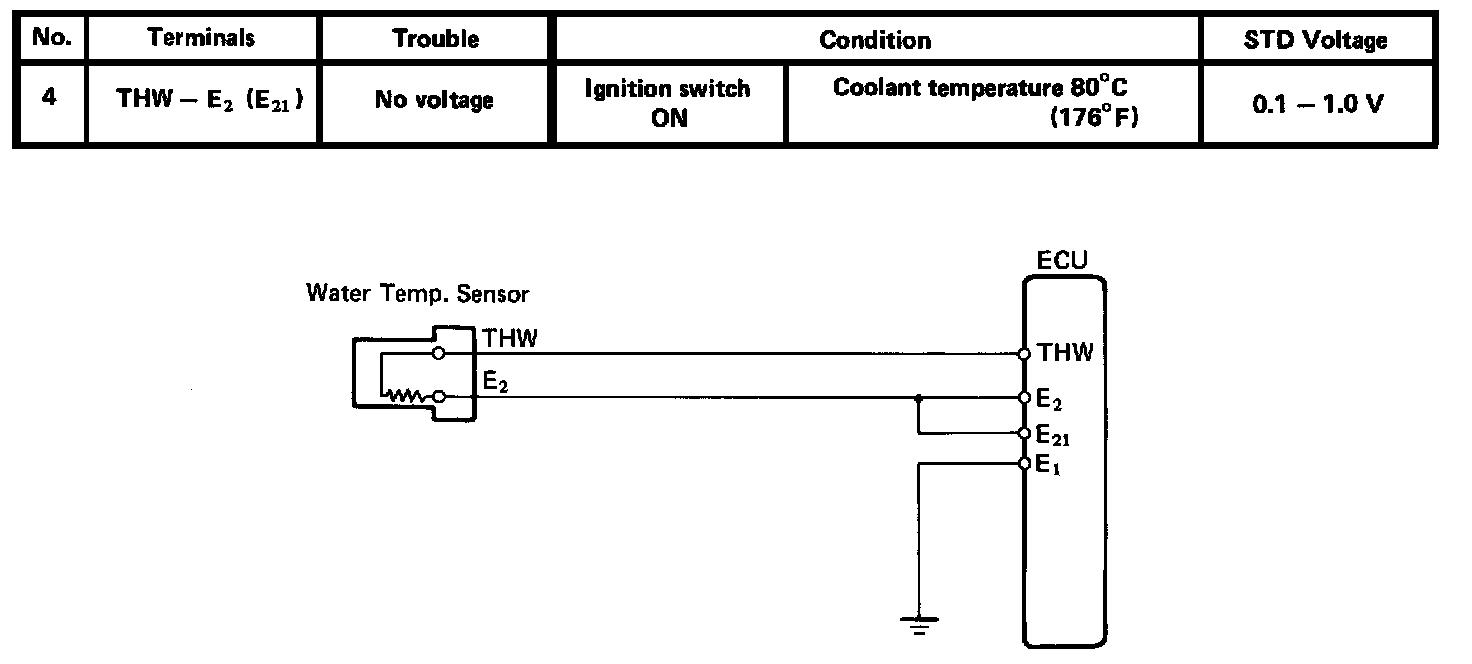

Wiring Diagram / Condition
