Chart 3 Air Flow Meter / Air Temperature Sensor

# 3. Air Flow Meter / Air Temperature Sensor

# 2. Throttle Position Sensor (Vc - E2 [E21):

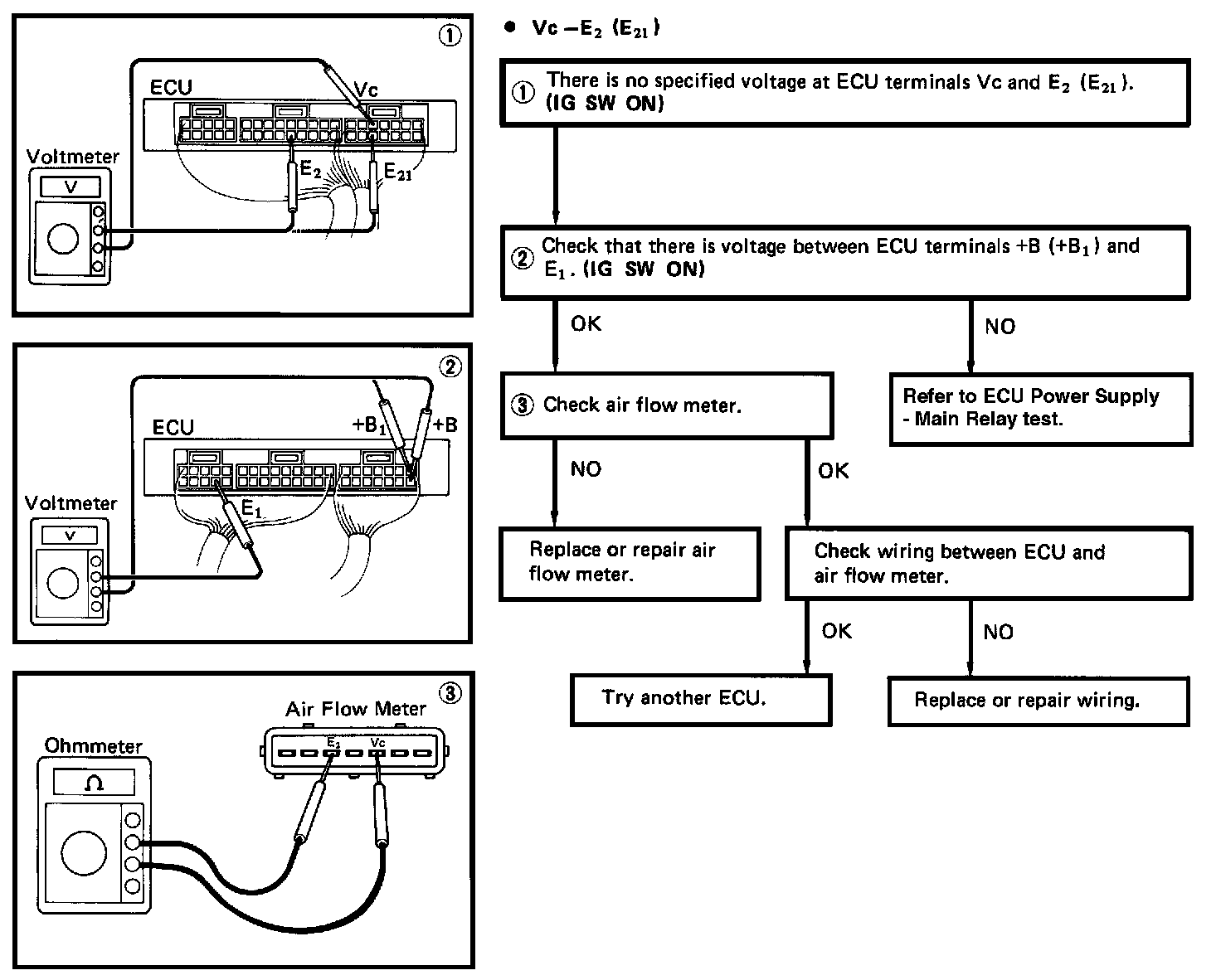

Air Flow Meter (Vc - E2 [E21])

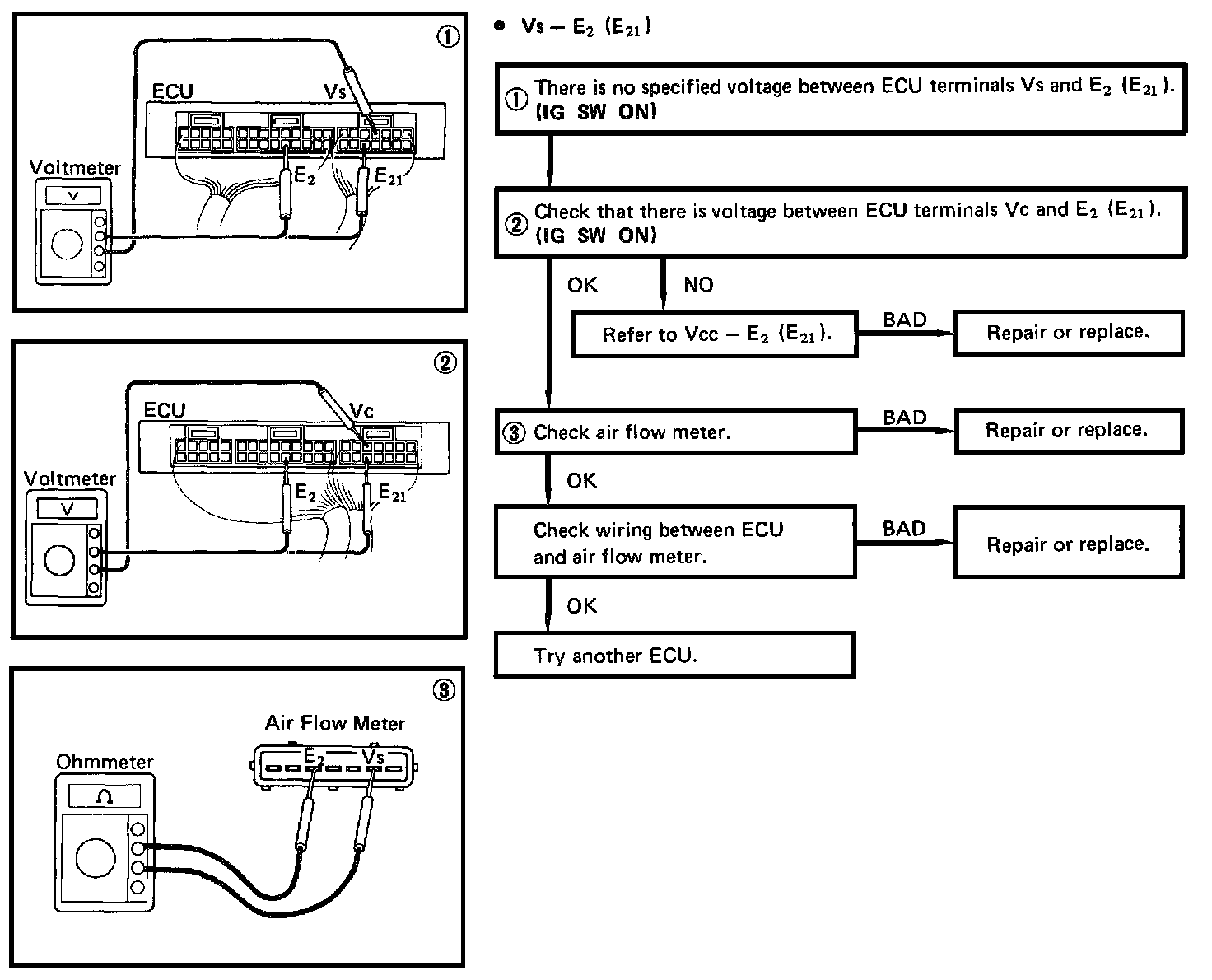

# 3. Air Flow Meter (Vs - E2 [E21]):

Air Temperature Sensor (Vs - E2 [E21])

# 3. Air Temperature Sensor (THA - E2 [E21]):

Air Temperature Sensor (THA - E2 [E21])

# 2. Throttle Position Sensor (Vc, Vs, THA - E2 [E21]):

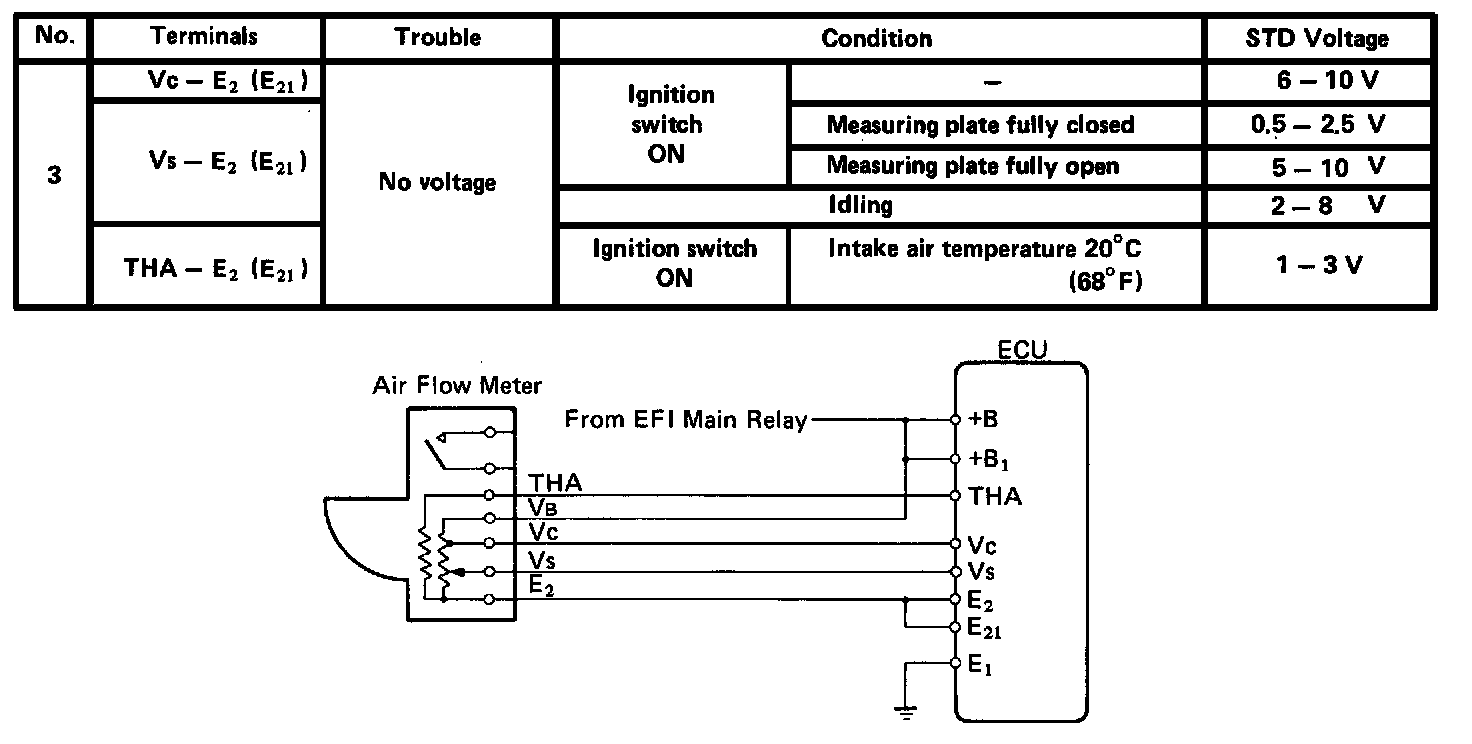

Wiring Diagram / Condition
