Chart 2 Throttle Position Sensor

# 2. Throttle Position Sensor

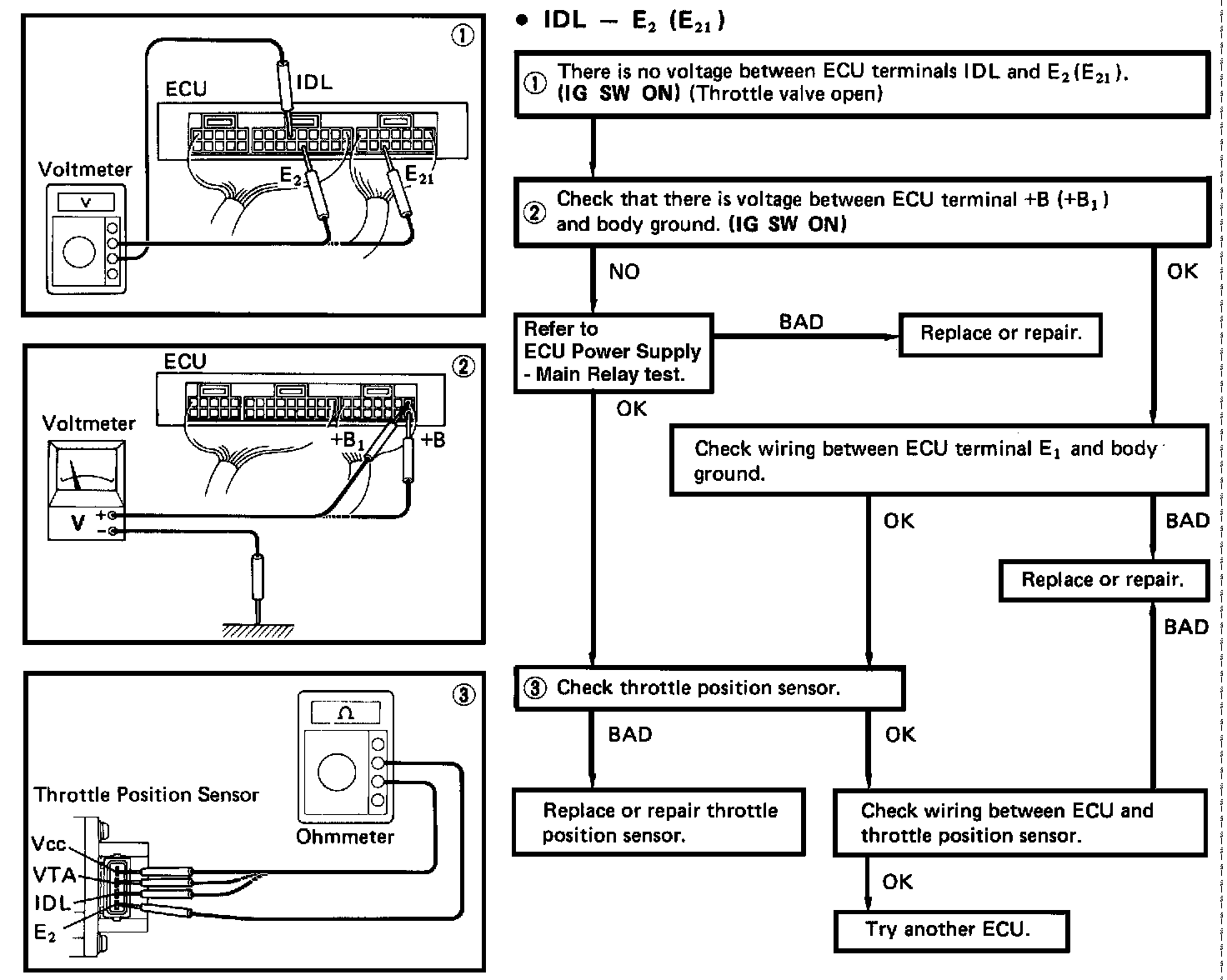

# 2. Throttle Position Sensor (IDL - E2 [E21]):

Throttle Position Sensor (IDL - E2 [E21])

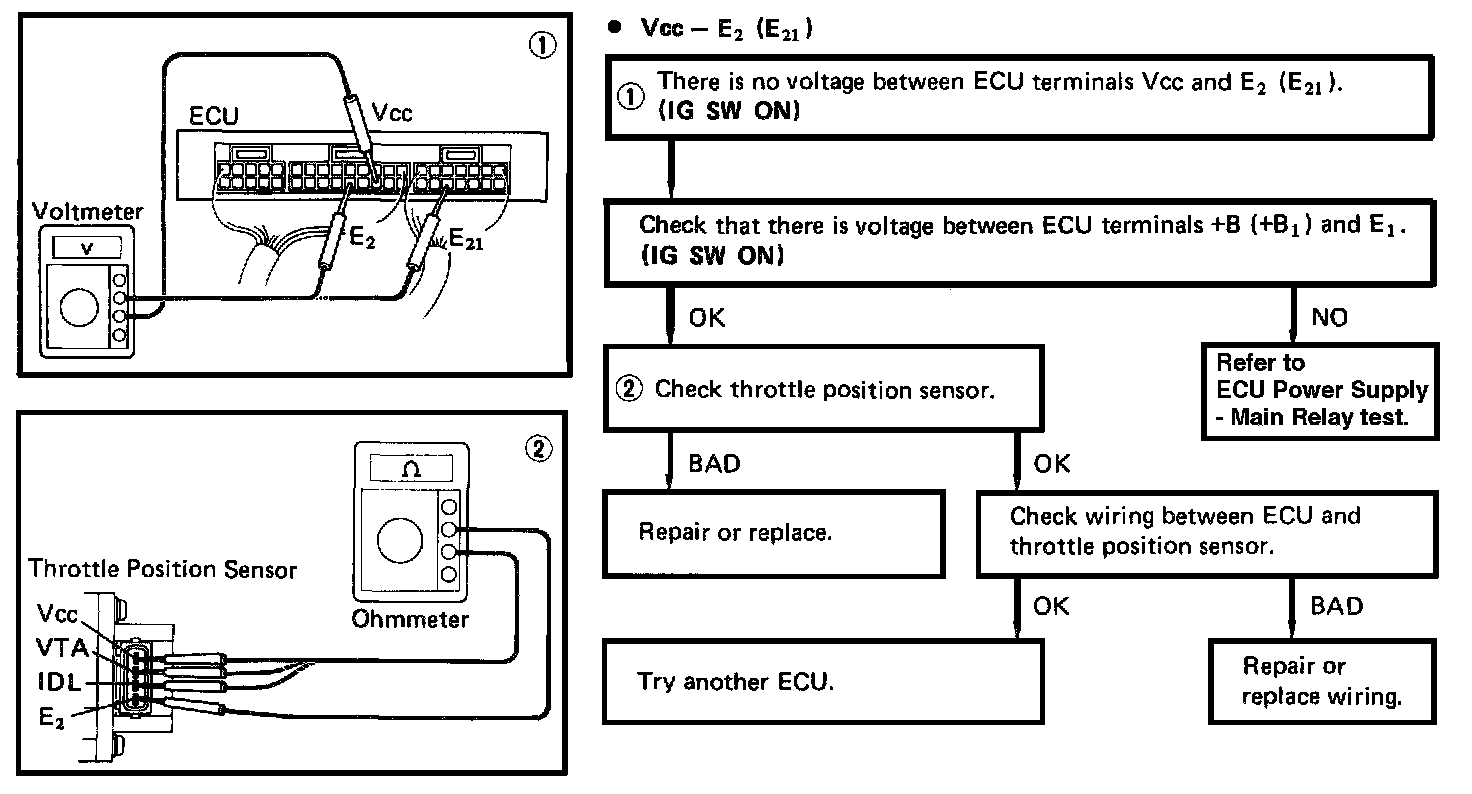

# 2. Throttle Position Sensor (Vcc - E2 [E21]):

Throttle Position Sensor (Vcc - E2 [E21])

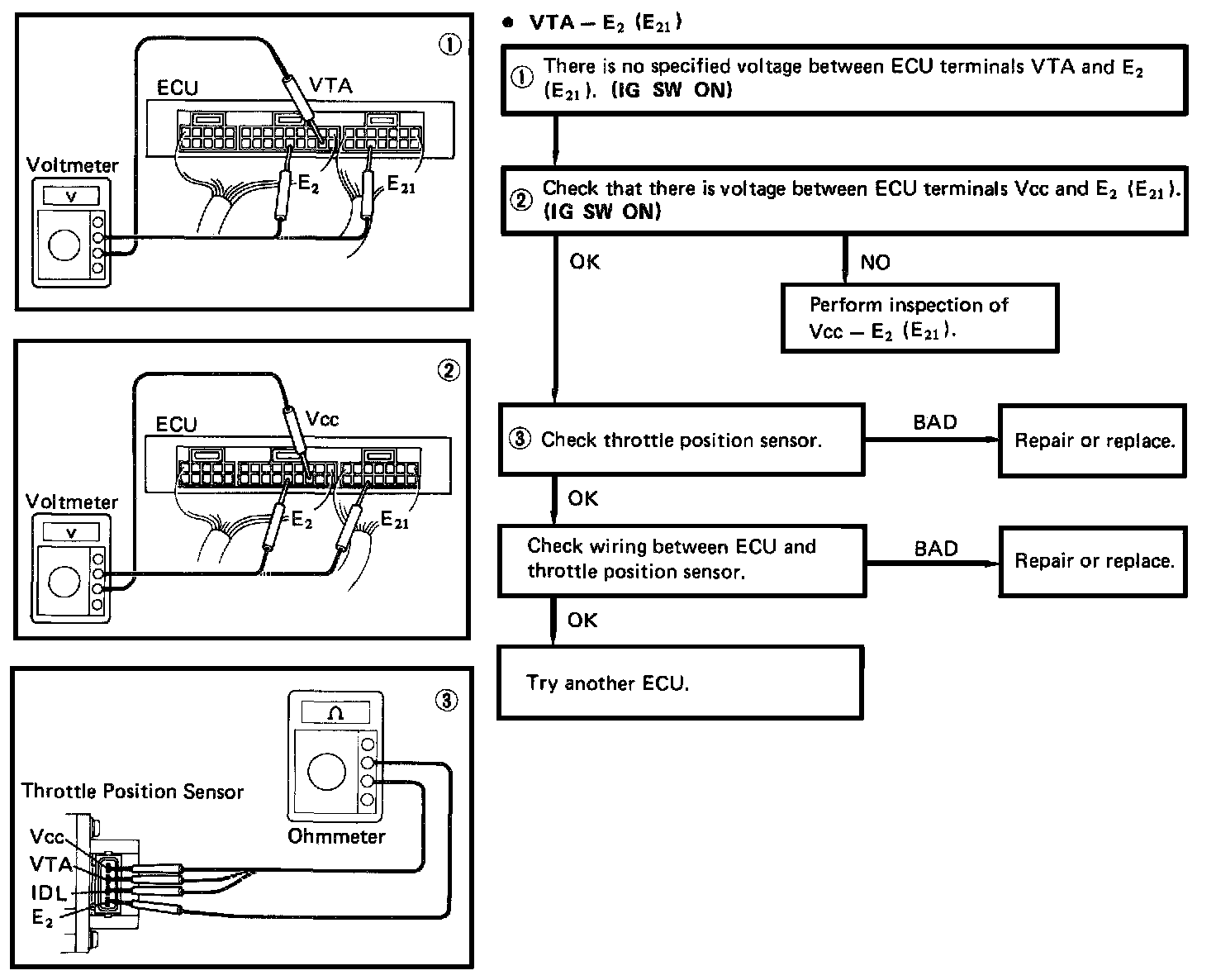

# 2. Throttle Position Sensor (VTA - E2 [E21):

Throttle Position Sensor (VTA - E2 [E21])

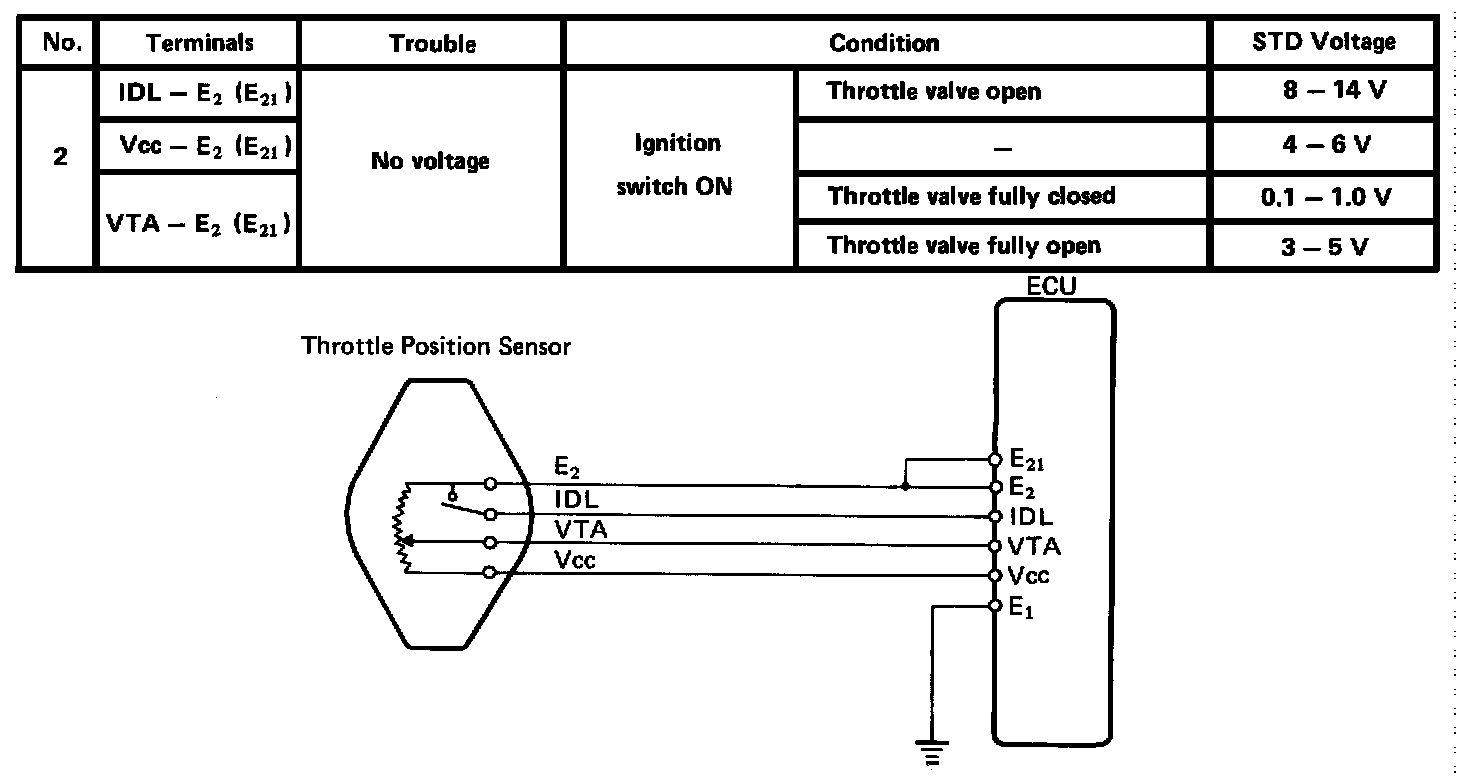

# 2. Throttle Position Sensor:

Wiring Diagram / Condition
