Chart 10 Stop Light Switch
Chart 10 Stop Light Switch
# 10.
Stop Light Switch
# 10. Stop Light Switch:
Stop Light Switch
# 10. Stop Light Switch:

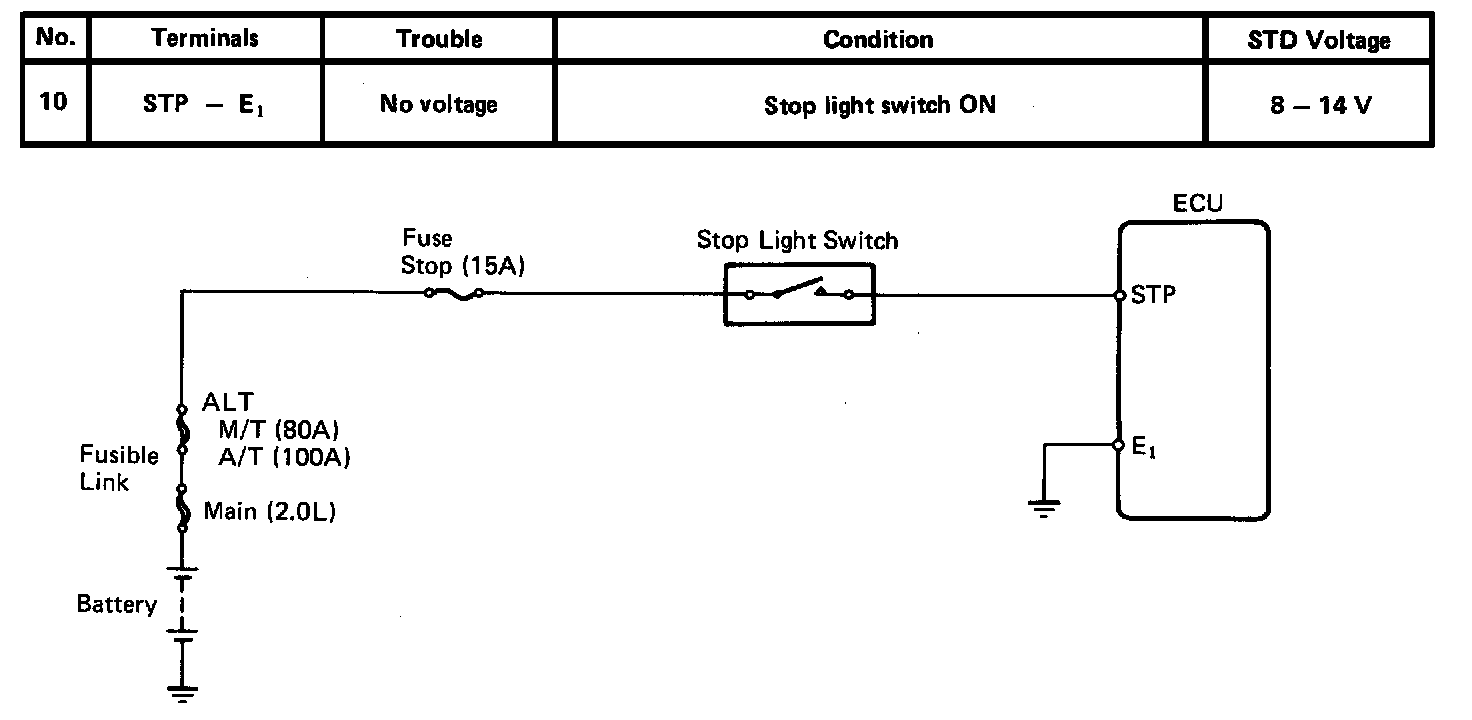

Wiring Diagram / Condition
