Standard Values of ECM Terminals
>>
4WD Automatic Transmission
4WD Automatic Transmission

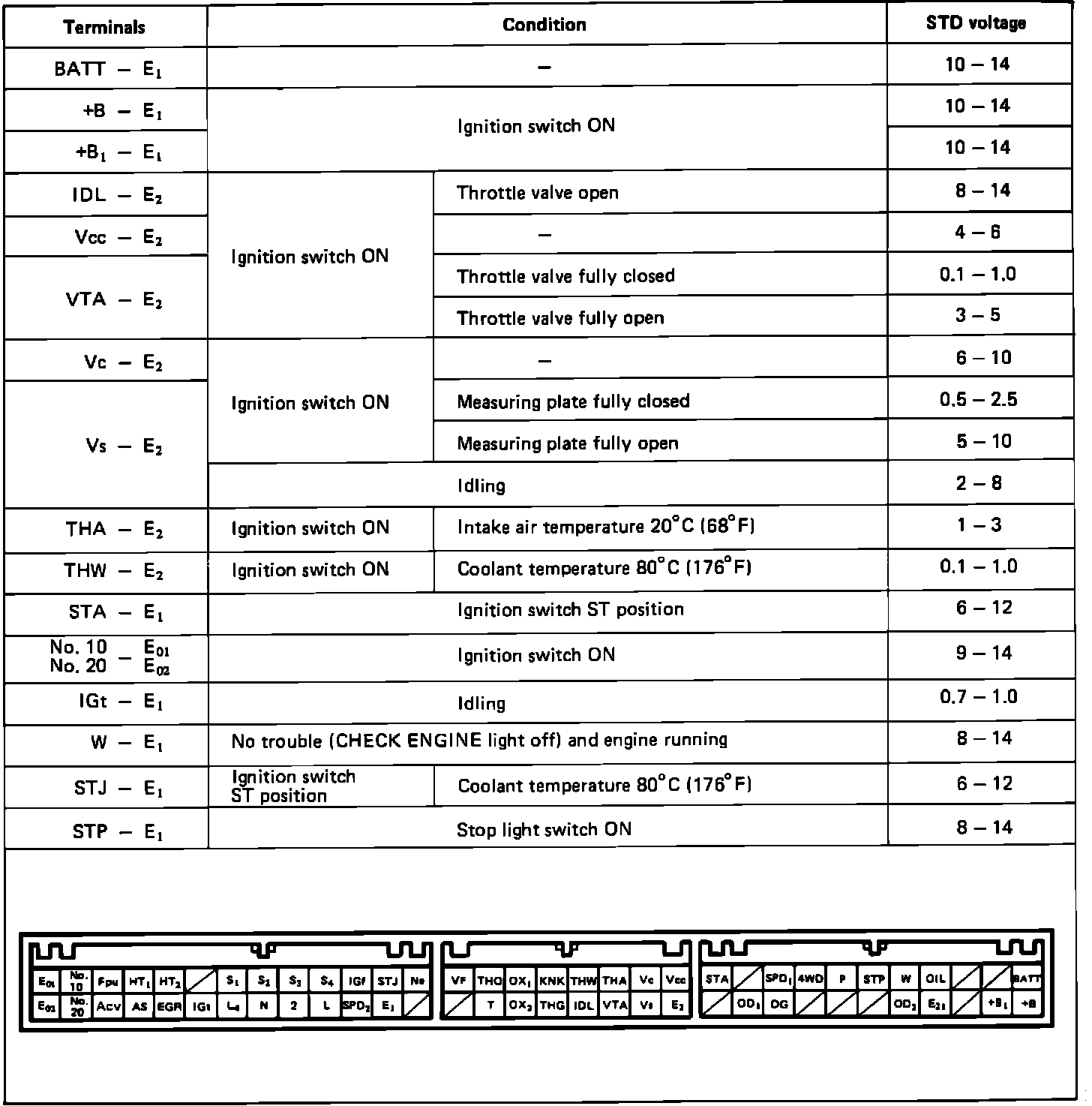

ECU Pin-Out Voltages (4WD A/T):
