Chart 19 Cold Start Injector/Injector Time Switch
Chart 19 Cold Start Injector/Injector Time Switch

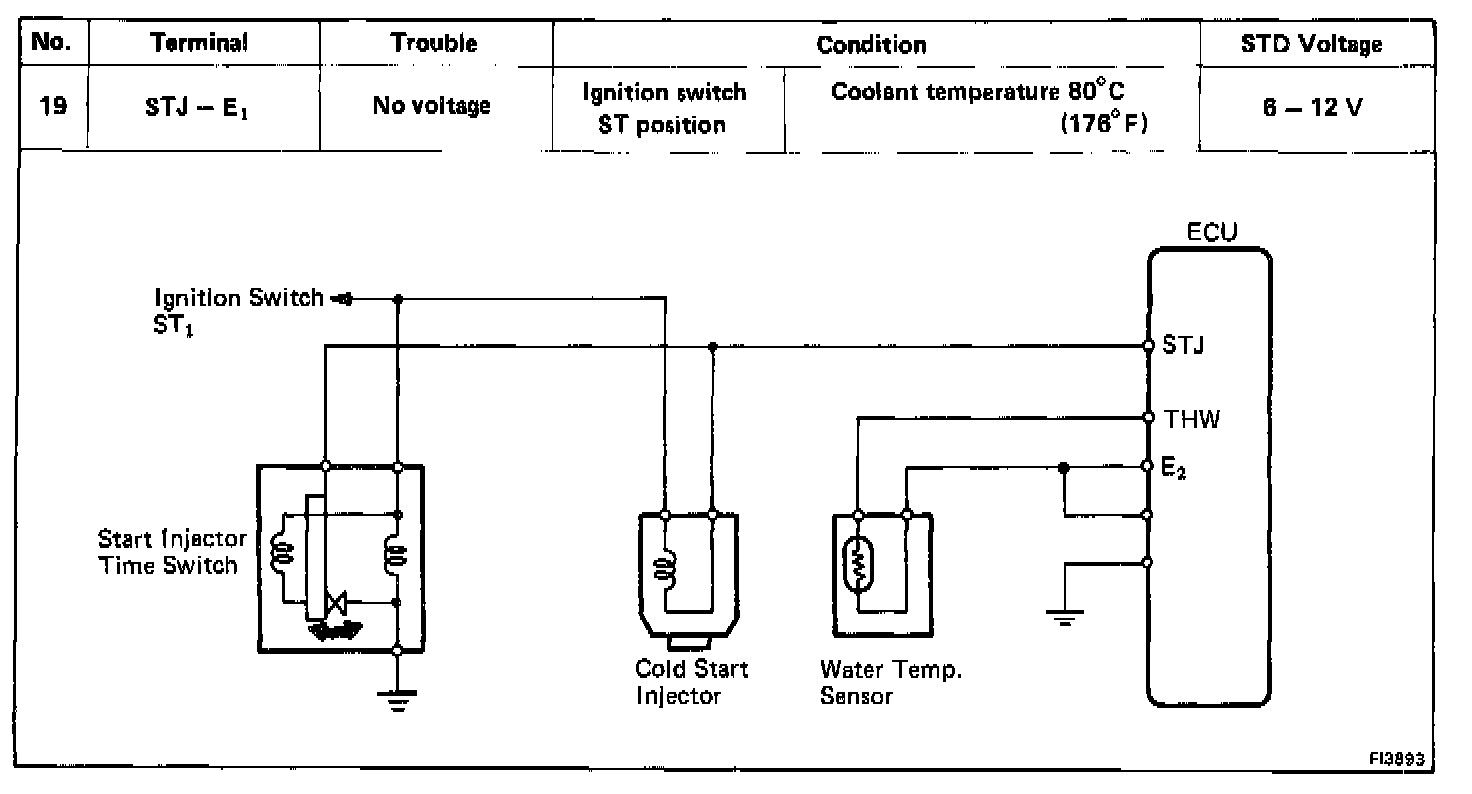

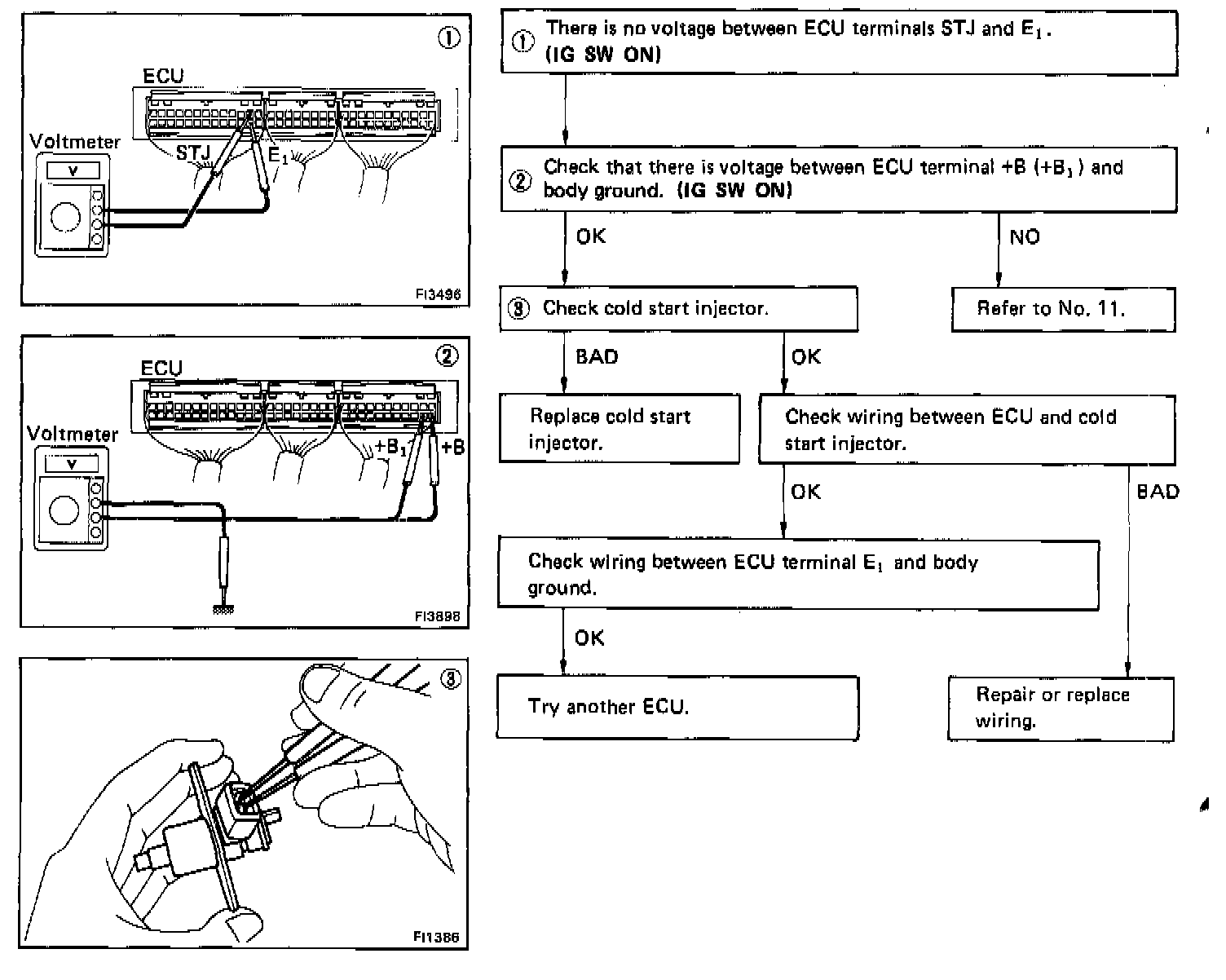

Chart No. 19 -
Cold start injector
/injector time switch
