Toyota Truck
>>
1990
>>
4 Runner 4WD L4-144.4 2366cc 2.4L SOHC (22R-E)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Circuit Test Charts (For Trouble Code Diagnosis)
>>
4WD Automatic Transmission
>>
Chart 18 Check Engine Warning Light
Chart 18 Check Engine Warning Light

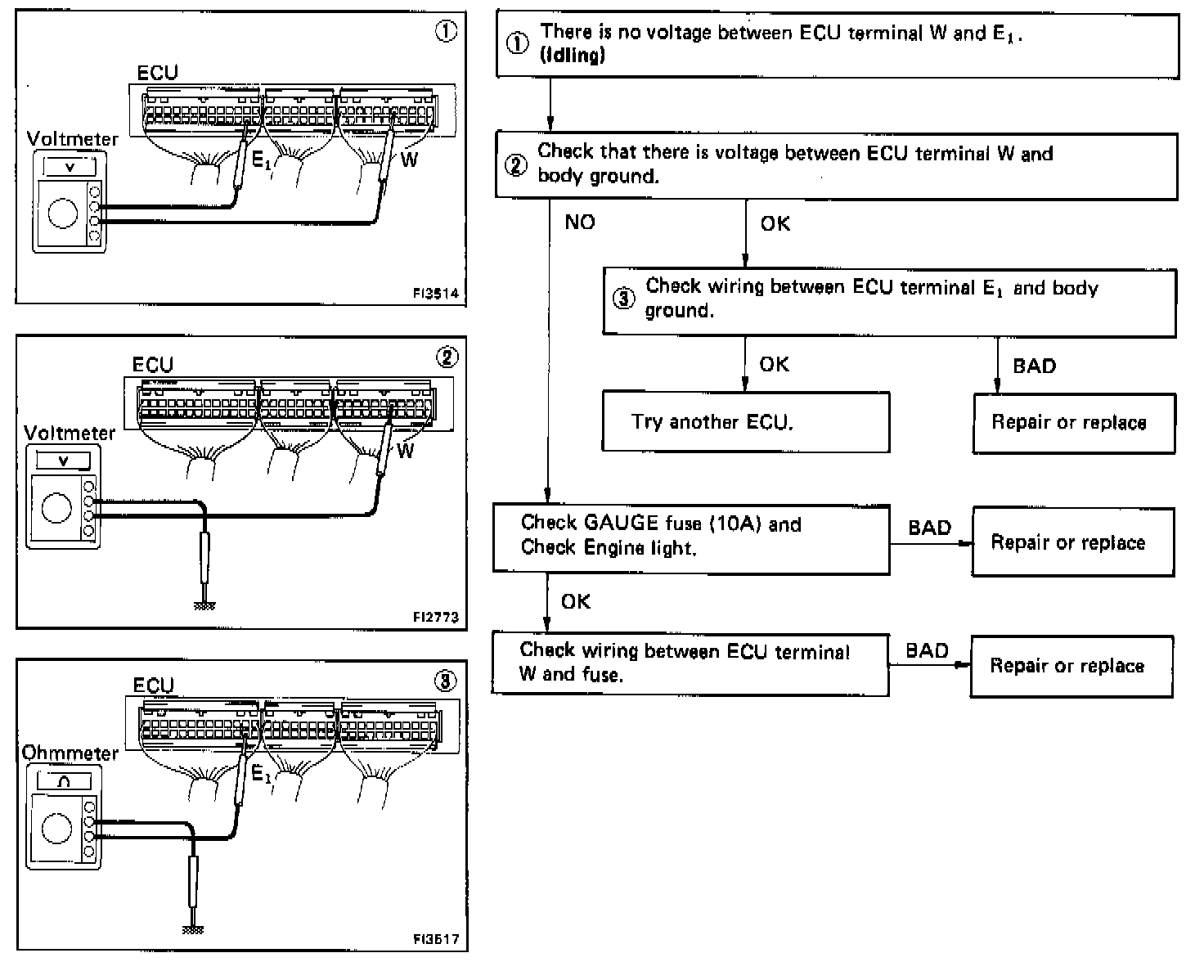

Chart No. 18 - No "Check Engine" light
