Chart 14 Water Temperature Sensor
Chart 14 Water Temperature Sensor

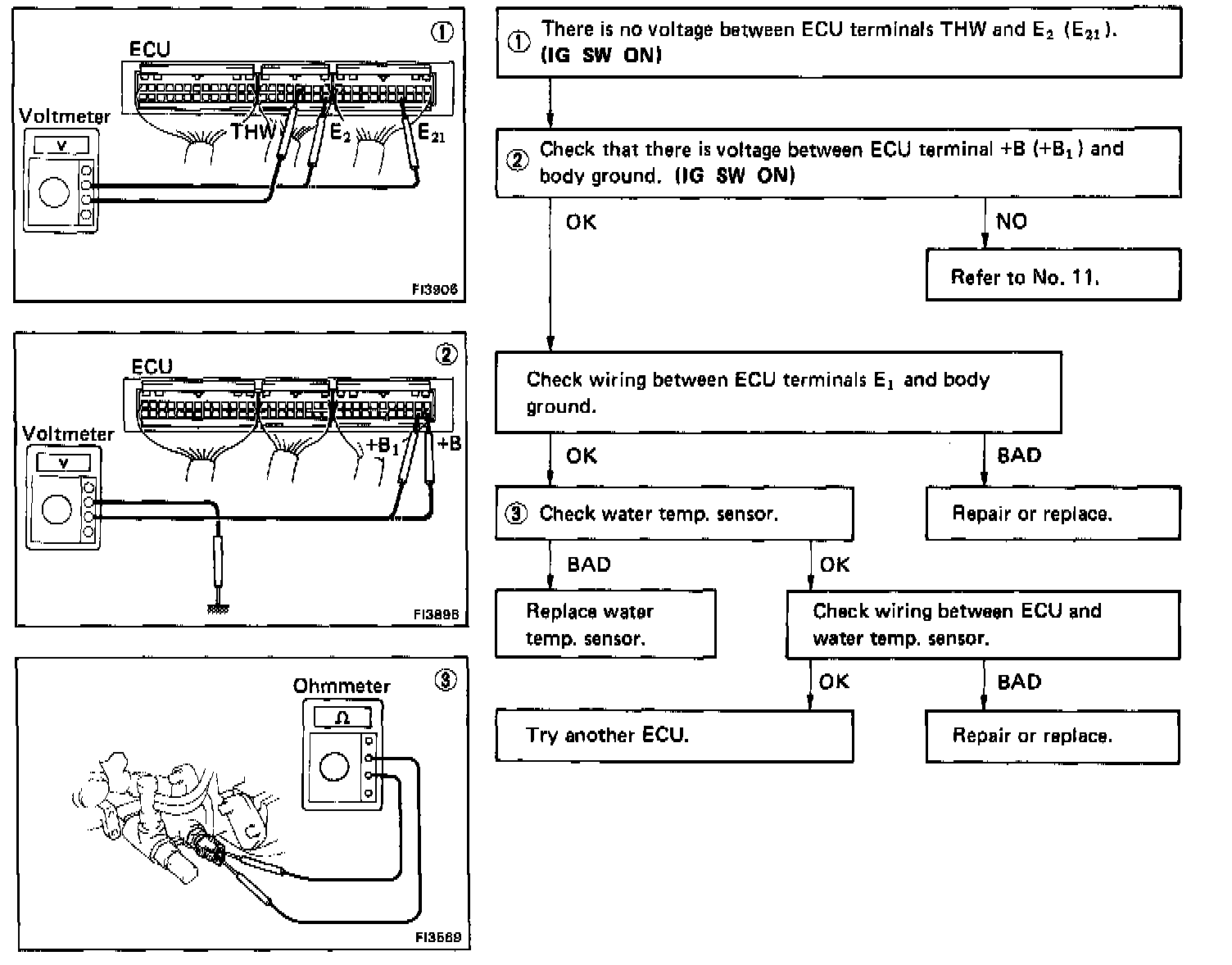

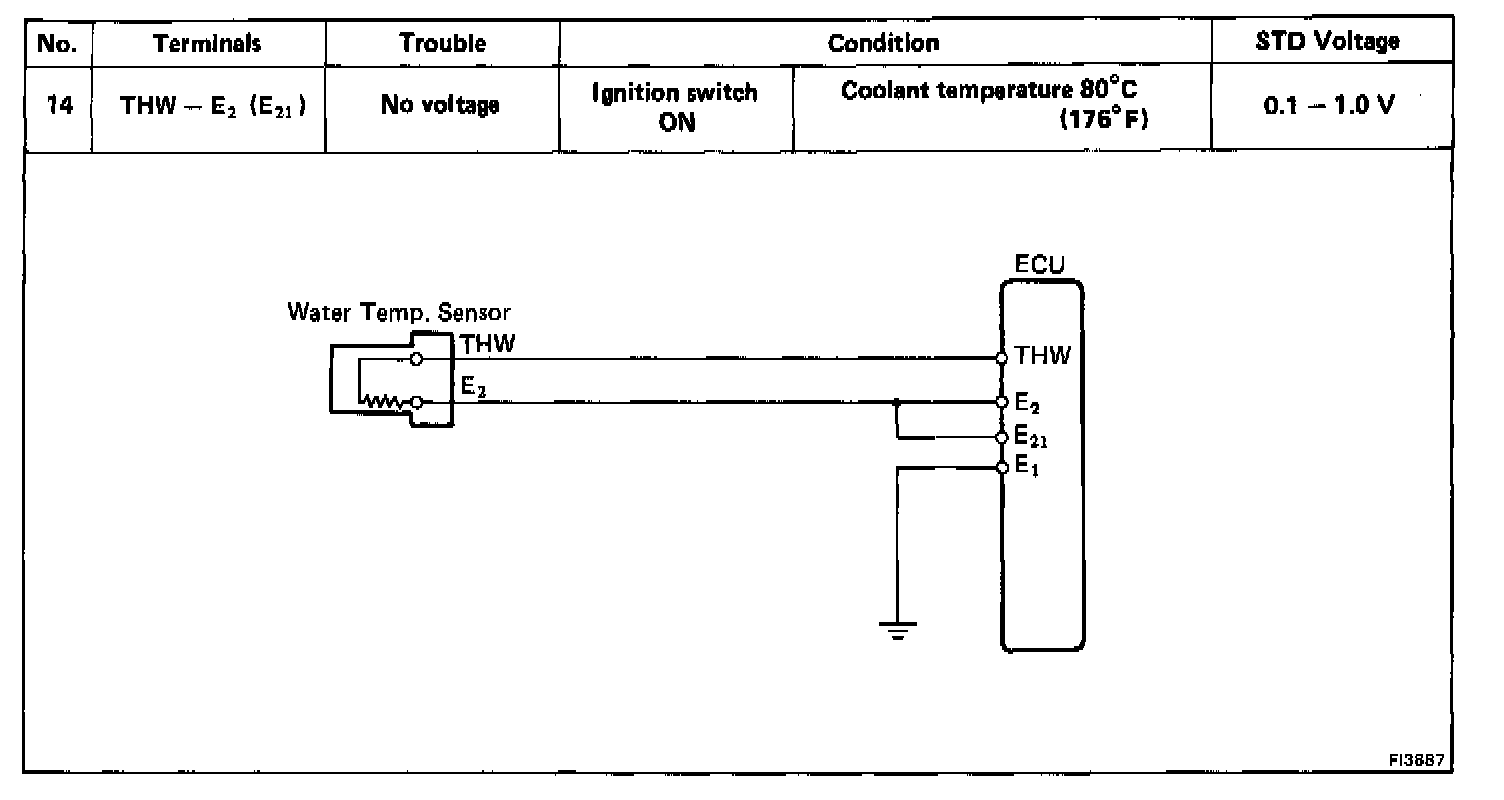

Chart No. 14 - Water temperature sensor
