Chart 13 Air Flow Meter / Air Temperature Sensor
Chart 13 Air Flow Meter / Air Temperature Sensor

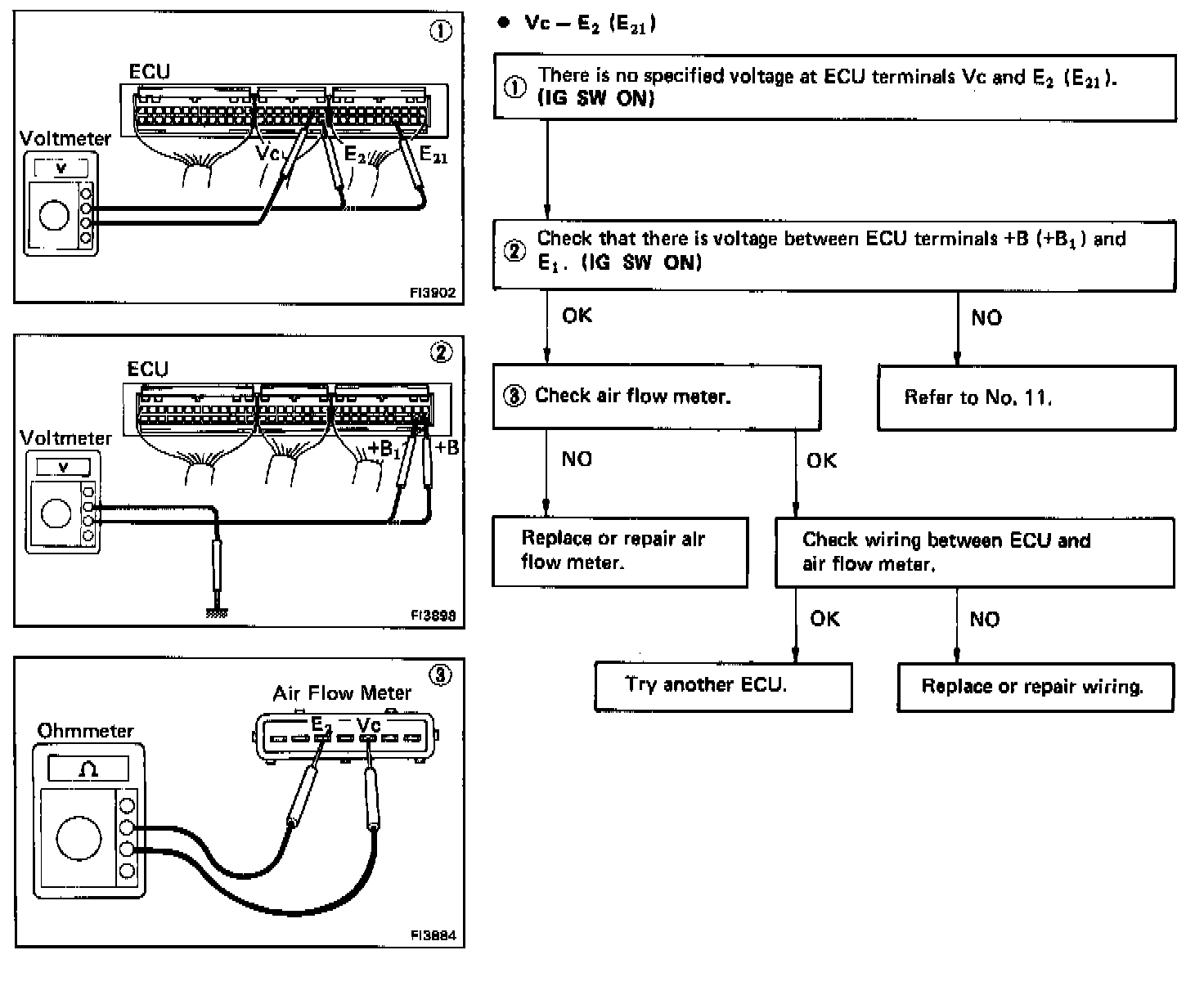

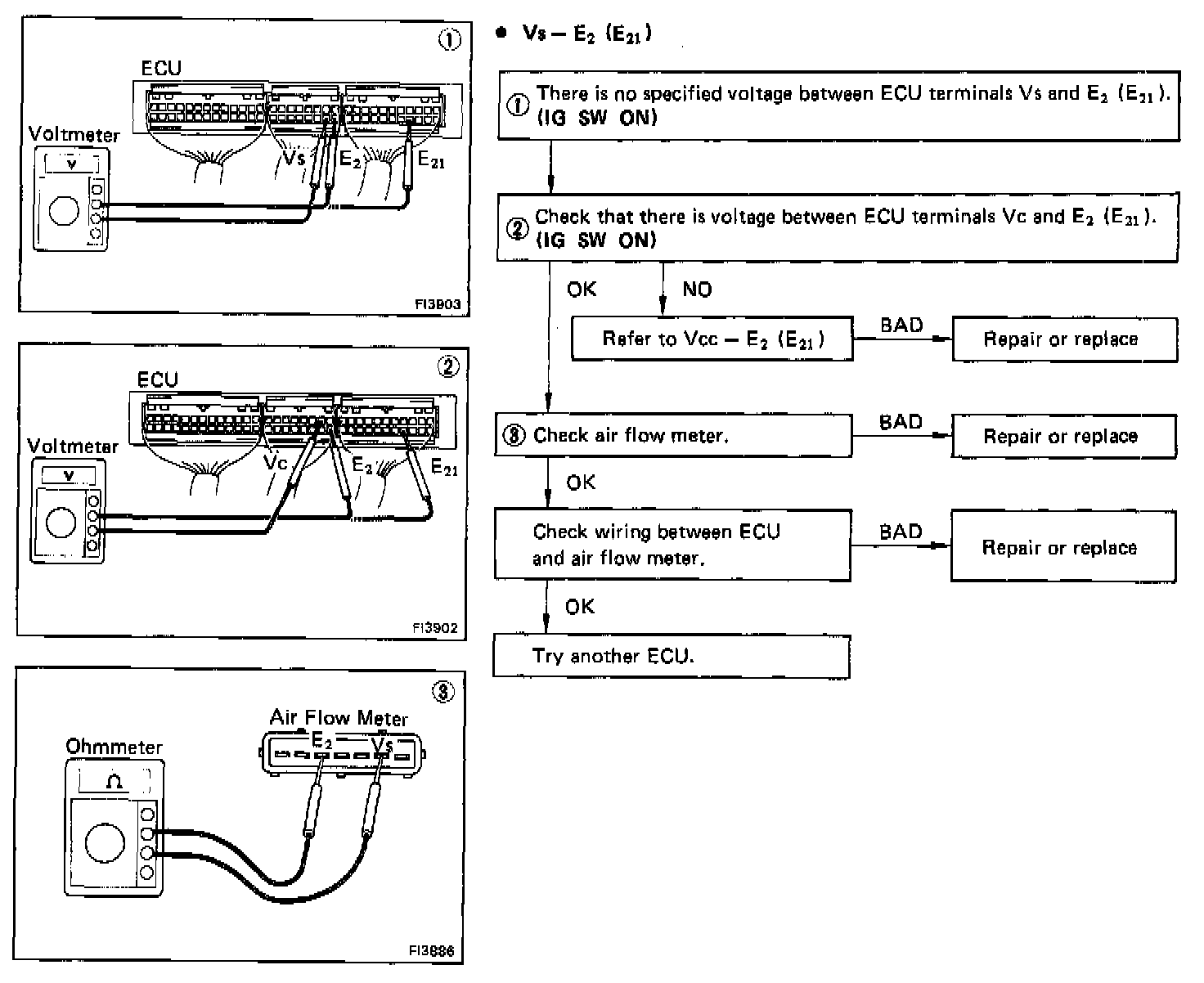

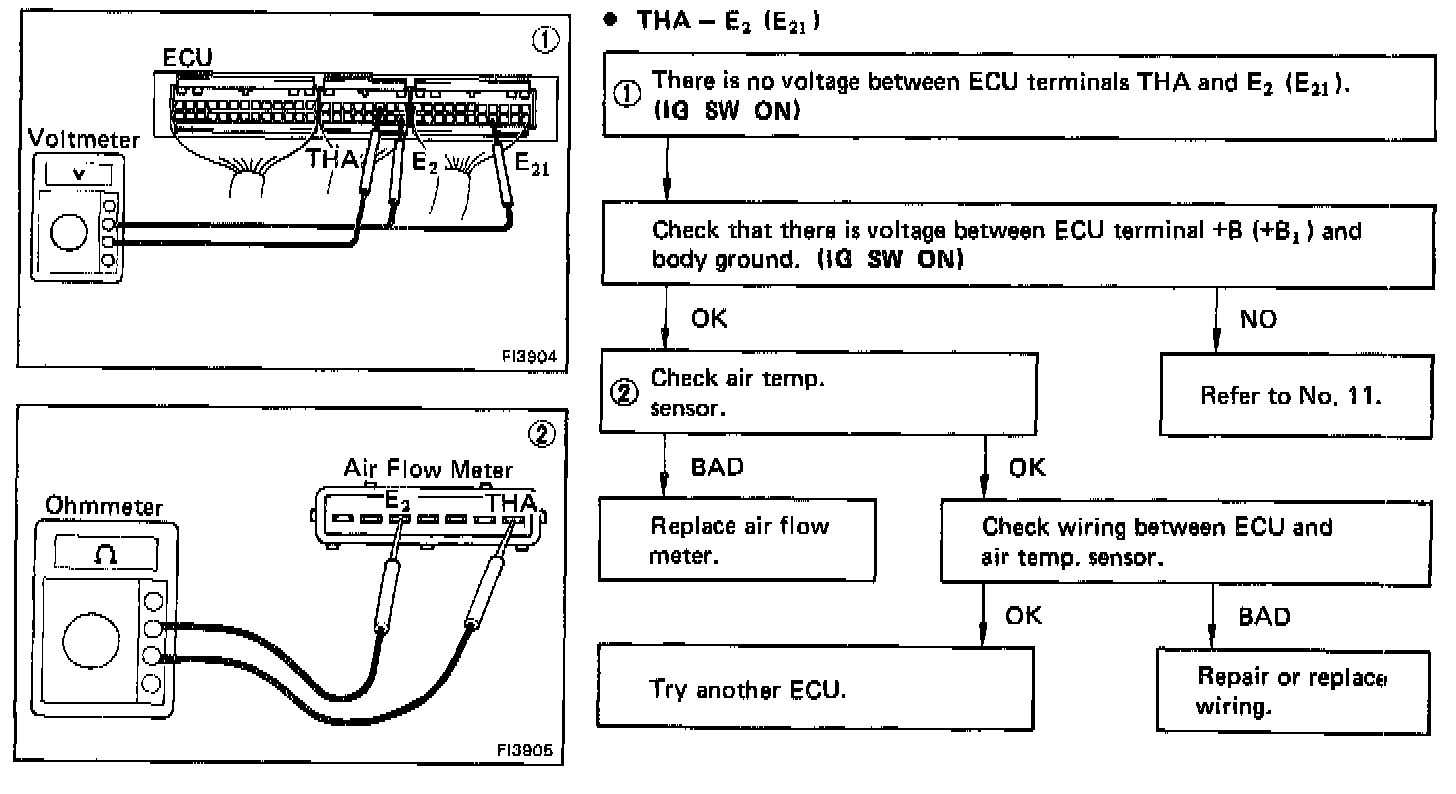

Chart No. 13 - Air flow meter
